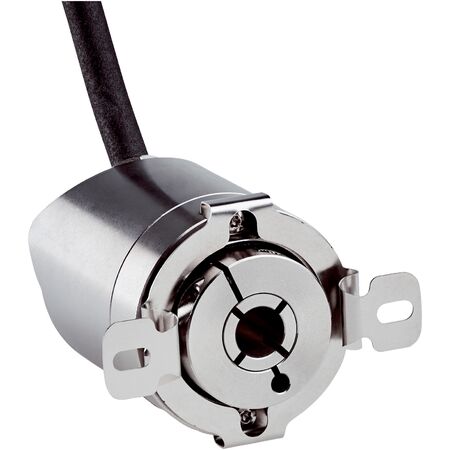

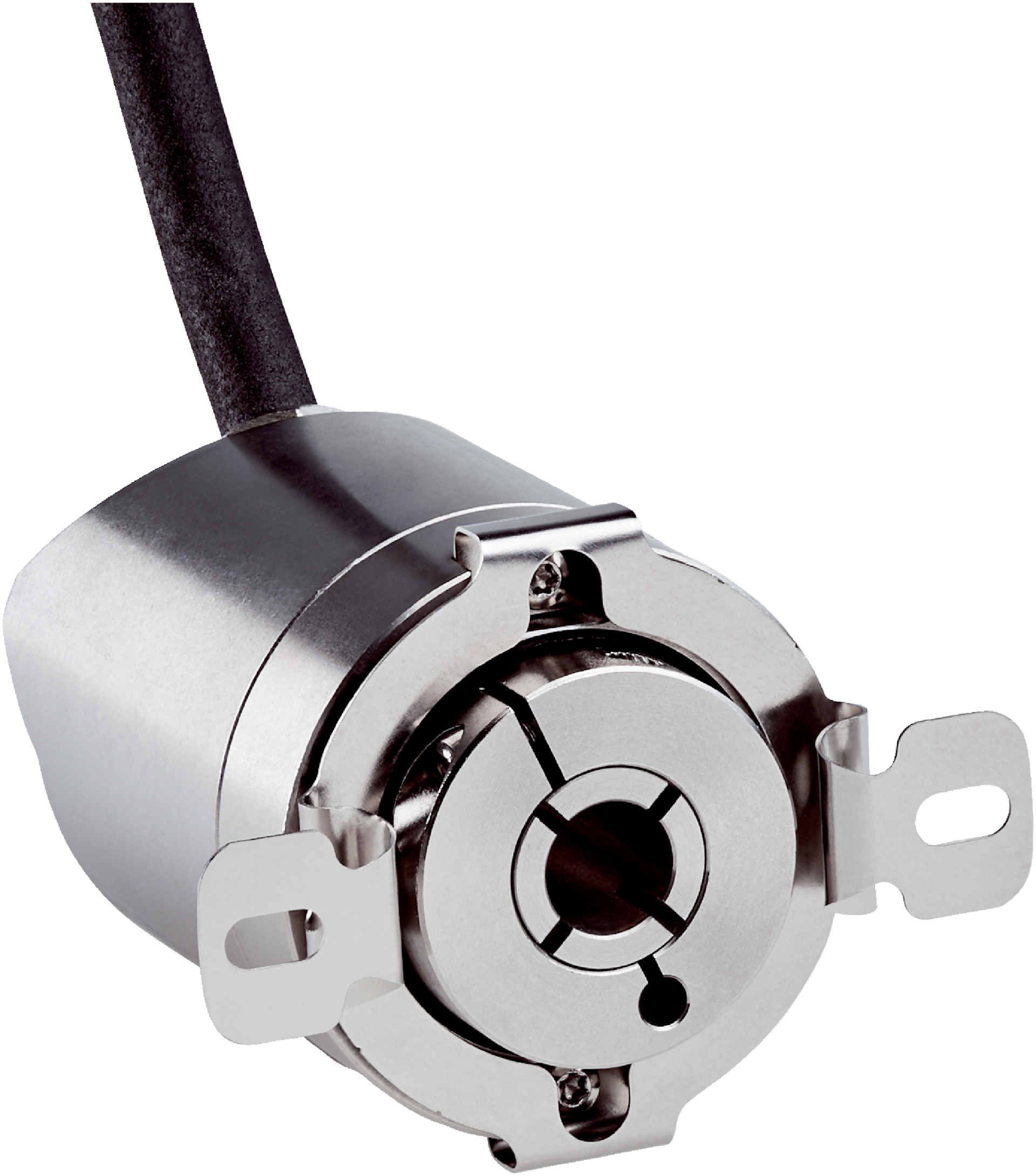

Rotary Encoder AHM36I-BBQK014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The AHM36I-BBQK014x12 rotary encoder delivers high precision with 16,384 steps per revolution and an IO-Link V1.1 communication interface, making it ideal for industrial automation and robotics. Built for durability with an IP67 and IP69K rating, it operates in extreme temperatures from -40 °C to +85 °C, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection type: 4-wire cable, 1.5 m
- Mechanical design: Blind hollow shaft, 8 mm diameter with front clamp
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40 °C to +85 °C
- Low start-up and operating torque ≤ 1 Ncm
- Advanced diagnostics and status information via LED
- Reverse polarity protection and low power consumption ≤ 1.5 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution rotary feedback
- Machine tools and manufacturing equipment
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency
- IP67 and IP69K ratings ensure long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-BBQK014x12 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
