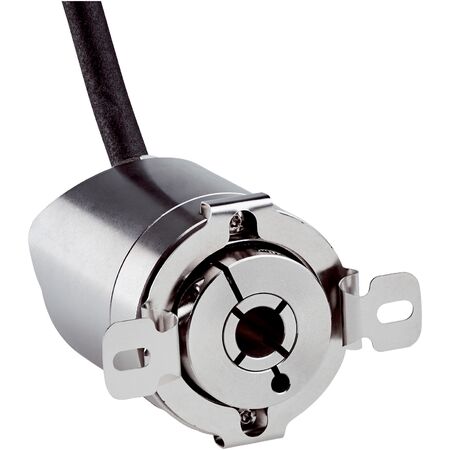

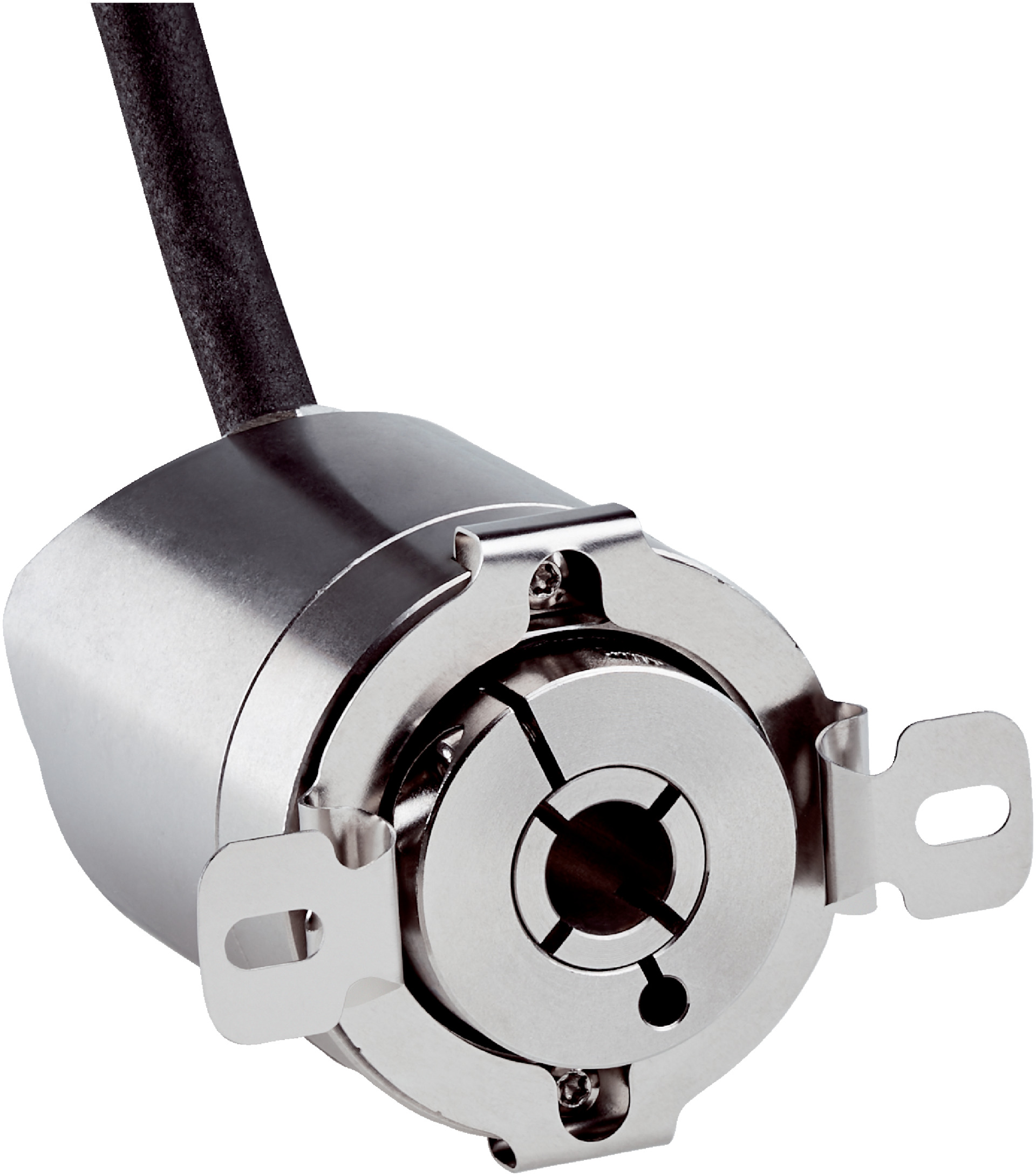

Rotary Encoder AHM36I-BBQM014x12 | High Resolution 16,384 Steps | IP67 & IP69K Rated | by SICK
The AHM36I-BBQM014x12 rotary encoder delivers high precision with 16,384 steps per revolution and a robust stainless steel design. Ideal for industrial automation and robotics, it features an IO-Link V1.1 communication interface for comprehensive diagnostics. With an operating temperature range of -40°C to +85°C and IP67/IP69K ratings, this encoder is built to withstand harsh environments while ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed, errors and warnings
- Connection type: 4-wire cable, 5 m length
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 8 mm diameter
- Shaft and housing material: Stainless steel 1.4305
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40°C to +85°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft materials
- IP67 and IP69K rated for harsh environments
- Wide operating temperature range from -40°C to +85°C
- Low start-up and operating torque (≤ 1 Ncm)
- Comprehensive diagnostics and status information via IO-Link
- Reverse polarity protection and 4-wire universal cable connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary feedback
- Machine tools and manufacturing equipment
- Process control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- IP67 and IP69K ratings ensure protection against environmental contaminants, reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-BBQM014x12 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
