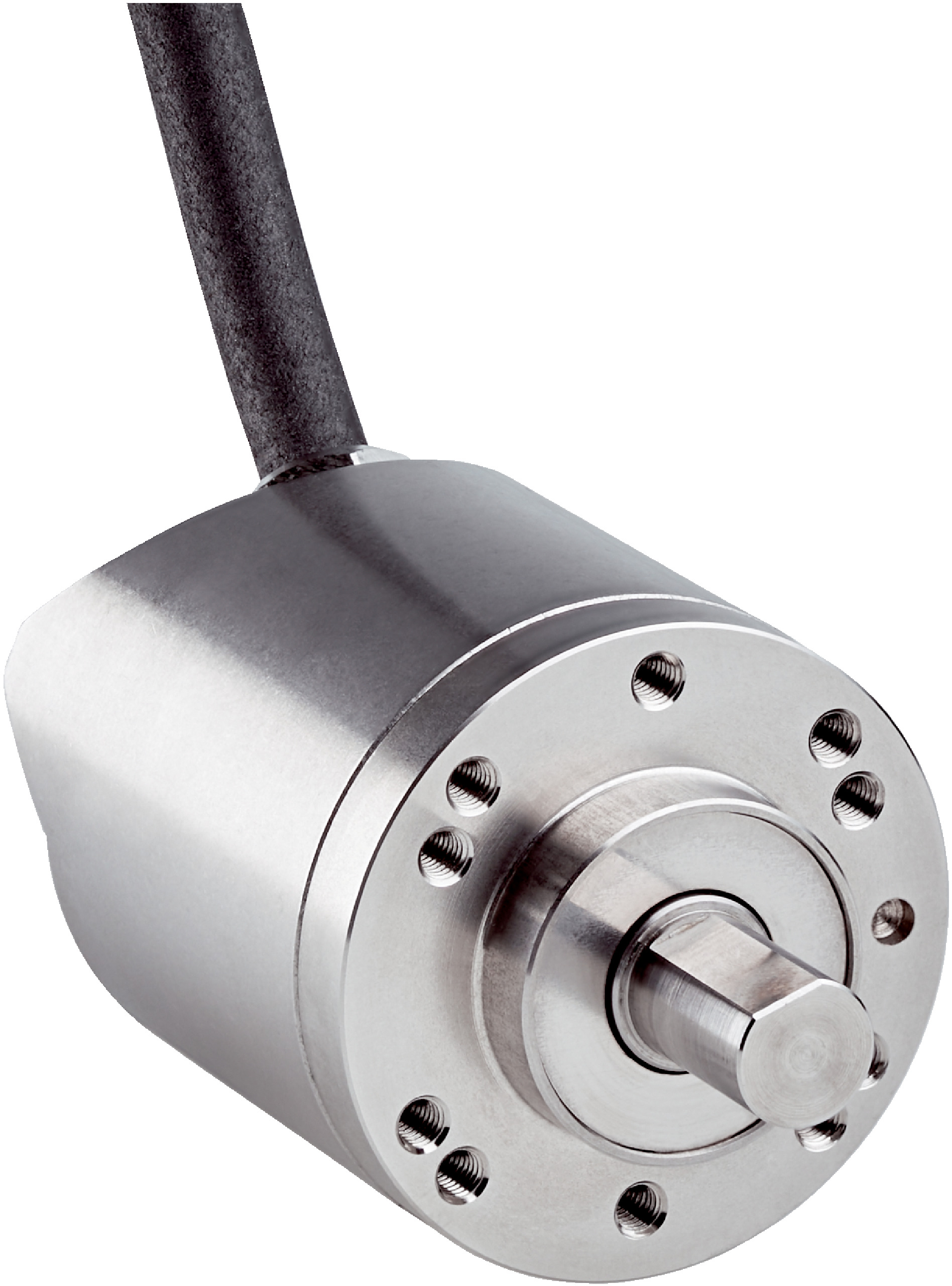

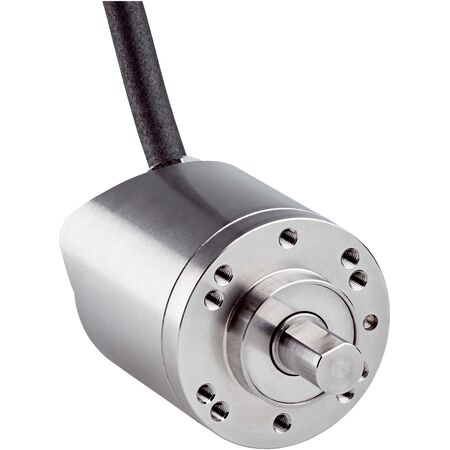

Rotary Encoder AHM36I-S3CJ014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-S3CJ014x12 Rotary Encoder delivers high precision with 16,384 steps per revolution and a robust IP67/IP69K rated design, making it perfect for industrial automation and robotics. With a wide operating temperature range of -40 °C to +85 °C and low power consumption, this encoder ensures reliable performance in demanding environments, ideal for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, face mount flange, shaft diameter 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +85 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Connection: 5-wire cable, 0.5 m length
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low power consumption (≤ 1.5 W) with reverse polarity protection
- High mechanical durability with 3.6 x 10^8 bearing lifetime revolutions
- Wide operating temperature range from –40 °C to +85 °C
- Safety-related mean time to dangerous failure (MTTFD) of 270 years
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary feedback
- Machine tools and manufacturing equipment
- Safety-related motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability minimizes downtime and resource use for maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S3CJ014x12 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
