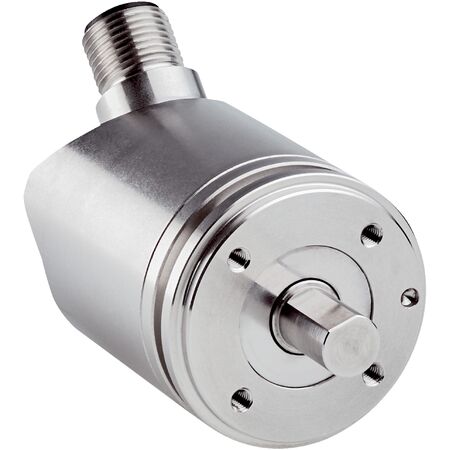

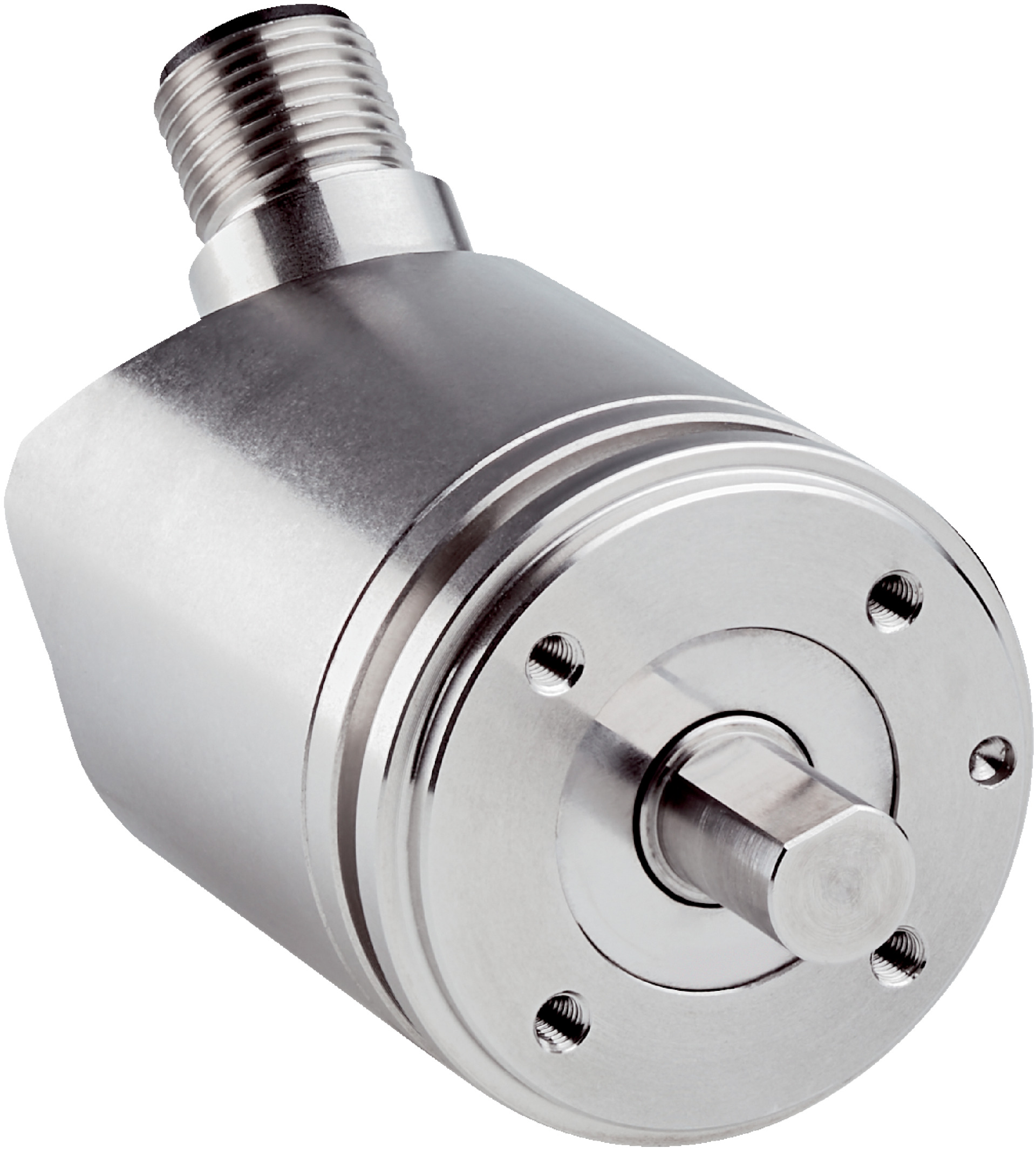

Rotary Encoder AHM36I-SDCC014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The Rotary Encoder AHM36I-SDCC014x12 offers high-resolution feedback with 16,384 steps per revolution, making it ideal for industrial automation and robotics. Built for durability with a solid stainless steel shaft and IP67/IP69K ratings, it operates in extreme temperatures from -40°C to +85°C. This encoder ensures precise position and speed measurement, perfect for servo motor feedback systems and machine tool control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Connection: Male M12 5-pin connector
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm, length 12 mm
- Materials: Stainless steel 1.4305 for shaft, flange, and housing
- Start up torque: 1 Ncm at +20°C
- Operating torque: < 1 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Ambient conditions: IP67 and IP69K rated, -40°C to +85°C operating temperature
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
