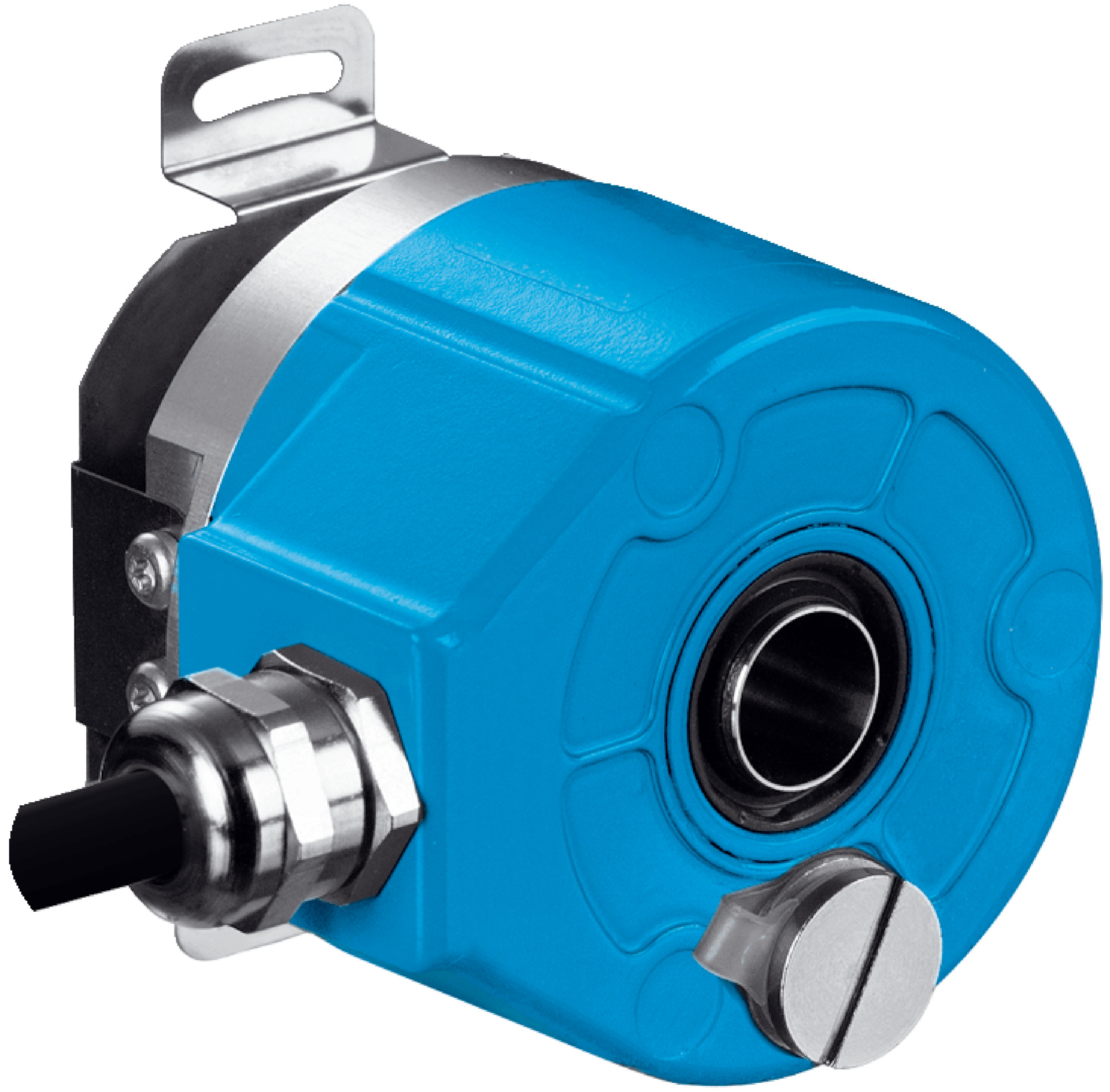

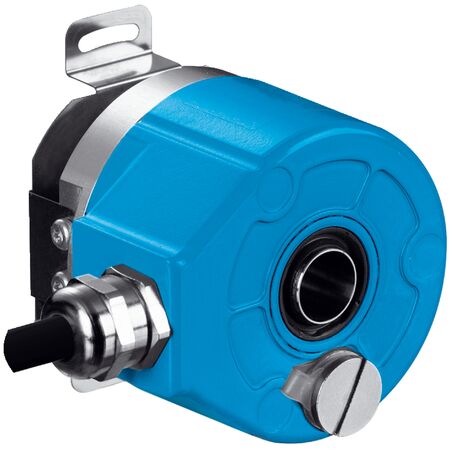

Rotary Encoder ARS60 | 1,024 Steps per Revolution | Hollow Shaft 12mm | IP64 Rated | by SICK
The Rotary Encoder ARS60 is engineered for precision in industrial automation, featuring 1,024 steps per revolution and a robust hollow shaft design with a 12mm diameter. With an IP64 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for robotics and machine tools that require accurate angular feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60 | 1,024 Steps per Revolution | Hollow Shaft 12mm | IP64 Rated | by SICK
Brand: SICK
SKU: 1031693
Alternatively Known As: Rotary Encoder ARS60, SICK High Resolution Encoder, Hollow Shaft Encoder 12mm
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 1,024 (10 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005° binary number of steps
- Error limits G: 0.035° (binary number of steps)
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Code sequence parameter adjustable: CW (clockwise) increasing when viewing the clockwise rotating shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 22-wire, radial, 3 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x U_S, Logic L = 0 V to 0.3 x U_S
- Actuation of set button: ≥ 100 ms
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Characteristics of the shaft: Front clamp
- Housing material: Aluminum die cast
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible movement static: ± 0.3 mm (radial), ± 0.5 mm (axial)
- Permissible movement dynamic: ± 0.1 mm (radial), ± 0.2 mm (axial)
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (cable IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C (without package)
- Resistance to shocks: 50 g, 11 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Through hollow shaft design with 12 mm shaft diameter
- Robust aluminum die cast housing
- IP64 rated enclosure for dust and splash protection
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 2.2 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 80 ms
- Parallel data communication interface
- Certified with multiple international conformity declarations including EU, UK, ACMA, cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics requiring accurate angular feedback
- Machine tools and manufacturing equipment
- Safety-related systems requiring reliable encoder data
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 90 mA
- Compliance with RoHS regulations limits hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-HDL01024 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring high precision angular measurement.
