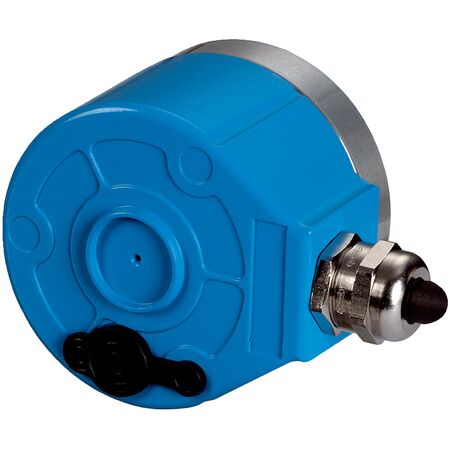

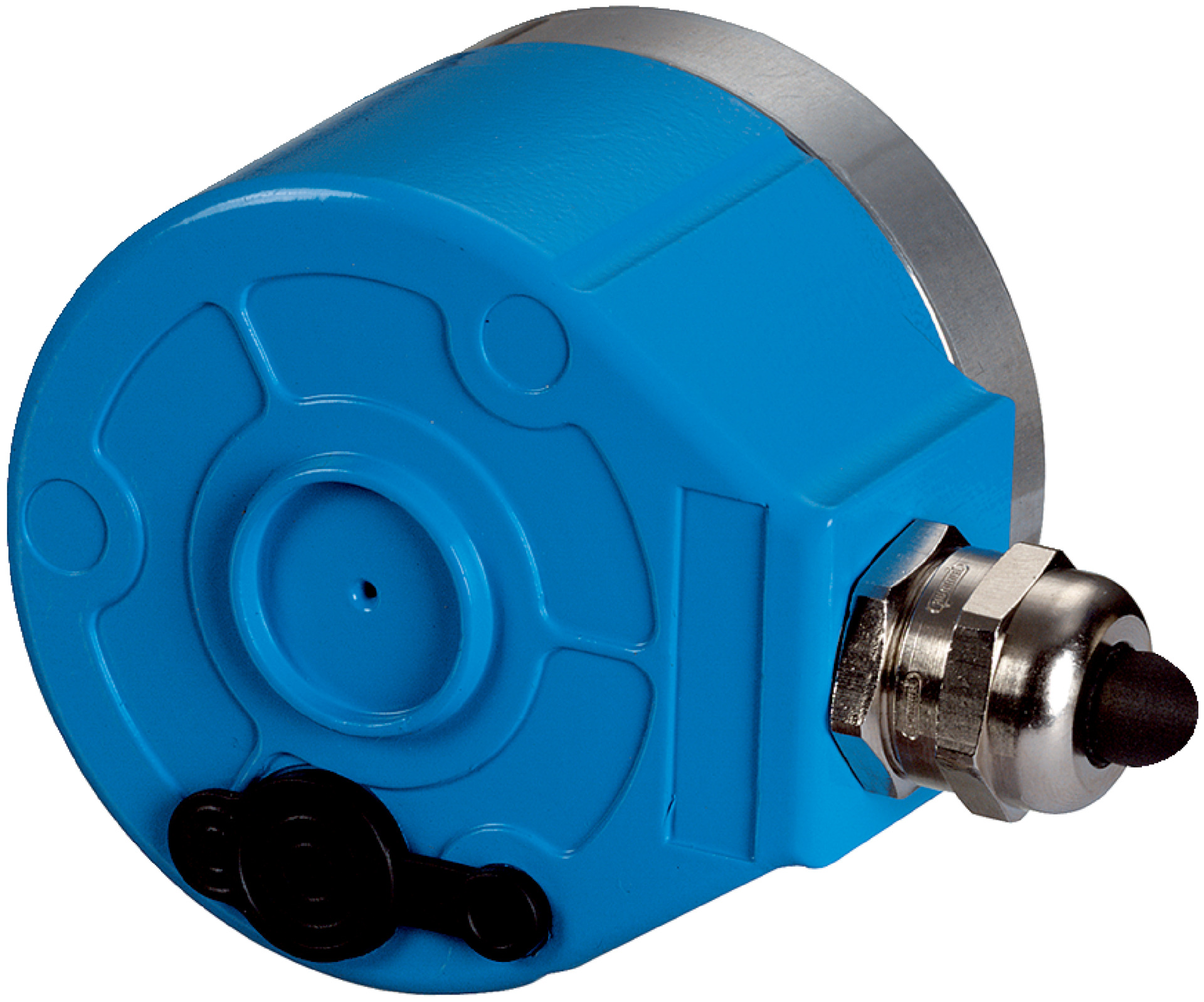

Rotary Encoder ARS60 | 32,767 Steps/Rev | IP66 Rated | SSI Communication | by SICK
The Rotary Encoder ARS60 offers high resolution with 32,767 steps per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust aluminum housing and an IP66 rating, it withstands harsh environments while providing reliable feedback for robotics and servo motors. Designed for professionals, this encoder ensures optimal performance in machine tools and manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60 | 32,767 Steps/Rev | IP66 Rated | SSI Communication | by SICK
Brand: SICK
SKU: 1032591
Alternatively Known As: Rotary Encoder ARS60, High-Resolution Encoder, SSI Rotary Encoder, SICK ARS60 Encoder
Technical Specifications
- Resolution: 32,767 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: typically 60 mA
- Connection: 11-wire cable, 3 m length
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start-up torque: typically 0.25 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: up to 6,000 min⁻¹ with shaft seal
- Enclosure rating: IP66
- Operating temperature: -20°C to +85°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,767 steps per revolution
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP66 rating
- Low operating torque of typically 0.2 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- SSI communication interface with Gray code
- Long bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with typical 60 mA operating current
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A1L32767 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
