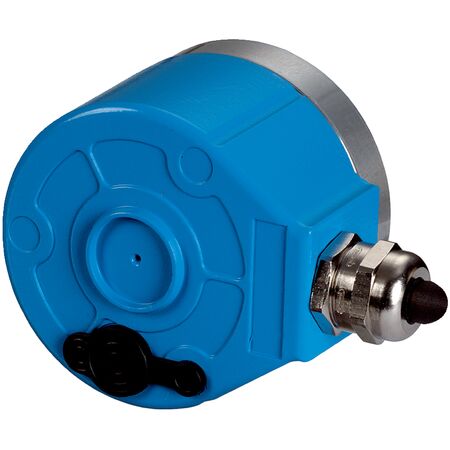

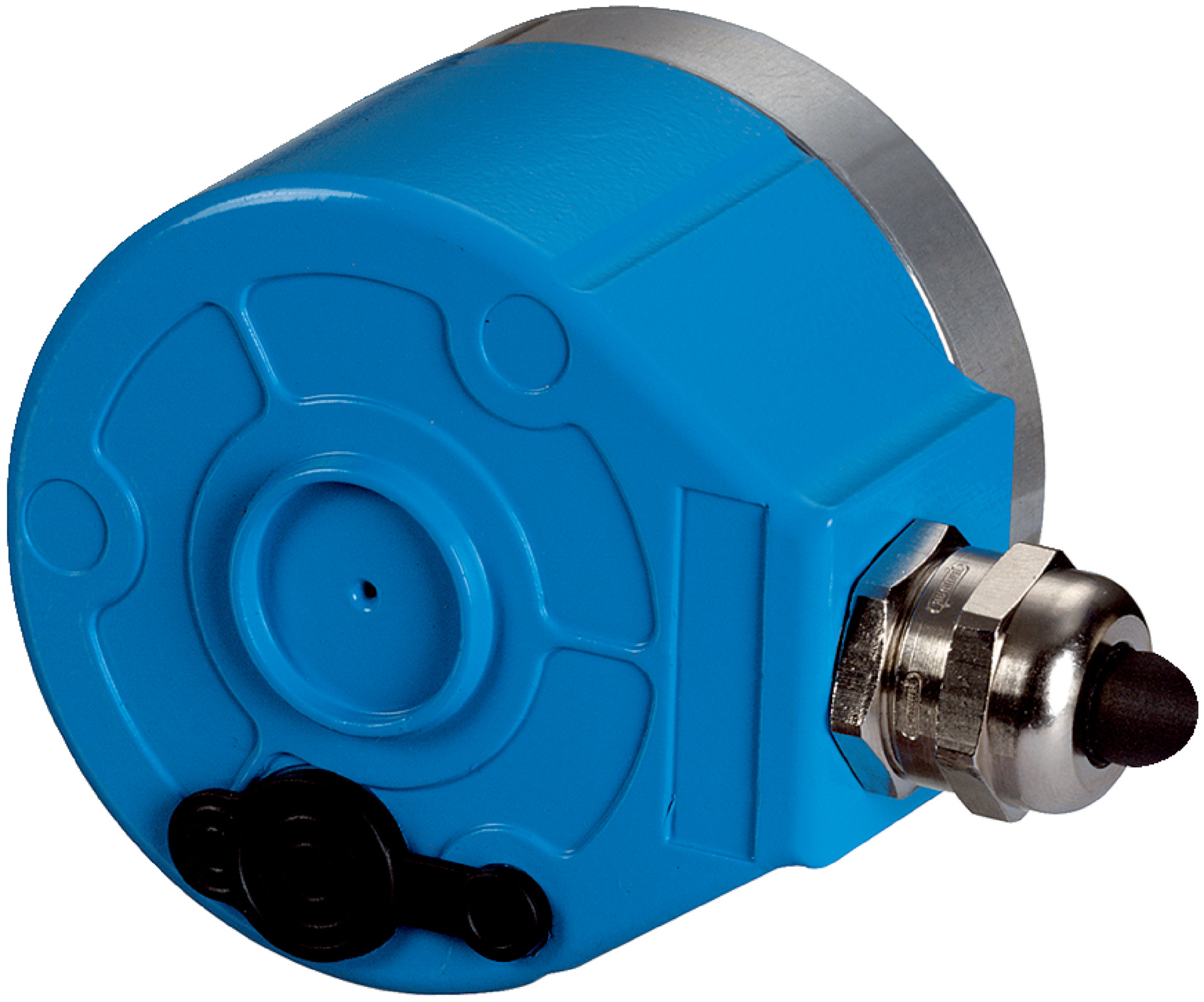

Rotary Encoder ARS60-H4K03600 | 3600 Steps/Rev | IP66 Enclosure | High-Resolution | by SICK
The Rotary Encoder ARS60-H4K03600 offers high resolution with 3,600 steps per revolution, making it ideal for industrial automation and precision motion control applications. With a robust aluminum die cast housing and an IP66 rated enclosure, it ensures reliable performance in harsh environments, while its low operating torque minimizes mechanical load.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H4K03600 | 3600 Steps/Rev | IP66 Enclosure | High-Resolution | by SICK
Brand: SICK
SKU: 1032884
Alternatively Known As: Rotary Encoder ARS60, High-Resolution Shaft Encoder, Industrial Rotary Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 3,600
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 3,600 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for minimal mechanical load
- High resistance to shock (50 g) and vibration (20 g)
- Cable connection with 22 wires, 1.5 m length
- Fast initialization time of 80 ms
- Binary code output with adjustable code sequence
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Manufacturing equipment requiring accurate shaft position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-H4K03600 rotary encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
