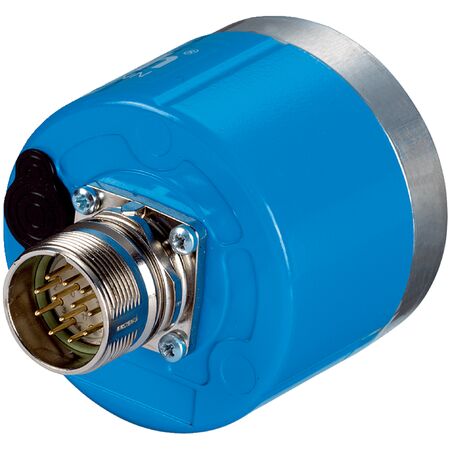

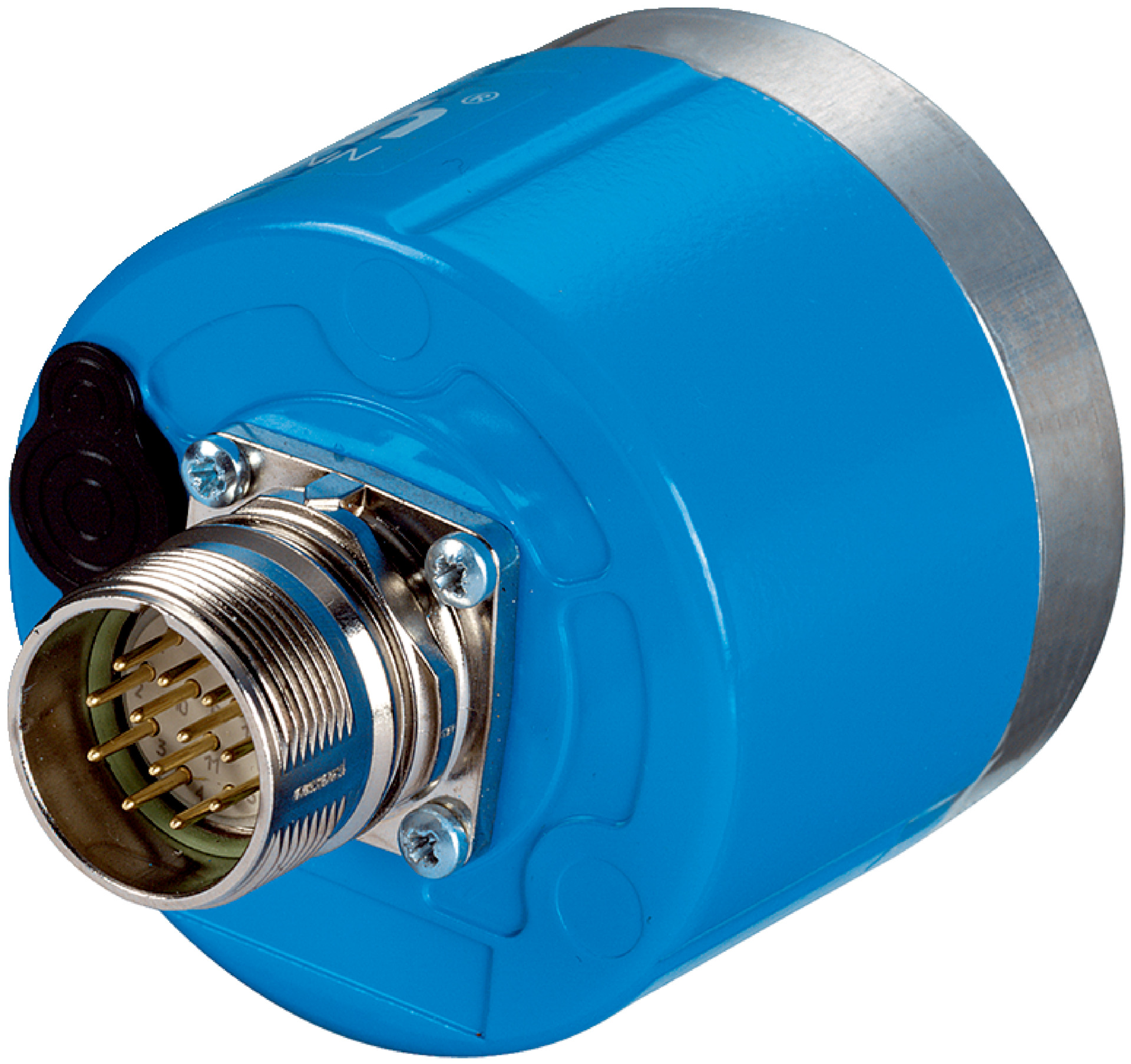

Rotary Encoder ARS60 | 4096 Steps per Revolution | IP65 Rated | SSI Communication | by SICK
The Rotary Encoder ARS60-AAB04096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics applications. Built with a robust aluminum die cast housing and an IP65 rating, it ensures durability in harsh environments. With a wide operating temperature range of -20°C to +85°C, this encoder is perfect for machine tools and conveyor systems requiring accurate angular positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60 | 4096 Steps per Revolution | IP65 Rated | SSI Communication | by SICK
Brand: SICK
SKU: 1031432
Alternatively Known As: Rotary Encoder ARS60, SSI Rotary Encoder, SICK Angular Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm
- Housing material: Aluminum die cast
- Start up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust aluminum die cast housing with IP65 rating
- SSI communication interface with Gray code
- Blind hollow shaft with 15 mm diameter and front clamp
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 0.6 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate angular positioning
- Machine tools requiring high resolution feedback
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-AAB04096 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
