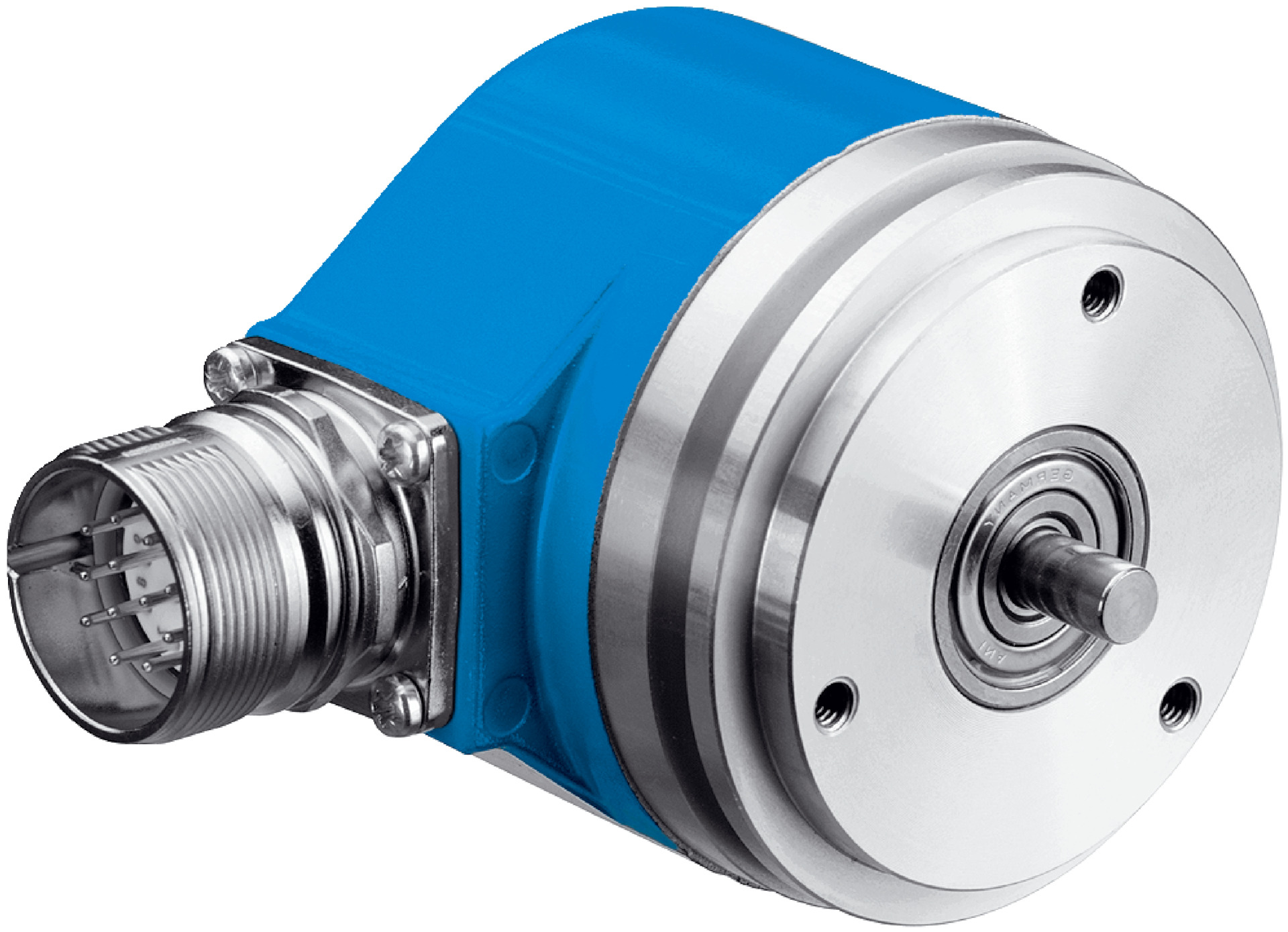

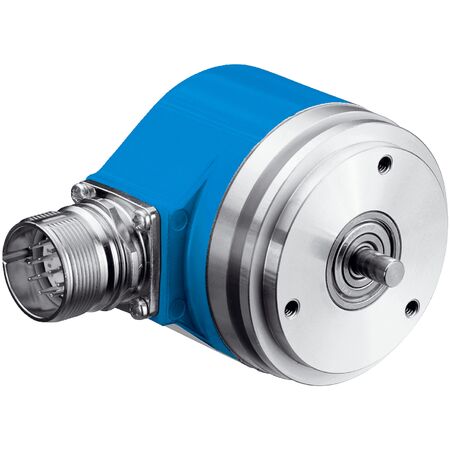

Rotary Encoder ARS60-A1A01024 | 1024 Steps/Rev | IP65 Rated | Low Operating Torque | by SICK

BRAND: SICK
SKU: 1031399
$2,147.50 List price: $2,699.20
+ −
30 Days Return Delivery Options
The ARS60-A1A01024 rotary encoder delivers high precision with 1,024 steps per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing is IP65 rated, ensuring durability in harsh environments. With a low operating torque of just 0.2 Ncm and a wide temperature range from -20°C to +85°C, this encoder is perfect for applications requiring reliable position measurement and feedback.

Product Name/Title: Rotary Encoder ARS60-A1A01024 | 1024 Steps/Rev | IP65 Rated | Low Operating Torque | by SICK

Brand: SICK

SKU: 1031399

Alternatively Known As: Rotary Encoder, Incremental Encoder, Shaft Encoder, Position Encoder, SSI Encoder

Technical Specifications
  • Mean time to dangerous failure (MTTFD): 300 years (EN ISO 13849-1)
  • Number of steps per revolution: 1,024 (10 bit)
  • Measuring step deviation: 0.005°
  • Error limits G: 0.035°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Connection type: Male connector, M23, 12-pin, radial
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 60 mA
  • Mechanical design: Solid shaft, servo flange
  • Shaft diameter: 6 mm with flat
  • Start up torque: Typically 0.25 Ncm
  • Operating torque: Typically 0.2 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Moment of inertia of rotor: 48 gcm²
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Angular acceleration: Up to 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (IEC 60529)
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 1,024 steps per revolution (10 bit)
  • Robust aluminum die cast housing with IP65 rating
  • Solid shaft with 6 mm diameter and flat for secure mounting
  • SSI communication interface with Gray code output
  • Low operating torque of typically 0.2 Ncm
  • Wide operating temperature range from -20°C to +85°C
  • High resistance to shock (50 g) and vibration (20 g)
  • Long bearing lifetime with 3.6 x 10^9 revolutions
  • Fast initialization time of 80 ms
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with rotary encoder mounting and electrical connections to ensure proper alignment and signal integrity.
Applications
  • Industrial automation for precise position measurement
  • Robotics for accurate shaft rotation feedback
  • Machine tools requiring high resolution and reliability
  • Servo motor feedback systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK ARS60-A1A01024 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
