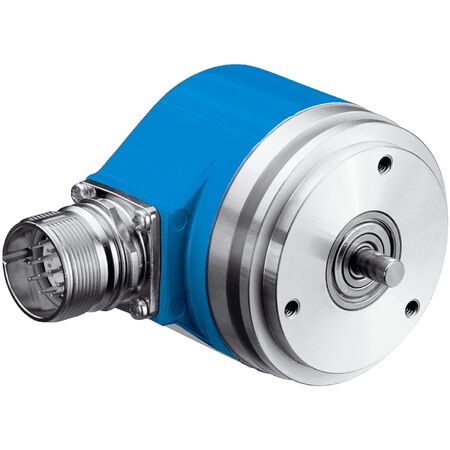

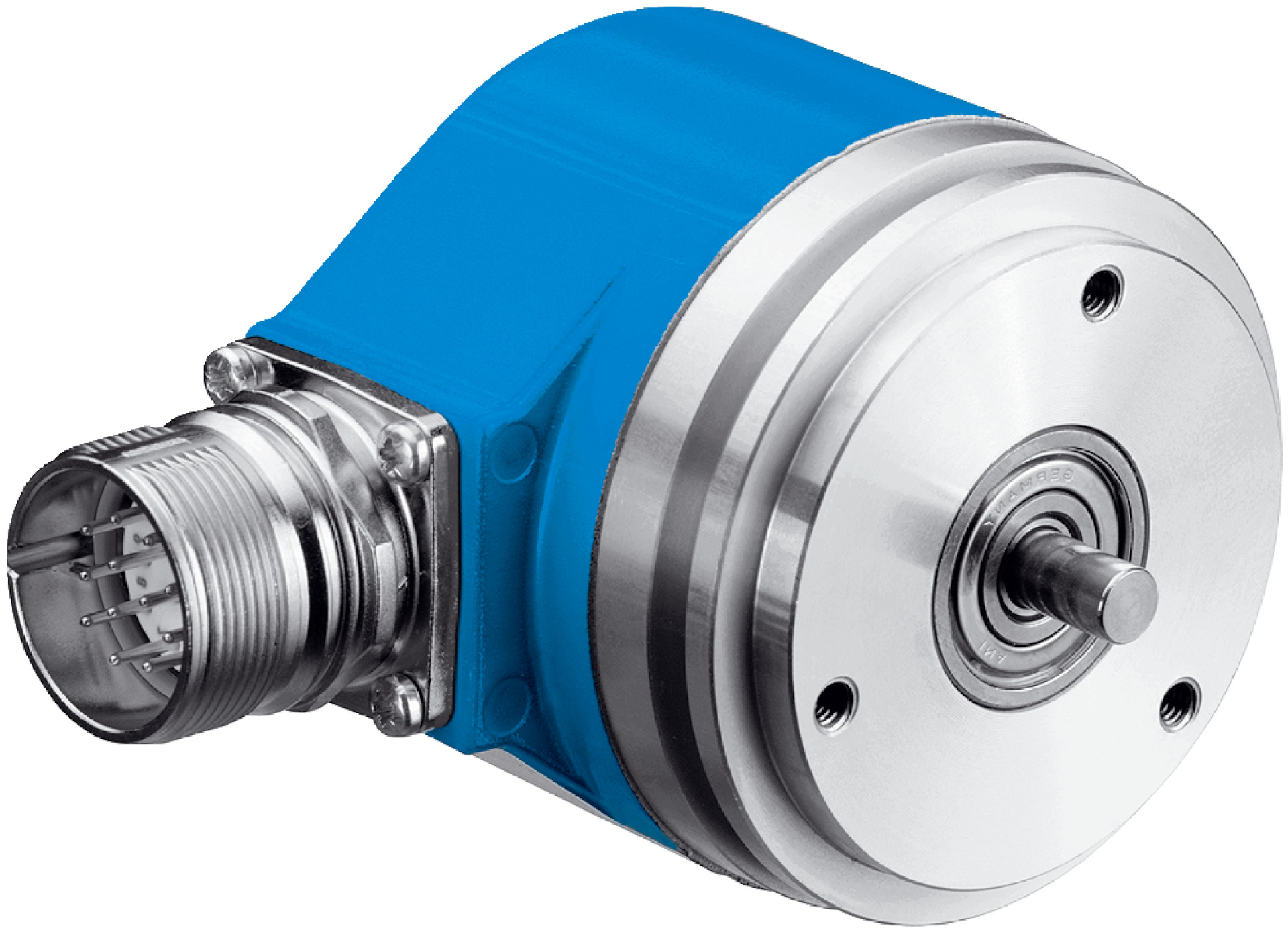

Rotary Encoder ARS60-A1A04096 | 4096 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
The Rotary Encoder ARS60-A1A04096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. With a robust aluminum housing and an IP65 rating, it withstands harsh environments while providing accurate angular feedback. Designed for servo motor control systems, this encoder ensures reliable performance with low start-up torque and a wide operating temperature range from -20°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A1A04096 | 4096 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
Brand: SICK
SKU: 1031428
Alternatively Known As: Rotary Encoder, Incremental Encoder, Angular Position Sensor, SSI Encoder, Servo Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Start-up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Solid shaft with servo flange and 6 mm diameter shaft with flat
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque of typically 0.25 Ncm and operating torque of 0.2 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks (50 g) and vibration (20 g)
- SSI communication interface with Gray code output
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Low measuring step deviation and high repeatability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate angular feedback
- Servo motor control systems
- Machine tools and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 60 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ARS60-A1A04096 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
