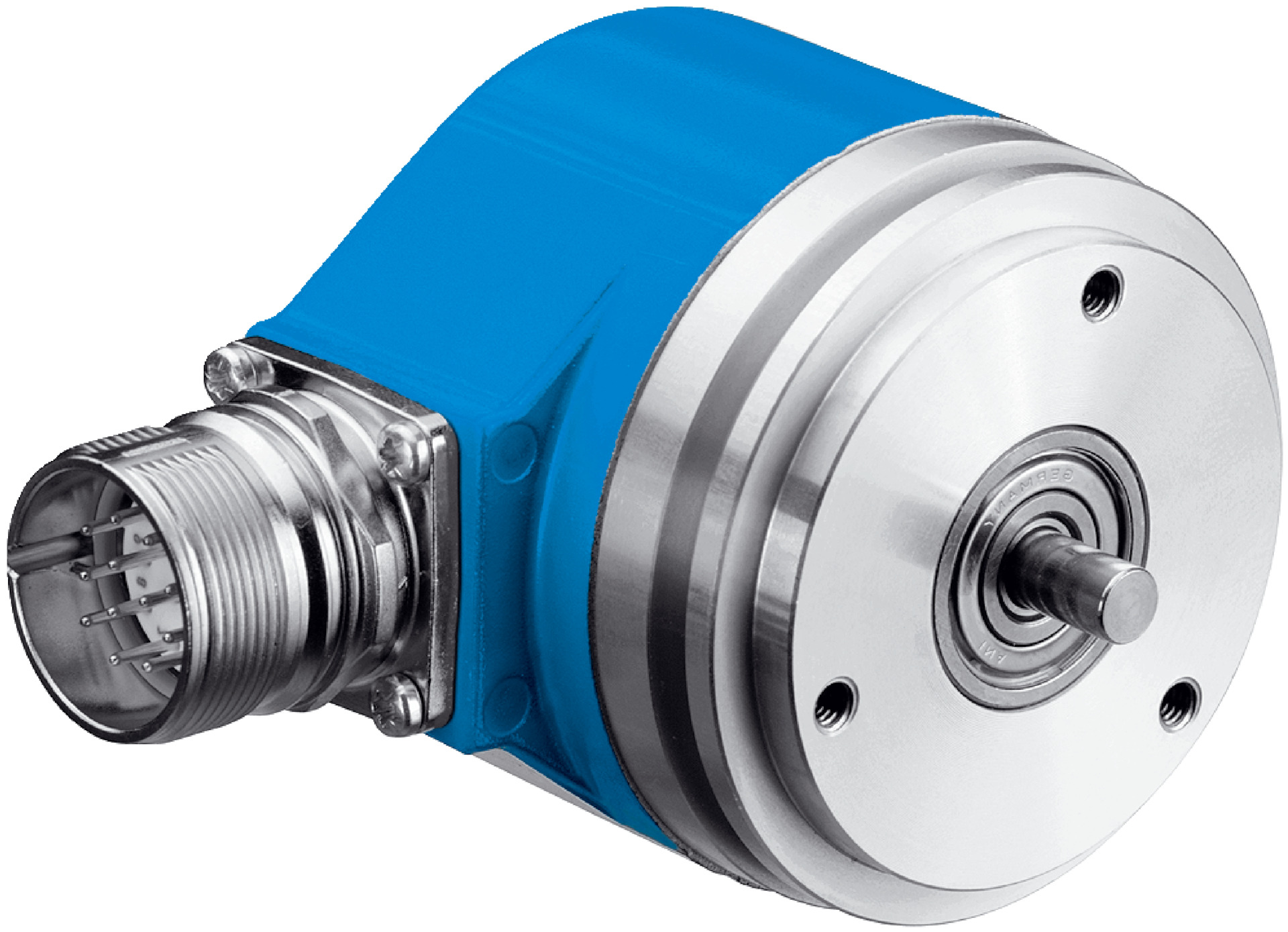

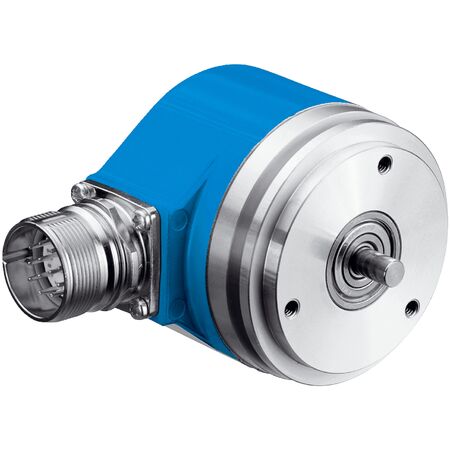

Rotary Encoder ARS60-A1A05000 | 5000 Steps/Rev | IP65 Rated | SSI Communication | by SICK
The Rotary Encoder ARS60-A1A05000 delivers high precision with 5,000 steps per revolution, making it ideal for industrial automation and robotics. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust aluminum housing and low operating torque enhance durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A1A05000 | 5000 Steps/Rev | IP65 Rated | SSI Communication | by SICK
Brand: SICK
SKU: 1036538
Alternatively Known As: Rotary Encoder, Angular Position Sensor, Incremental Encoder, SSI Encoder, Servo Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 5,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 6 mm with flat
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Dimensions (H x L x W): 60mm x 50mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 5,000 steps per revolution
- Solid shaft with servo flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Low operating torque of typically 0.2 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- SSI communication interface with Gray code output
- Adjustable code sequence parameter (clockwise increasing)
- Long bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate angular feedback
- Servo motor control systems
- Machine tool positioning
- Packaging and material handling equipment
Standards & Compliance
- Complies with AS/NZS 61000 series for Electromagnetic Compatibility (EMC) standards
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (typical 60 mA operating current) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A1A05000 rotary encoder is available for immediate purchase, ideal for high precision industrial automation and control applications.
