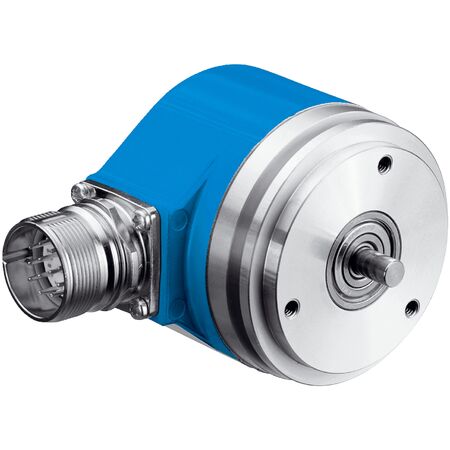

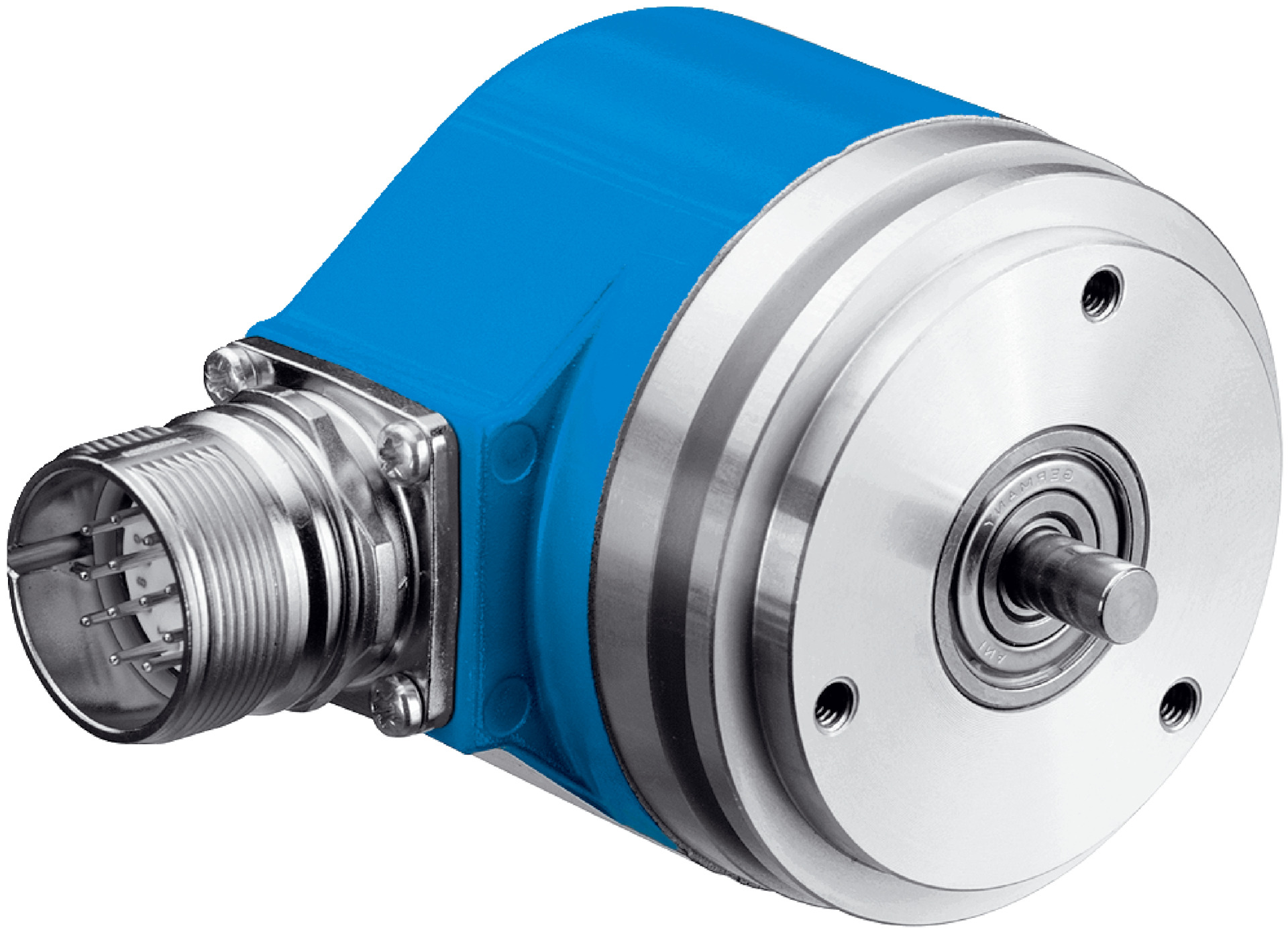

Rotary Encoder ARS60-A1A08192 | 8192 Steps/Rev | IP65 Rated | Servo Flange | by SICK
The ARS60-A1A08192 rotary encoder delivers high precision with 8,192 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust IP65-rated aluminum housing and a solid 6 mm shaft, it ensures reliable performance in harsh environments. Designed for speed and position measurement, this encoder is perfect for machine tools and conveyor systems, providing exceptional durability and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A1A08192 | 8192 Steps/Rev | IP65 Rated | Servo Flange | by SICK
Brand: SICK
SKU: 1031453
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Sensor, SSI Encoder, Servo Encoder
Technical Specifications
- Resolution: 8,192 steps per revolution (13 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution (13 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque of typically 0.25 Ncm
- Operating temperature range from -20°C to +85°C
- Communication via SSI interface with Gray code
- High reliability with MTTFD of 300 years (EN ISO 13849-1)
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 60 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ARS60-A1A08192 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
