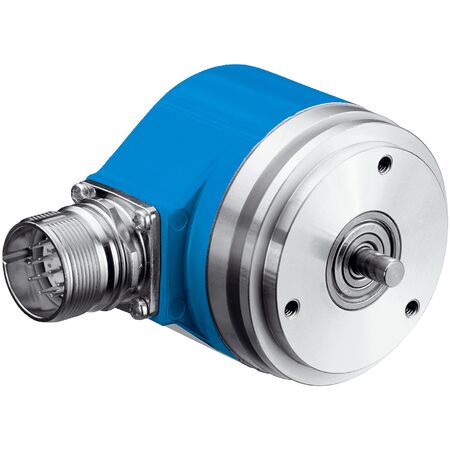

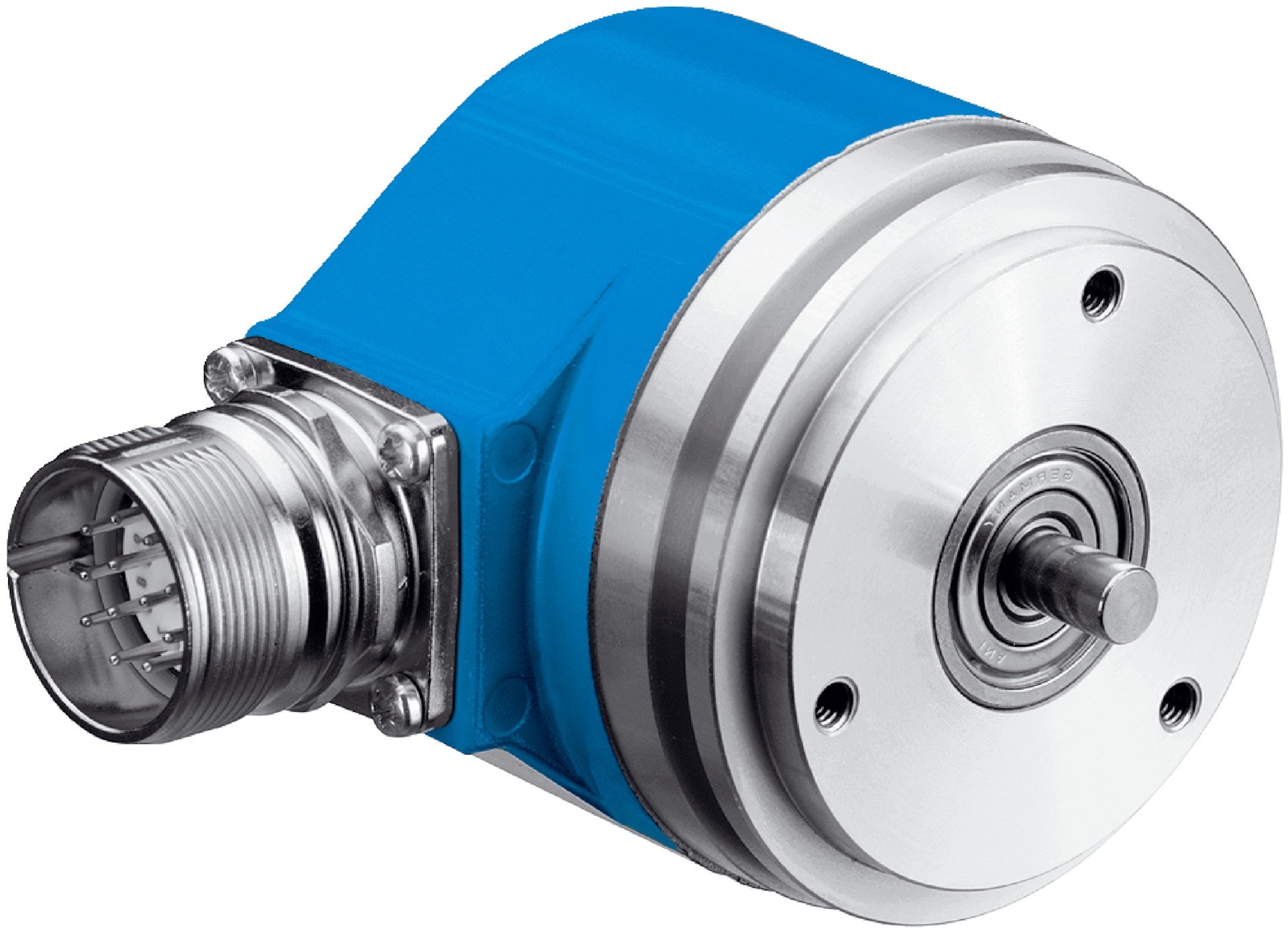

Rotary Encoder ARS60-A1A32767 | 32,767 Steps/Rev | IP65 Rated | Low Torque | by SICK
The Rotary Encoder ARS60-A1A32767 offers high precision with up to 32,767 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust aluminum die-cast housing and an IP65 rating, it ensures durability in harsh environments. Designed for reliable position and speed sensing, this encoder features a low operating torque of 0.2 Ncm and a wide operating temperature range from -20°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A1A32767 | 32,767 Steps/Rev | IP65 Rated | Low Torque | by SICK
Brand: SICK
SKU: 1031488
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Sensor, Angular Encoder, Servo Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 32,767 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection: Male connector, M23, 12-pin, radial
- Mechanical design: Solid shaft, servo flange, shaft diameter 6 mm with flat
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature: -20°C to +85°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with up to 32,767 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Solid shaft with servo flange and 6 mm diameter
- Low operating torque of typically 0.2 Ncm
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
- SSI communication interface with Gray code output
- Fast initialization time of 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing processes
- Position and speed sensing in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A1A32767 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
