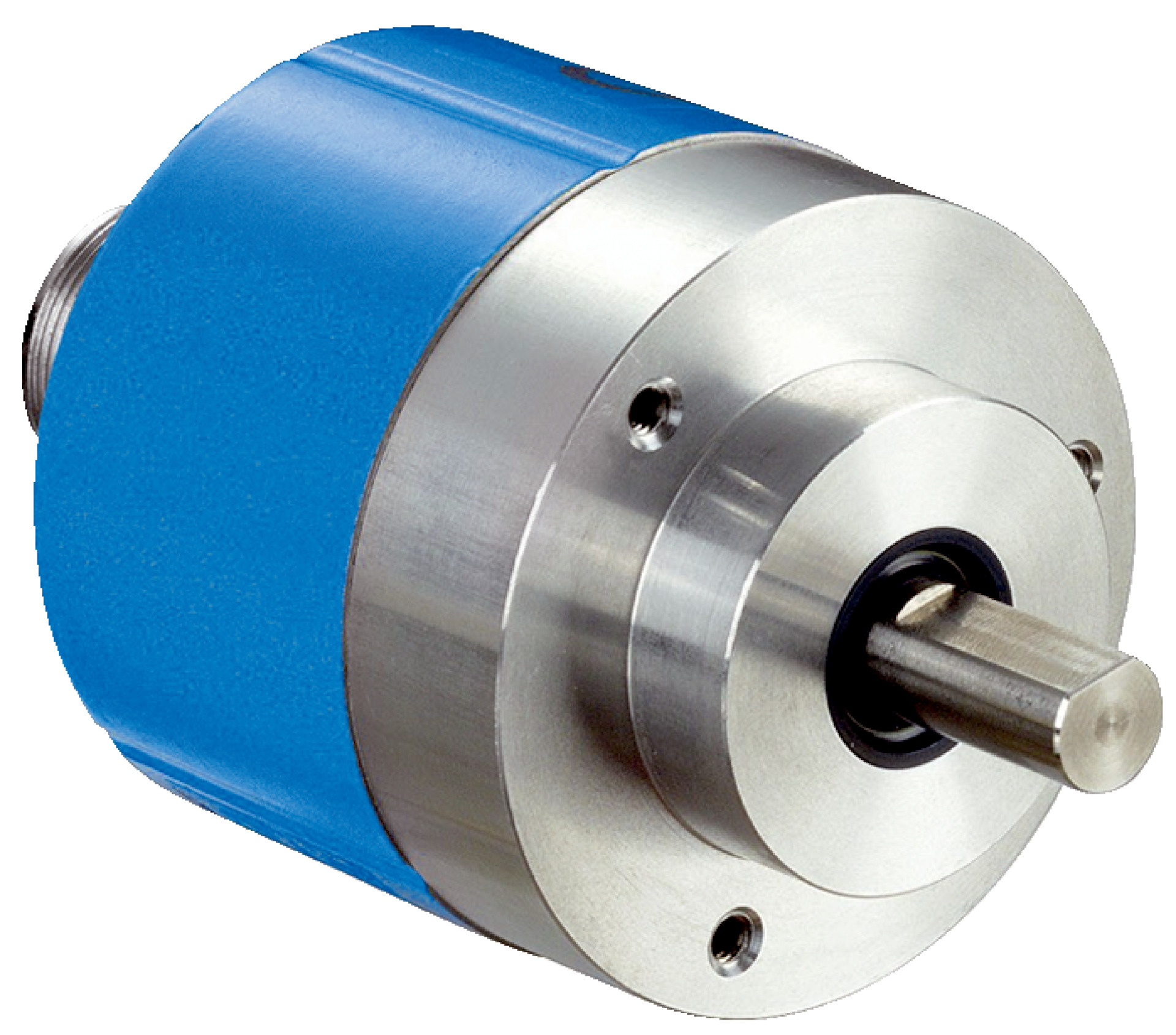

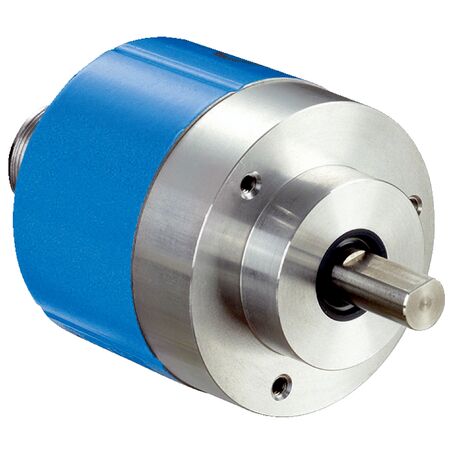

Rotary Encoder ARS60-A4B06000 | 6000 Steps/Rev | IP65 Enclosure | by SICK
The ARS60-A4B06000 rotary encoder delivers high precision with a maximum resolution of 6,000 steps per revolution, making it ideal for industrial automation and robotics applications. Its robust aluminum die-cast housing and IP65 rating ensure durability in harsh environments, while the SSI communication interface provides reliable data transmission. Perfect for precision measurement and speed feedback in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Maximum resolution: 6,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 6,000 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Low operating and start-up torque
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock and vibration
- SSI communication interface with Gray code output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4B06000 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
