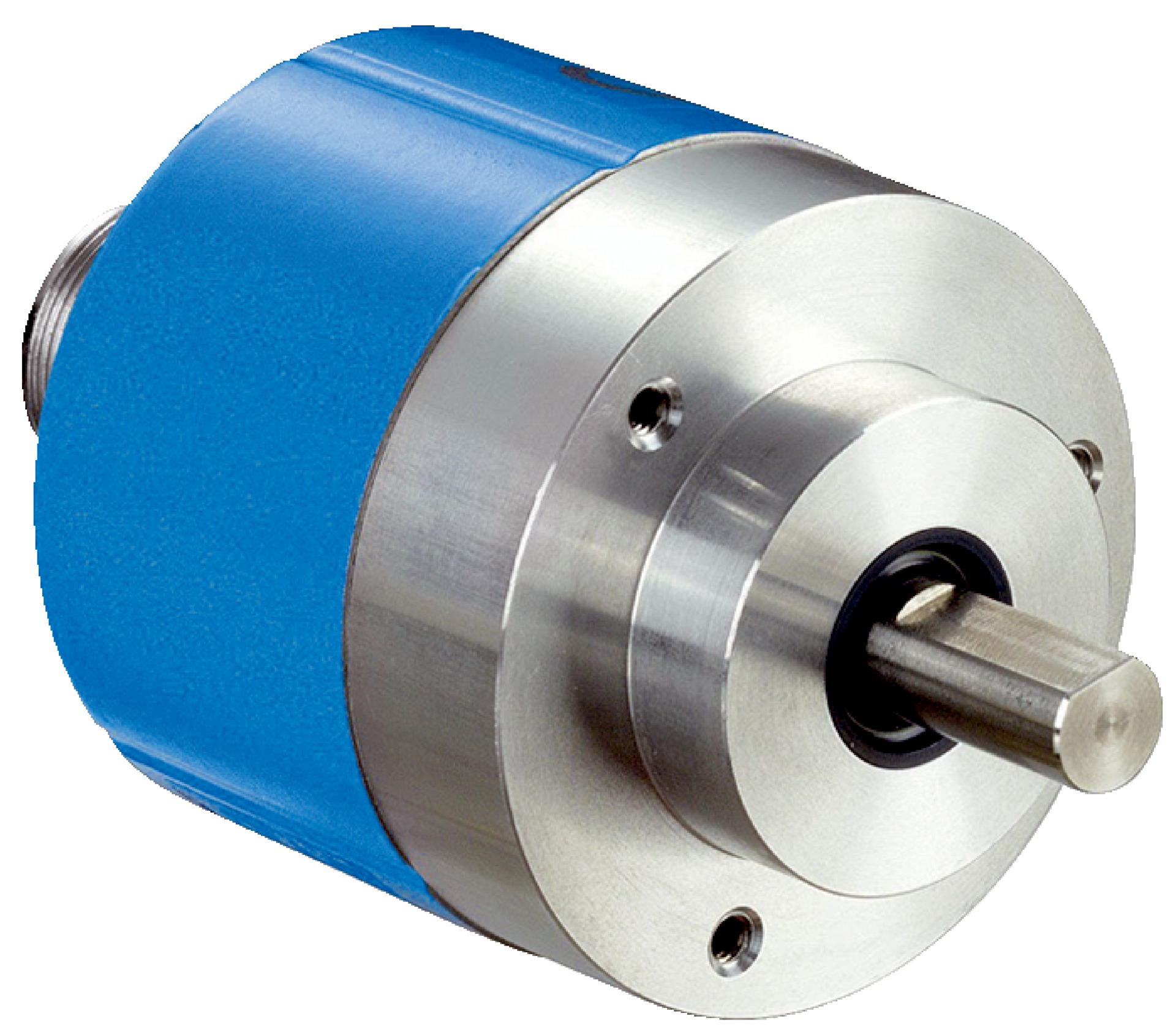

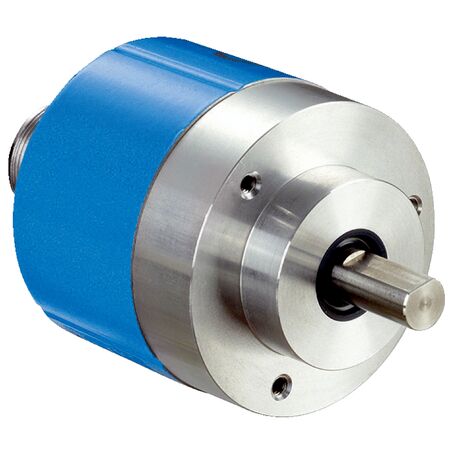

Rotary Encoder ARS60-A4B32767 | 32,767 Steps/Rev | IP65 Rated | Solid Shaft Design | by SICK
The Rotary Encoder ARS60-A4B32767 offers high precision with 32,767 steps per revolution, making it ideal for industrial automation and control systems. Built for reliability in harsh environments, it features an IP65 rating and a solid shaft design for secure mounting. With a wide operating temperature range and low operating torque, this encoder ensures efficient performance in robotics and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A4B32767 | 32,767 Steps/Rev | IP65 Rated | Solid Shaft Design | by SICK
Brand: SICK
SKU: 1031812
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Encoder, Shaft Encoder, Industrial Encoder
Technical Specifications
- Resolution: 32,767 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male M23, 12-pin axial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Operating torque: Typically 0.3 Ncm
- Start up torque: Typically 0.4 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with up to 32,767 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Solid shaft with 10 mm diameter and flat for secure mounting
- Low operating torque for efficient performance
- Reliable operation in harsh environments with wide temperature range and shock resistance
- SSI communication interface with Gray code output
- High mean time to dangerous failure (MTTFD) of 300 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A4B32767 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
