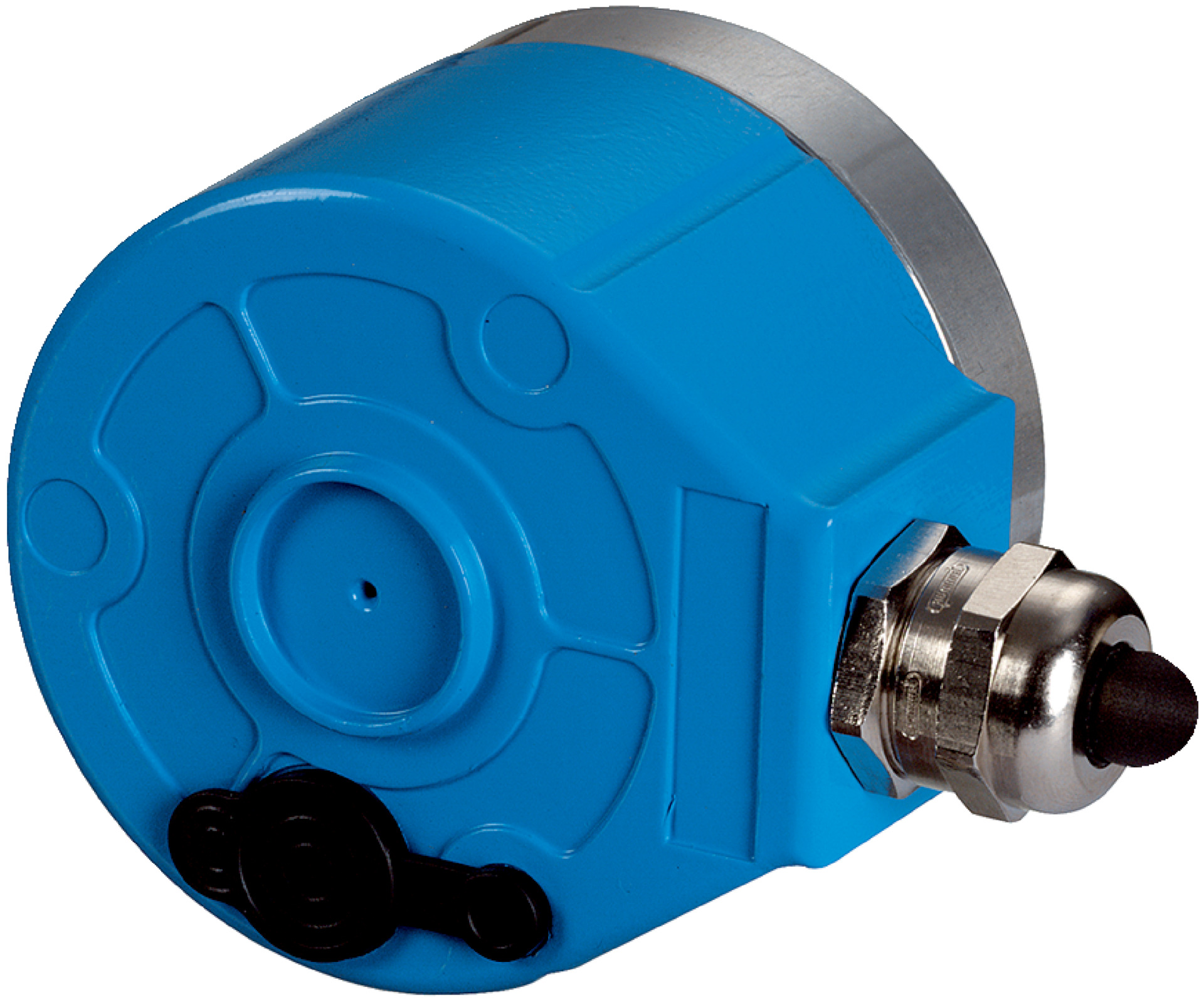

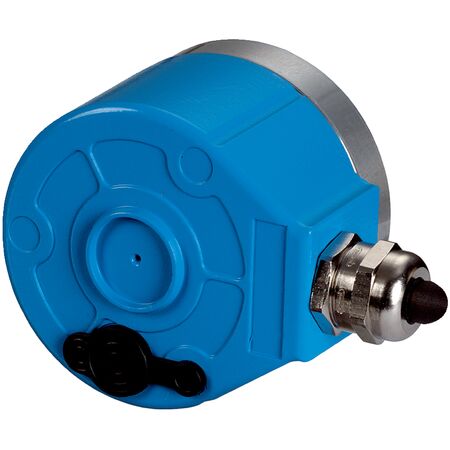

Rotary Encoder ARS60-A4M06000 | 6000 Steps/Rev | IP66 Enclosure | by SICK
The ARS60-A4M06000 rotary encoder delivers high precision with a maximum resolution of 6,000 steps per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features an IP66 rated enclosure for dust and water protection, ensuring reliability in harsh environments. With a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-A4M06000 | 6000 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1032962
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Sensor, Shaft Encoder, Industrial Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Maximum resolution: 6,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: 11-wire cable, 5 m length
- Shaft diameter: 10 mm with flat
- Start-up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal
- Enclosure rating: IP66
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 6,000 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for efficient performance
- High resistance to shock (50 g) and vibration (20 g)
- SSI communication interface with Gray code output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation lowers power consumption in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A4M06000 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
