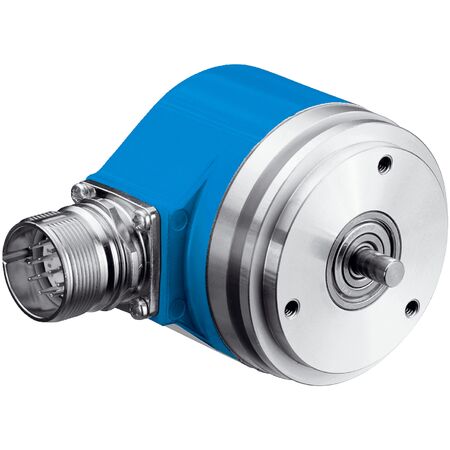

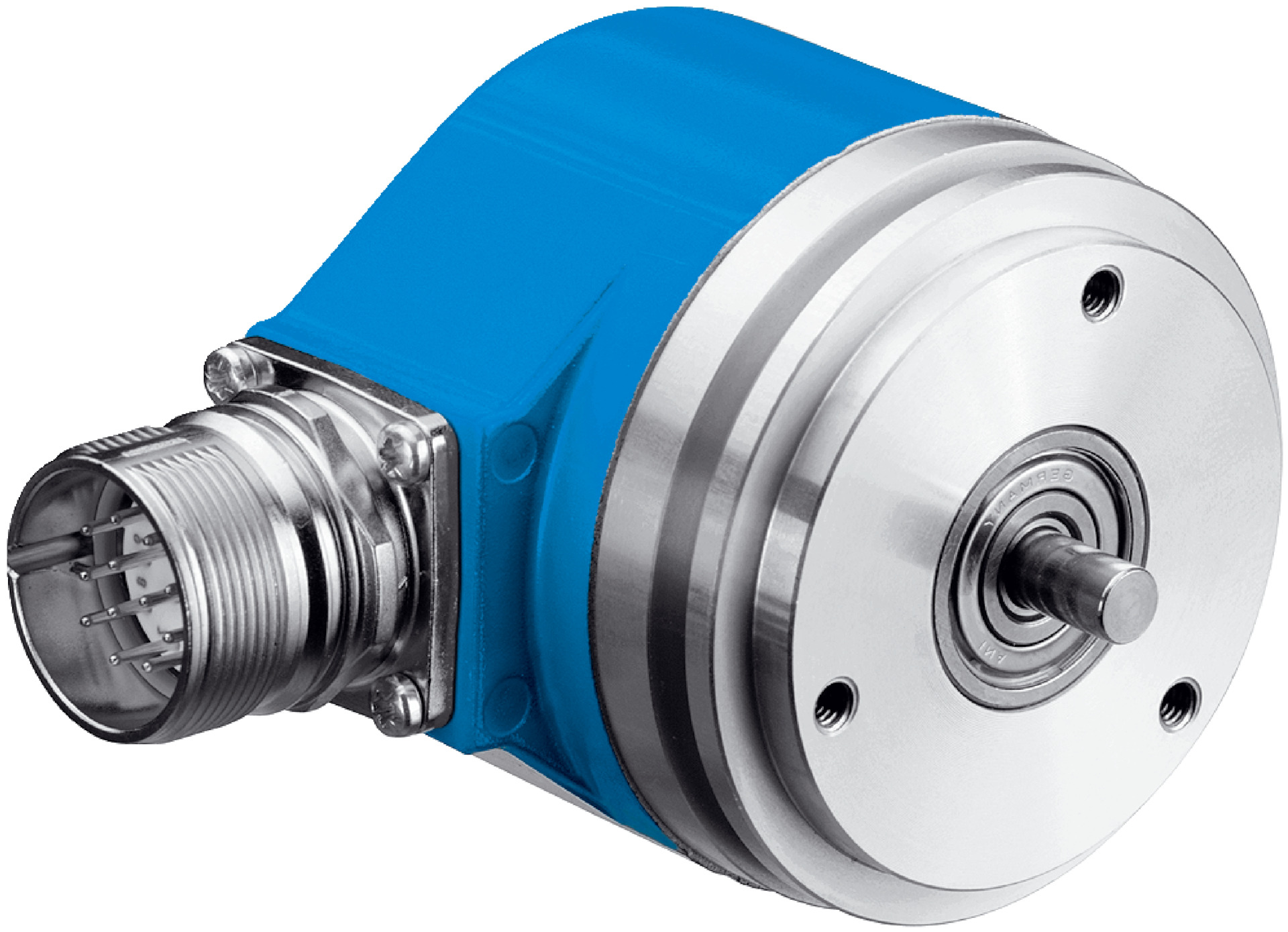

Rotary Encoder ARS60-F1A00512 | 512 Steps per Revolution | IP65 Rated | Robust Aluminum Housing | by SICK
The Rotary Encoder ARS60-F1A00512 offers high precision with 512 steps per revolution, making it ideal for industrial automation and control systems. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust aluminum housing guarantees durability. Perfect for robotics and precision measurement, this encoder features a fast initialization time of 80 ms and operates within a wide temperature range of -20°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 512 (9 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 512 steps per revolution (9 bit)
- Solid shaft with servo flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -20°C to +85°C
- Low operating torque of typically 0.2 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 80 ms
- Parallel data world communication interface
- Gray code type with adjustable code sequence parameter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration for optimal performance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing processes
- Position and speed sensing in machinery
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-F1A00512 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
