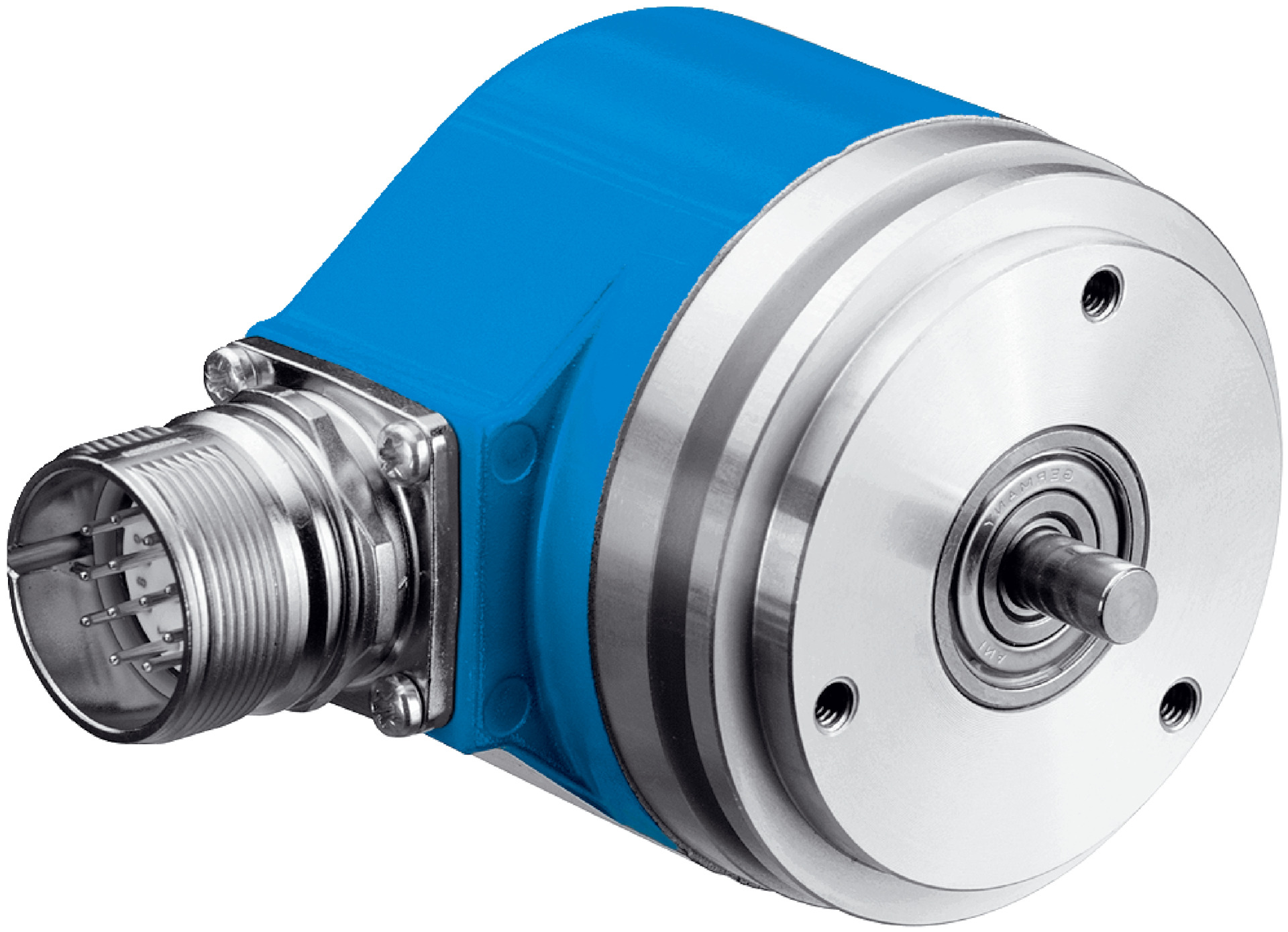

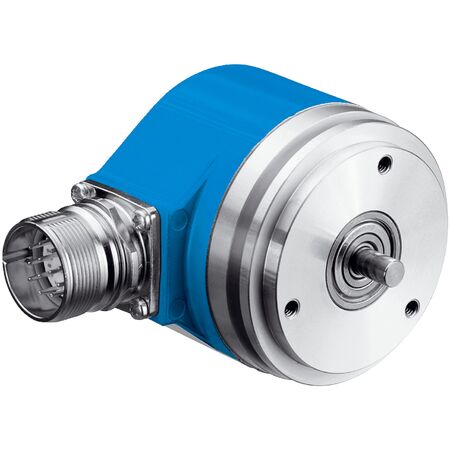

Rotary Encoder ARS60-F1A01024 | 1024 Steps/Rev | IP65 Rated | Solid Shaft Design | by SICK
The Rotary Encoder ARS60-F1A01024 offers high precision with 1,024 steps per revolution, making it ideal for industrial automation and robotics. Its robust aluminum die cast housing ensures durability with an IP65 rating, while the low operating torque of 0.2 Ncm allows for efficient performance. Perfect for applications requiring reliable position and speed measurement, this encoder is designed for seamless integration in safety-critical environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-F1A01024 | 1024 Steps/Rev | IP65 Rated | Solid Shaft Design | by SICK
Brand: SICK
SKU: 1031586
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Sensor, Shaft Encoder, Angular Position Sensor
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 1,024 (10 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Solid shaft with servo flange and 6 mm diameter shaft
- Robust aluminum die cast housing with IP65 rating
- Low operating torque of typically 0.2 Ncm
- High operating speed up to 6,000 min⁻¹ with shaft seal
- Parallel data communication interface with Gray code
- Excellent repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20 °C to +85 °C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-F1A01024 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
