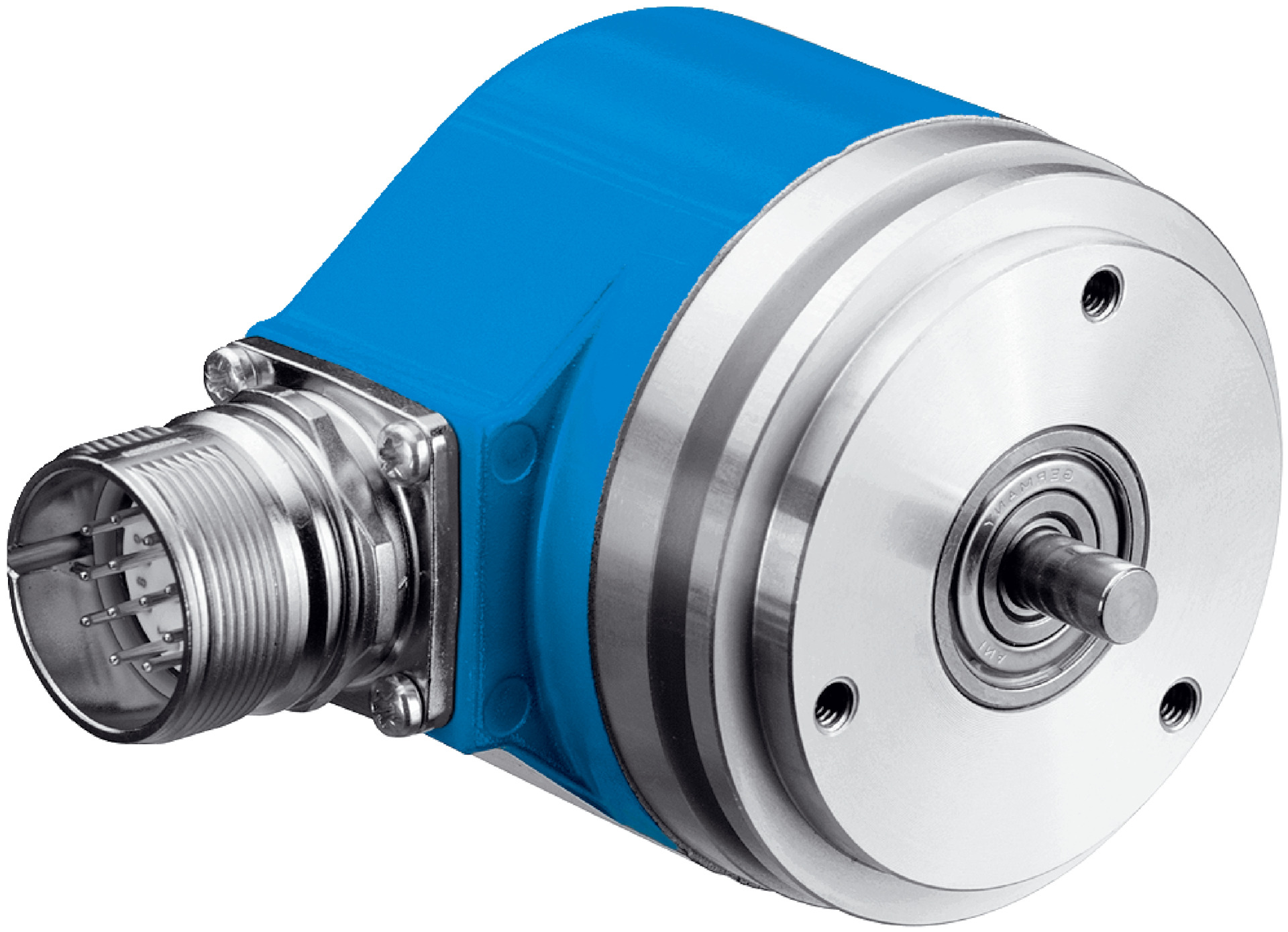

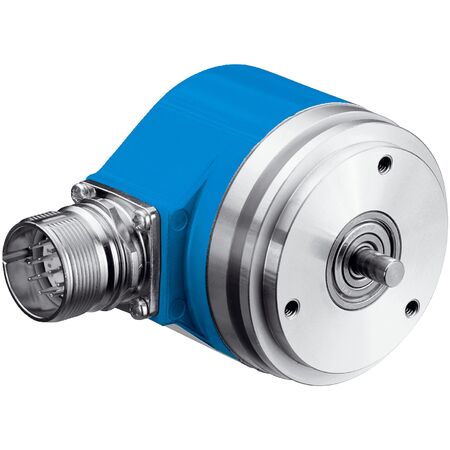

Rotary Encoder ARS60-F1A02048 | 2048 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
The Rotary Encoder ARS60-F1A02048 features a high resolution of 2,048 steps per revolution, making it ideal for precise position and speed measurement in industrial automation. With a robust aluminum die cast housing and an IP65 rating, it ensures durability in harsh environments. Designed for reliability, it boasts an MTTFD of 300 years, making it perfect for safety-related motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-F1A02048 | 2048 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
Brand: SICK
SKU: 1033822
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Encoder, Shaft Encoder, Industrial Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 2,048 steps per revolution (11 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Start up torque: 0.25 Ncm
- Operating torque: 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque of 0.25 Ncm and operating torque of 0.2 Ncm
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Parallel data communication interface with Gray code
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-F1A02048 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related motion control applications.
