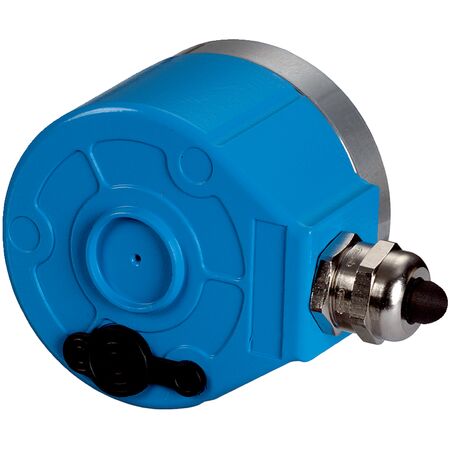

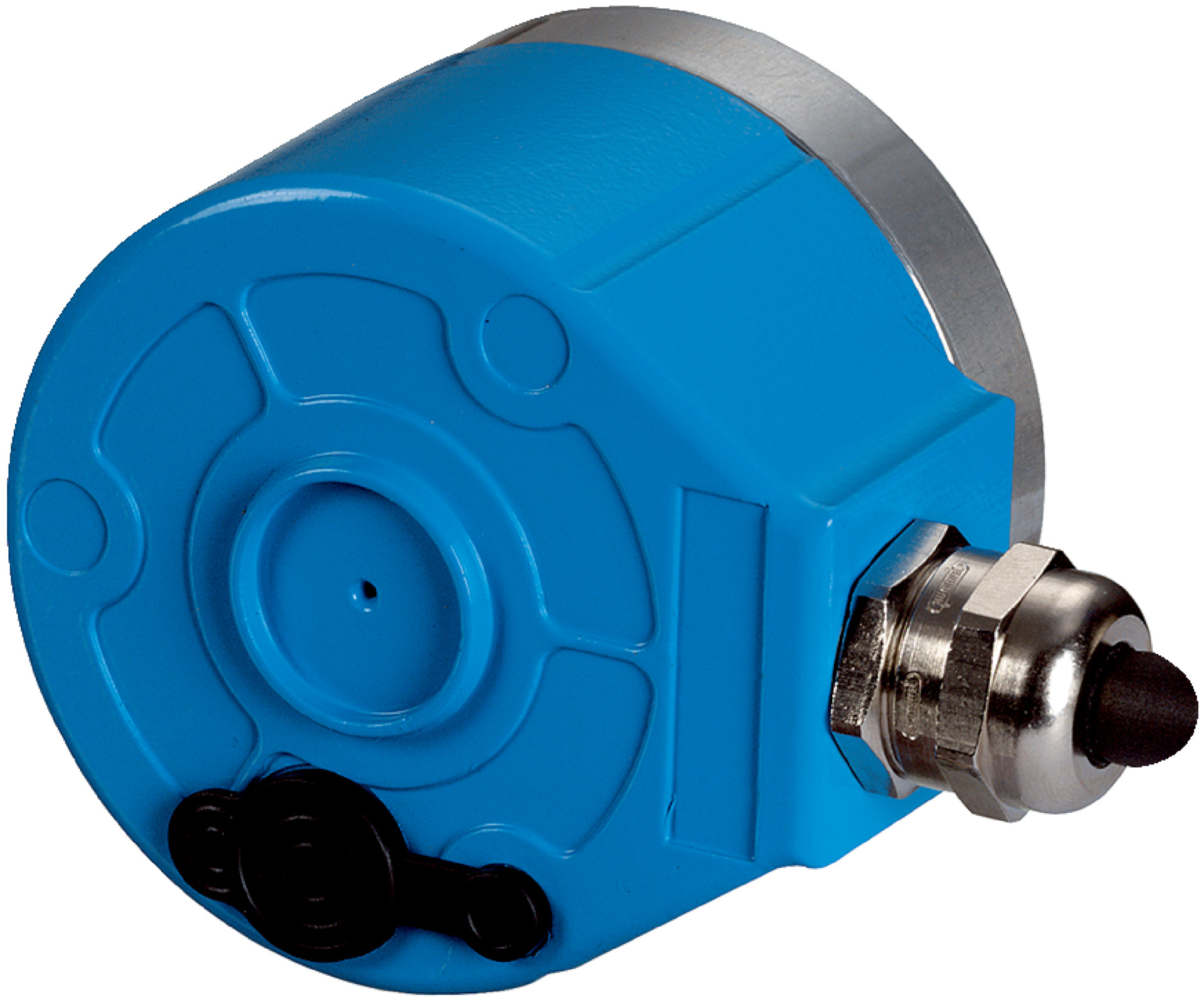

Rotary Encoder ARS60-F4K02048 | 2048 Steps/Rev | IP66 Enclosure | by SICK
The ARS60-F4K02048 rotary encoder offers high precision with 2,048 steps per revolution and a robust IP66 enclosure, making it ideal for industrial automation and control systems. Designed for reliability, it features a low operating torque and a wide temperature range from -20°C to +85°C, ensuring optimal performance in various applications, including robotics and precision measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-F4K02048 | 2048 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1031595
Alternatively Known As: Rotary Encoder, Incremental Encoder, Industrial Encoder, Shaft Encoder, Position Encoder
Technical Specifications
- Resolution: 2,048 steps per revolution (11 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: 22-wire radial cable, 1.5 m
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Solid shaft with face mount flange and 10 mm diameter
- Robust aluminum die cast housing with IP66 enclosure rating
- Low operating torque of typically 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Wide operating temperature range from -20°C to +85°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Cable connection with 22-wire radial cable, 1.5 m length
- Safety-related mean time to dangerous failure (MTTFD) of 300 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder setup and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-F4K02048 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
