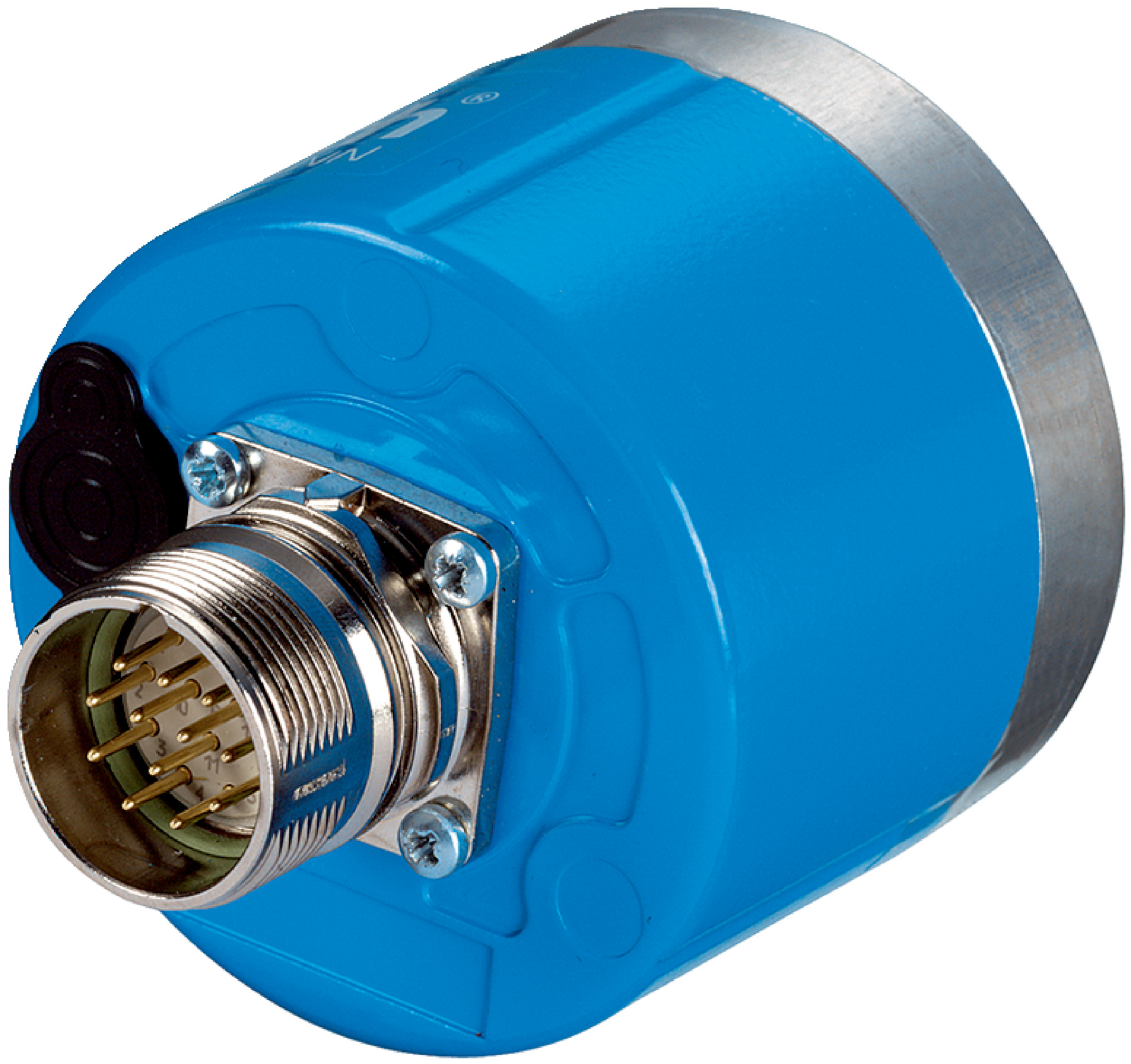

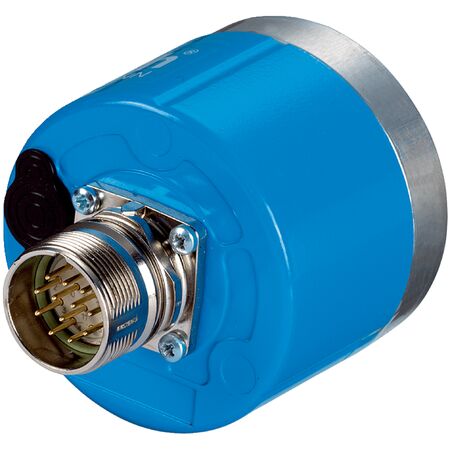

Rotary Encoder ARS60-FAB08192 | 8192 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
The Rotary Encoder ARS60-FAB08192 features high resolution with 8,192 steps per revolution, making it ideal for industrial automation and precision measurement applications. With a robust aluminum die cast housing and an IP65 rating, it ensures durability and reliability in demanding environments. Designed for professionals, this encoder offers low start-up torque and high repeatability, making it perfect for robotics and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-FAB08192 | 8192 Steps/Rev | IP65 Rated | Aluminum Housing | by SICK
Brand: SICK
SKU: 1031785
Alternatively Known As: Rotary Encoder, Incremental Encoder, High Resolution Encoder, ARS60 Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 8,192 steps per revolution (13 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typical 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Housing material: Aluminum die cast
- Start up torque: Typical 0.6 Ncm
- Operating torque: Typical 0.4 Ncm
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 steps per revolution (13 bit)
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft with 15 mm diameter and front clamp
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- High repeatability with standard deviation of 0.005°
- Parallel data communication interface with Gray code
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Safety-related applications requiring reliable feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption (typical 90 mA operating current) enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-FAB08192 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
