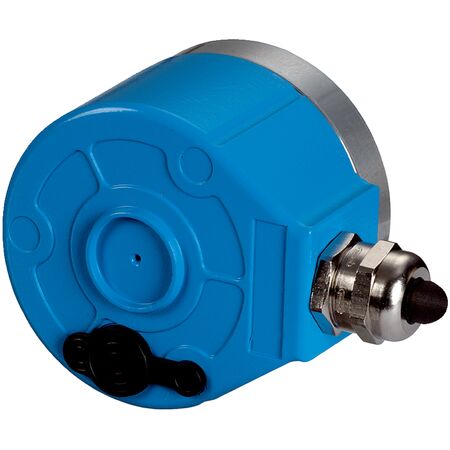

Rotary Encoder ARS60-H1K16384 | 16,384 Steps/Rev | IP66 Enclosure | by SICK
The ARS60-H1K16384 rotary encoder delivers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing features an IP66 rating, ensuring durability in harsh environments. With a low operating current and a long bearing lifetime, this encoder is perfect for precision measurement and positioning applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Cable, 22-wire, radial, 1.5 m
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Start-up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (cable)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Solid shaft with servo flange and 6 mm diameter shaft with flat
- Robust aluminum die cast housing with IP66 enclosure rating
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 0.25 Ncm and operating torque of 0.2 Ncm
- Cable connection with 22-wire radial cable, 1.5 m length
- High mechanical reliability with bearing lifetime of 3.6 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Resistance to shocks up to 50 g and vibration up to 20 g
