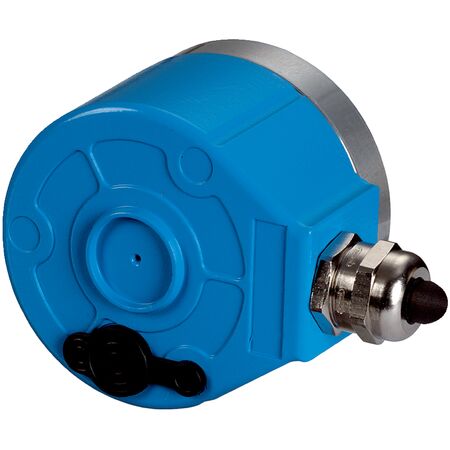

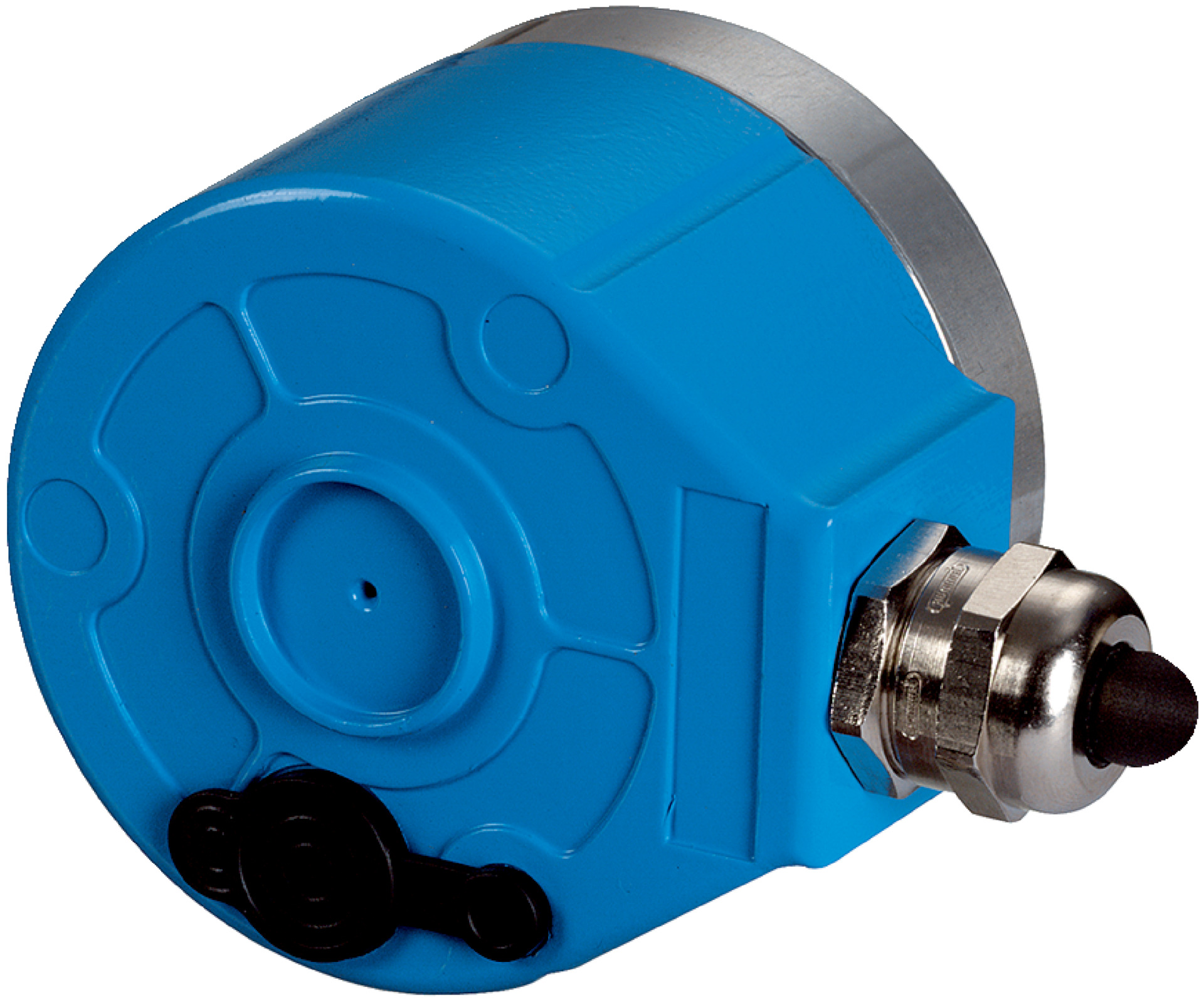

Rotary Encoder ARS60-H1M32768 | 32,768 Steps/Rev | IP66 Enclosure | by SICK
The Rotary Encoder ARS60-H1M32768 offers high resolution with 32,768 steps per revolution, making it ideal for precision measurement in industrial automation and control systems. With a robust aluminum die-cast housing and an IP66 enclosure rating, it withstands harsh environments while providing reliable performance. Designed for robotics and servo motor feedback, this encoder ensures accurate position and speed sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H1M32768 | 32,768 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1036653
Alternatively Known As: Rotary Encoder ARS60, High-Resolution Encoder, SICK Position Sensor, Industrial Rotary Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,768 (15 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data word
- Initialization time: 80 ms
- Code type: Binary
- Code sequence parameter adjustable: CW increasing when viewing clockwise rotating shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 22-wire, radial, 5 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Characteristics of the shaft: With flat
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of the rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (cable)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C without package
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Solid shaft with servo flange and 6 mm diameter shaft with flat
- Robust aluminum die-cast housing with IP66 enclosure rating
- Operating temperature range from -20°C to +85°C
- Low operating torque of typically 0.2 Ncm
- Cable connection with 22-wire, 5 m radial cable
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Response threshold of 0.003° and measuring step deviation of 0.005°
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing
- Position and speed sensing in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-H1M32768 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
