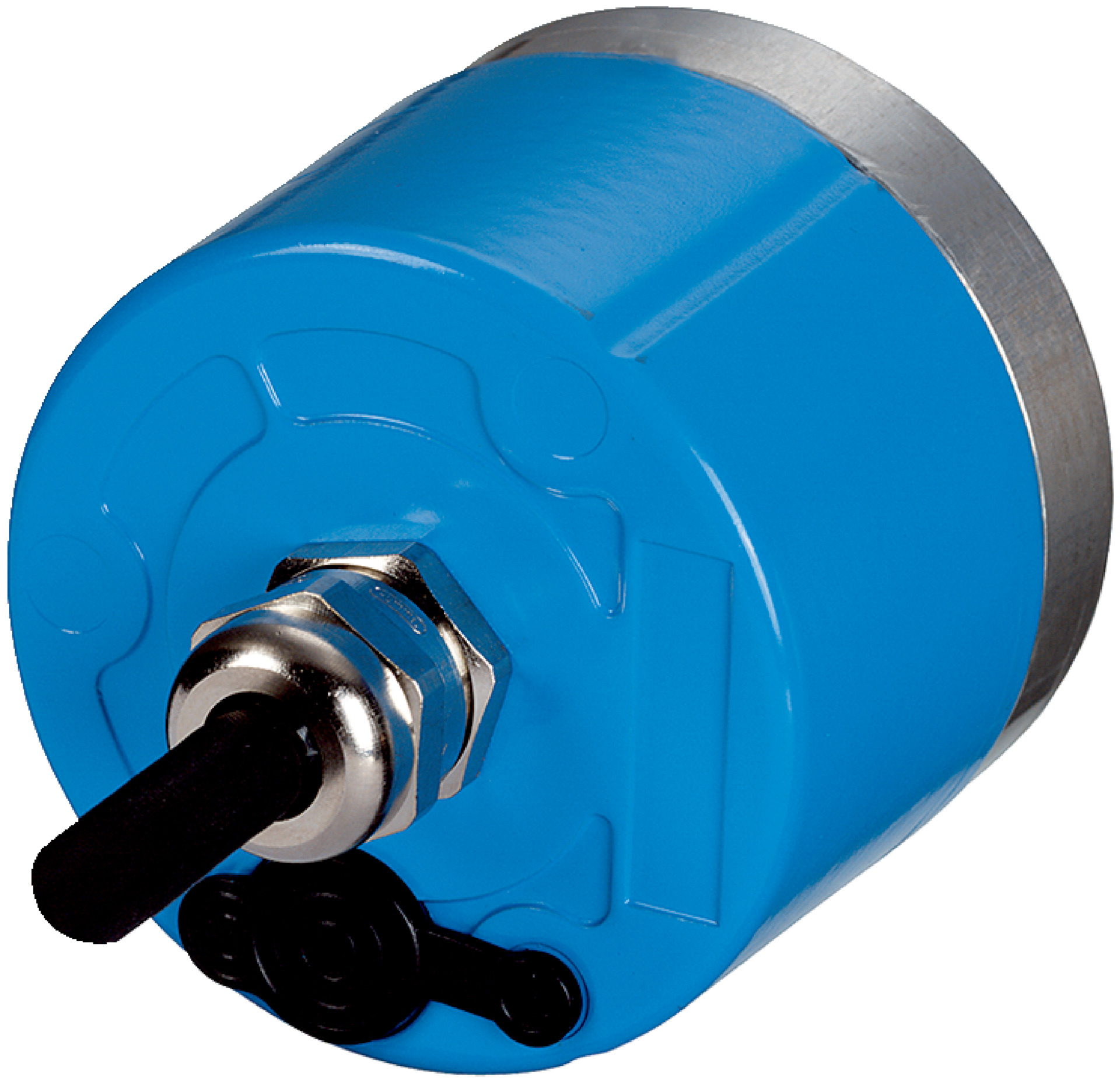

Rotary Encoder ARS60-H1R00512 | 512 Steps/Rev | IP66 Rated | Solid Shaft | by SICK
The ARS60-H1R00512 rotary encoder delivers high precision with 512 steps per revolution, making it ideal for industrial automation and robotics. Its robust aluminum die cast housing ensures durability with an IP66 rating, while the wide operating temperature range of -20 °C to +85 °C allows for versatile applications. With excellent repeatability and a low operating torque, this encoder is perfect for motion control and feedback systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H1R00512 | 512 Steps/Rev | IP66 Rated | Solid Shaft | by SICK
Brand: SICK
SKU: 1035867
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Encoder, Angular Encoder, SICK ARS60 Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 512 (9 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Code sequence parameter adjustable: CW increasing when viewing clockwise rotating shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 22-wire, axial, 1.5 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft characteristics: With flat
- Housing material: Aluminum die cast
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C without package
- Resistance to shocks: 50 g, 11 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 512 steps per revolution (9 bit)
- Solid shaft with servo flange and 6 mm diameter shaft with flat
- Robust aluminum die cast housing with IP66 rating
- Low start-up torque of typically 0.25 Ncm and operating torque of 0.2 Ncm
- High operating speed up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Excellent repeatability with standard deviation of 0.005°
- Parallel data communication interface with binary code output
- Wide operating temperature range from -20 °C to +85 °C
- Certified for EMC according to EN 61000-6-2 and EN 61000-6-3
- Complies with multiple international conformity declarations including EU, UK, ACMA, cULus, and China-RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-H1R00512 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related motion control applications.
