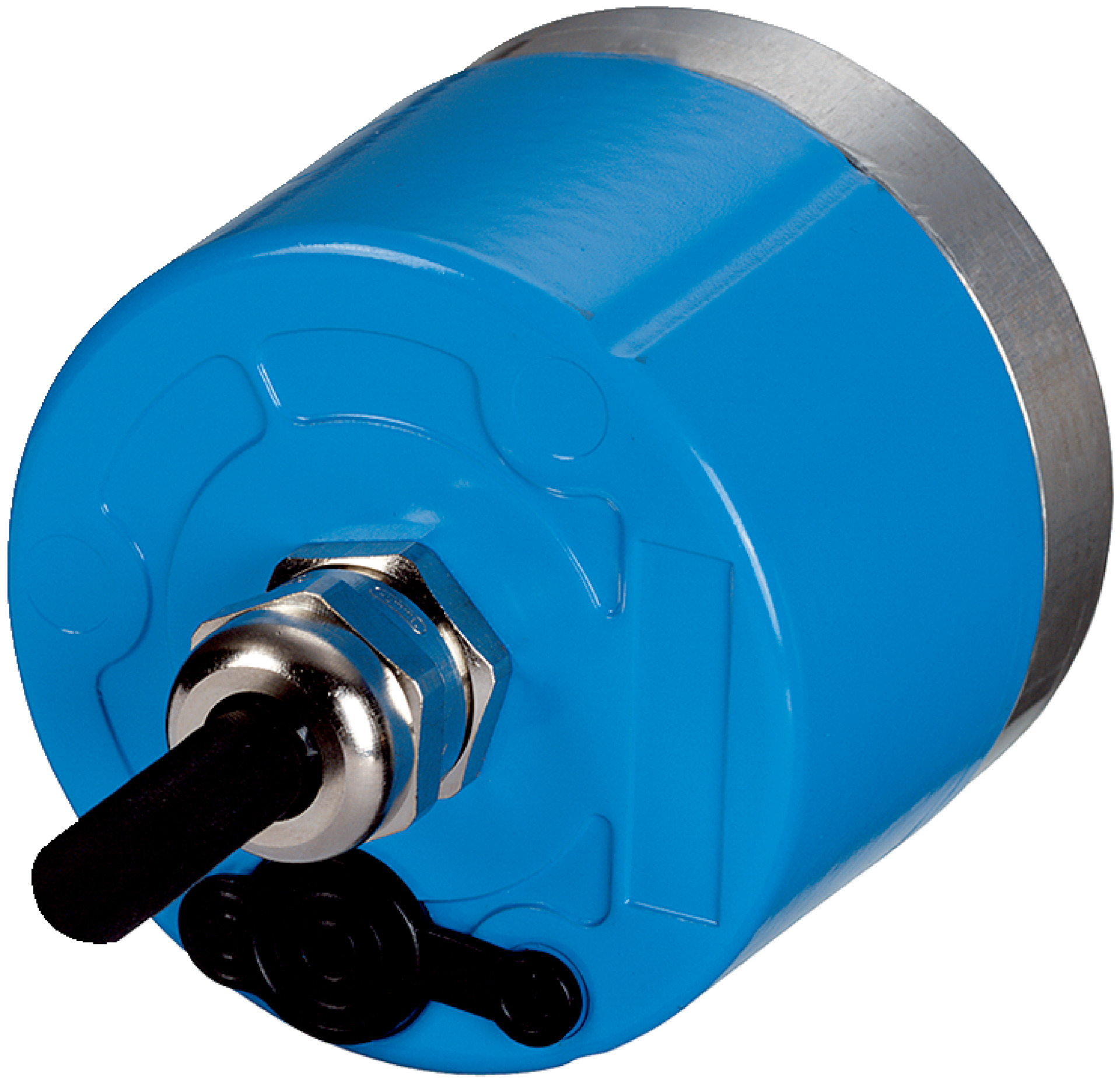

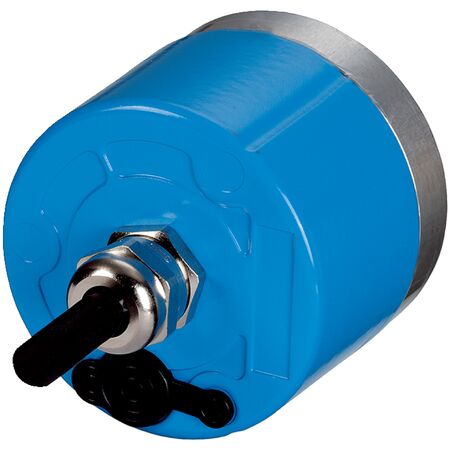

Rotary Encoder ARS60-H1R32768 | 32,768 Steps/Rev | IP66 Enclosure | by SICK
The ARS60-H1R32768 rotary encoder offers high resolution with 32,768 steps per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust aluminum housing and IP66 rating, it withstands harsh environments while providing reliable performance. Perfect for robotics and machine tool monitoring, this encoder ensures low operating torque and high mechanical durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H1R32768 | 32,768 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1031719
Alternatively Known As: Rotary Encoder, High-Resolution Encoder, ARS60 Encoder, SICK Rotary Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,768 (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (cable)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Solid shaft with servo flange and 6 mm diameter shaft
- Robust aluminum die cast housing with IP66 cable enclosure rating
- Low operating torque of typically 0.2 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Wide operating temperature range from -20°C to +85°C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Cable connection with 22 wires, 1.5 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption (typ. 90 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-H1R32768 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
