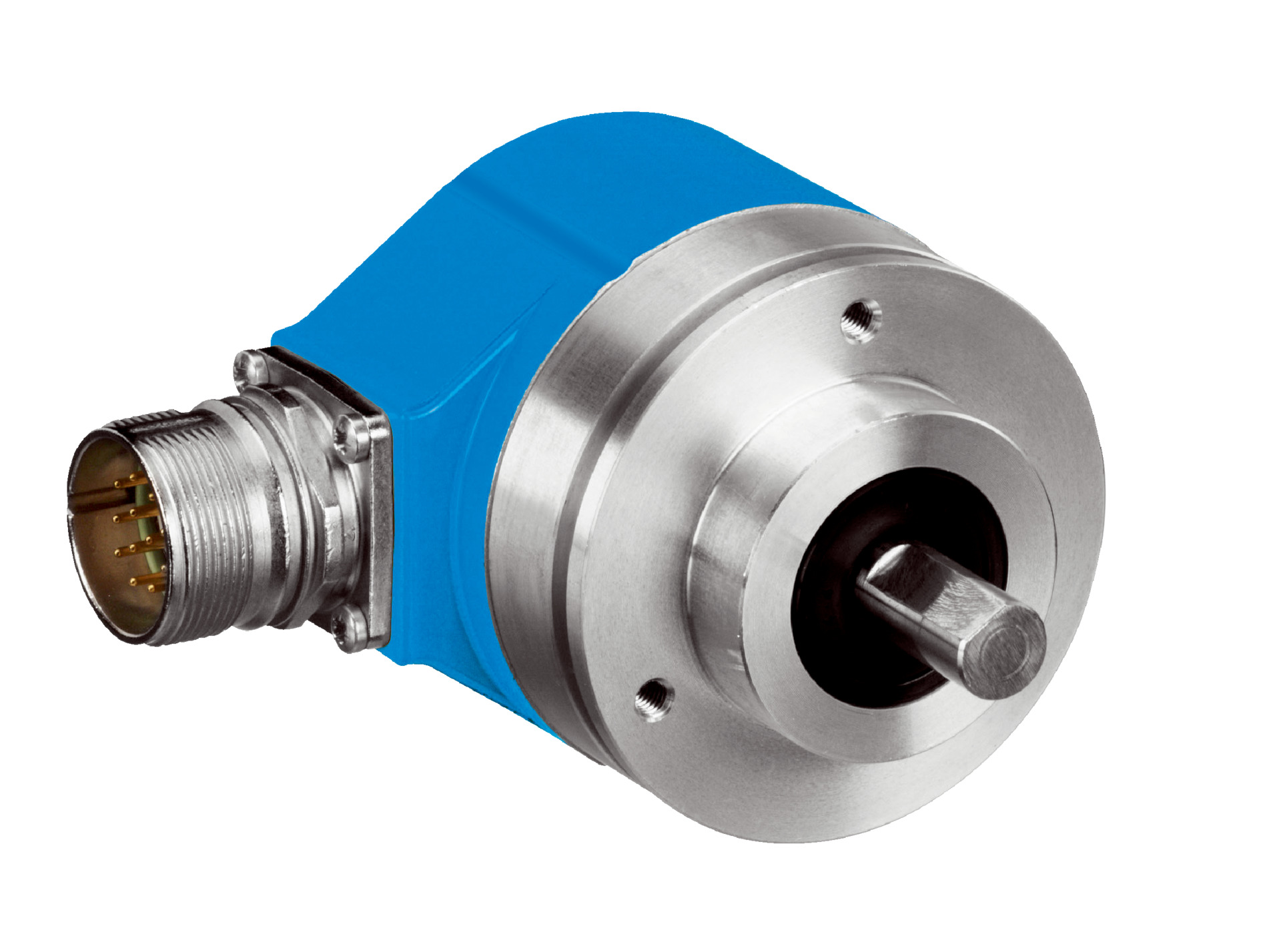

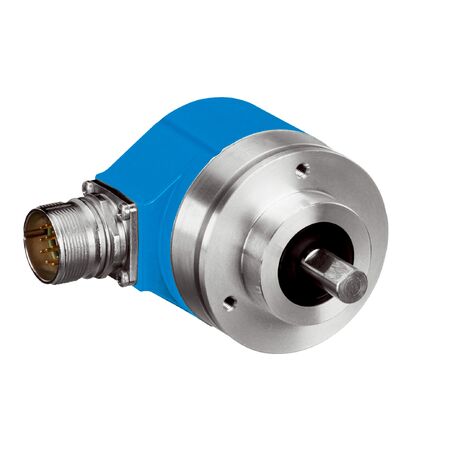

Rotary Encoder ARS60-H4A00064 | 64 Steps per Revolution | IP65 Rated | Solid Shaft Design | by SICK
The Rotary Encoder ARS60-H4A00064 features high resolution with 64 steps per revolution and a robust solid shaft design, making it ideal for precision measurement in industrial automation and control systems. With an IP65 rated enclosure, it offers protection against dust and water, ensuring reliable performance in challenging environments. Perfect for robotics and motion control applications, this encoder is built to withstand shocks and vibrations while providing accurate position and speed feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H4A00064 | 64 Steps per Revolution | IP65 Rated | Solid Shaft Design | by SICK
Brand: SICK
SKU: 1035206
Alternatively Known As: Rotary Encoder, Incremental Encoder, Angular Position Sensor, Shaft Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Maximum resolution: 64 steps per revolution
- Measuring step: 360° divided by number of steps
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Code sequence parameter adjustable: Clockwise increasing
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Male connector, M23, 21-pin, radial
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x Us, Logic L = 0 to 0.3 x Us
- Actuation of set button: ≥ 100 ms
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft characteristics: With flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 64 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for efficient performance
- High resistance to shocks and vibrations
- Parallel data communication interface
- Fast initialization time of 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK ARS60-H4A00064 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
