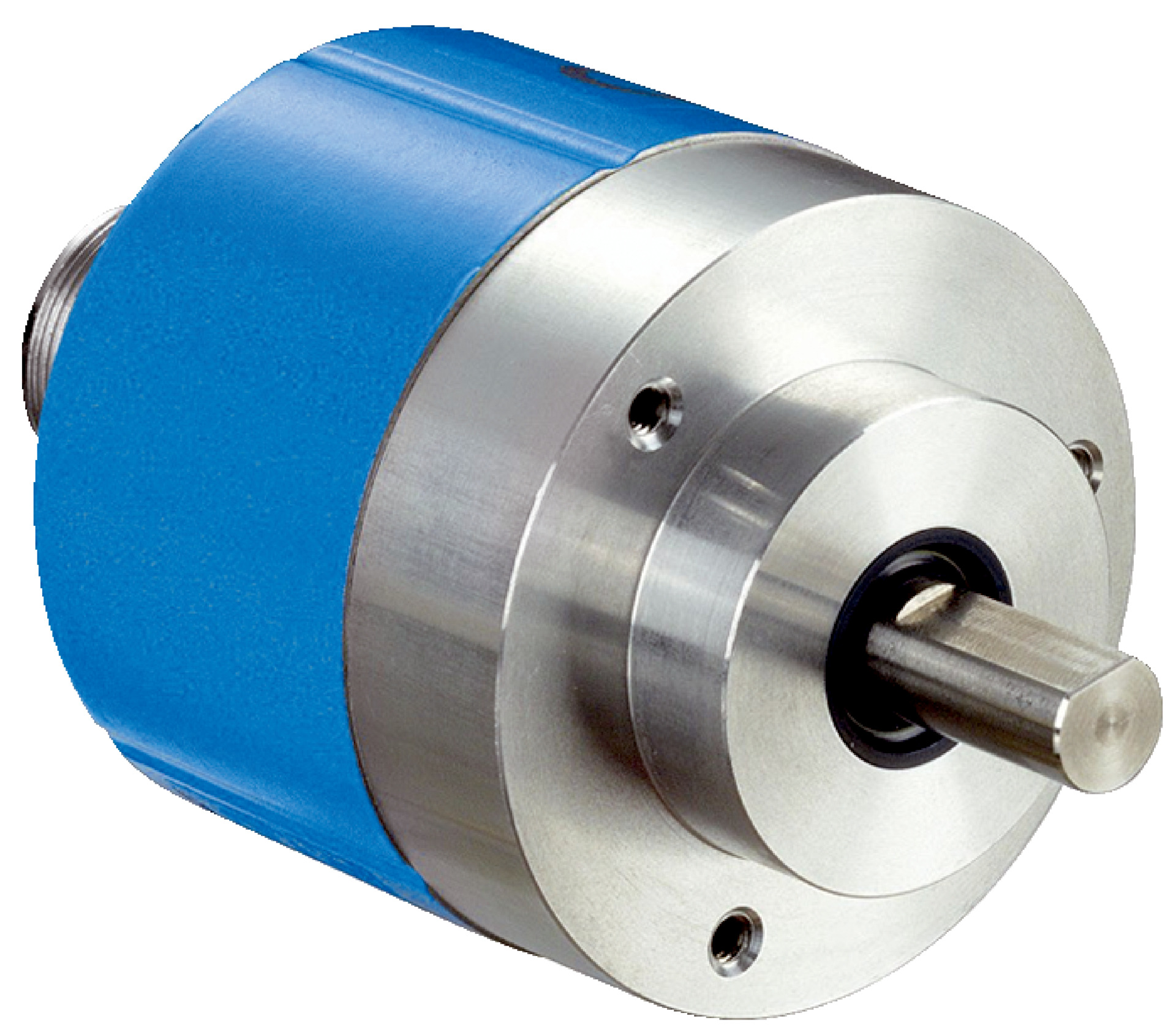

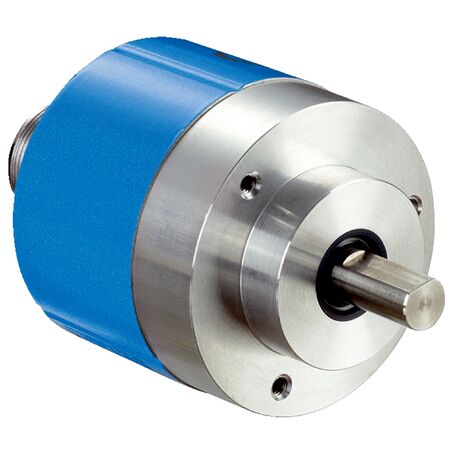

Rotary Encoder ARS60-H4B00064 | 64 Steps per Revolution | IP65 Rated | Robust Aluminum Housing | by SICK
The Rotary Encoder ARS60-H4B00064 offers high precision with 64 steps per revolution and a robust aluminum die-cast housing. Ideal for industrial automation and robotics, it features an IP65 rated enclosure for protection against dust and water, ensuring reliable performance in harsh environments. With a wide operating temperature range from -20°C to +85°C, this encoder is built for longevity and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H4B00064 | 64 Steps per Revolution | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1034911
Alternatively Known As: Rotary Encoder, Incremental Encoder, Angular Position Sensor, Shaft Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 64 (6 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 64 steps per revolution (6 bit)
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low operating torque for efficient performance
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data communication interface with binary code output
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing processes
- Position and speed feedback in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK ARS60-H4B00064 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
