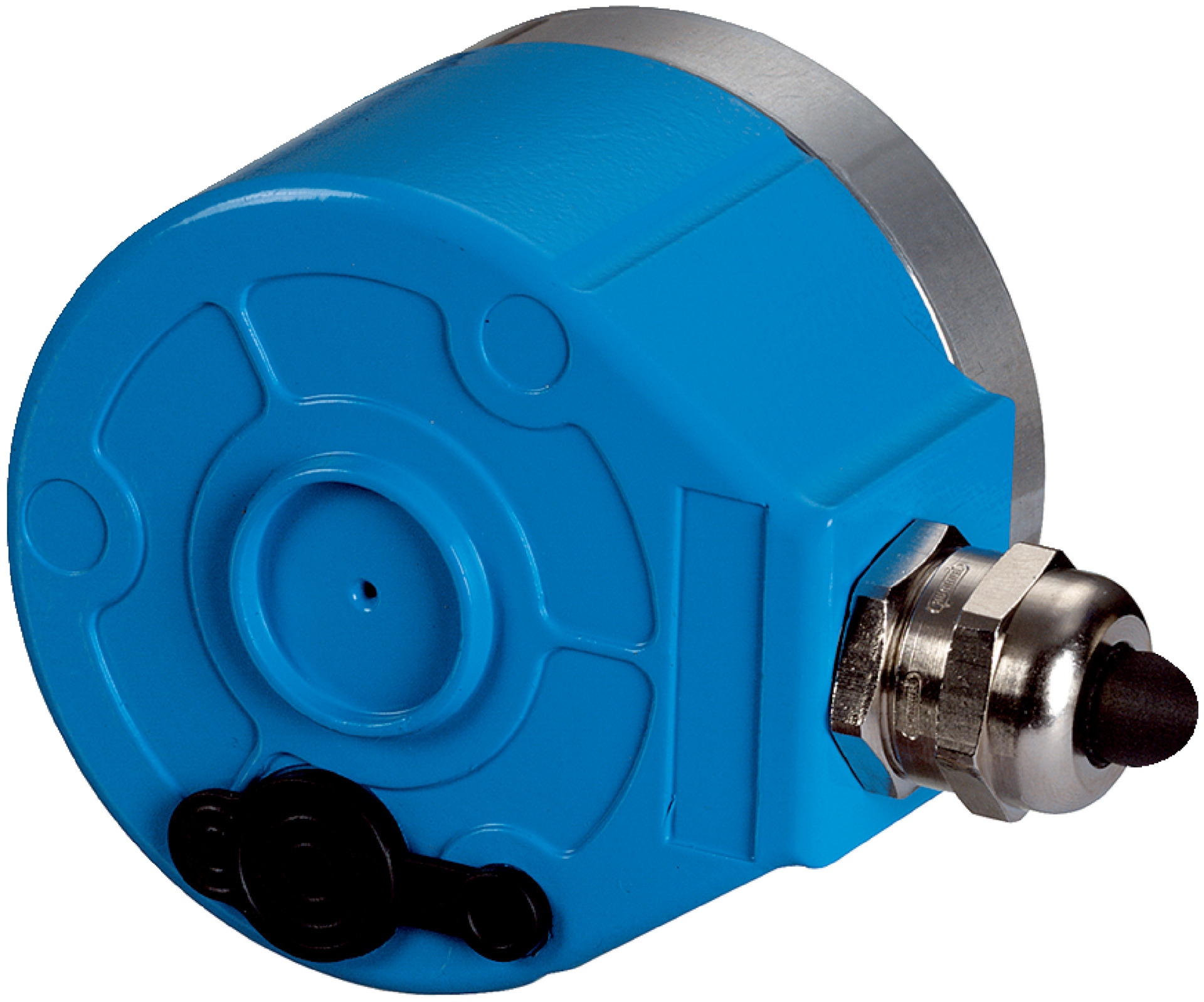

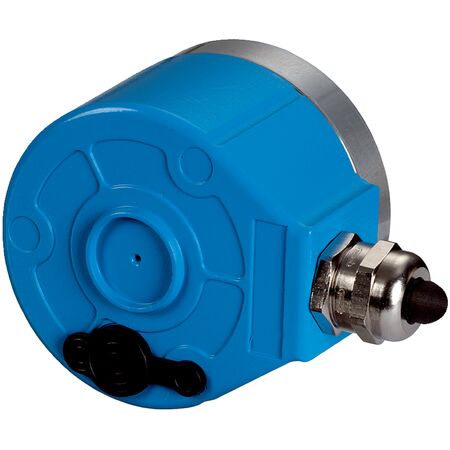

Rotary Encoder ARS60-H4L03600 | 3600 Steps/Rev | IP66 Enclosure | High-Resolution | by SICK
The Rotary Encoder ARS60-H4L03600 features a high resolution of 3,600 steps per revolution, making it ideal for precision measurement and industrial automation applications. With a robust aluminum die cast housing and an IP66 rated enclosure, it ensures reliable performance in harsh environments. Designed for easy installation and fast initialization, this encoder is perfect for robotics, motion control, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H4L03600 | 3600 Steps/Rev | IP66 Enclosure | High-Resolution | by SICK
Brand: SICK
SKU: 1031694
Alternatively Known As: Rotary Encoder, Incremental Encoder, High-Resolution Encoder, Industrial Encoder, Shaft Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 3,600
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typ. 90 mA
- Switching level of control inputs: Logic H = 0.7 x U S, Logic L = 0 to 0.3 x U S
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Housing material: Aluminum die cast
- Start up torque: Typ. 0.4 Ncm
- Operating torque: Typ. 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 3,600 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for efficient performance
- High resistance to shock (50 g) and vibration (20 g)
- Cable connection with 22 wires, 3 meters radial length
- Fast initialization time of 80 ms
- Binary code output with adjustable code sequence
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current (typ. 90 mA)
- Robust housing protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-H4L03600 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
