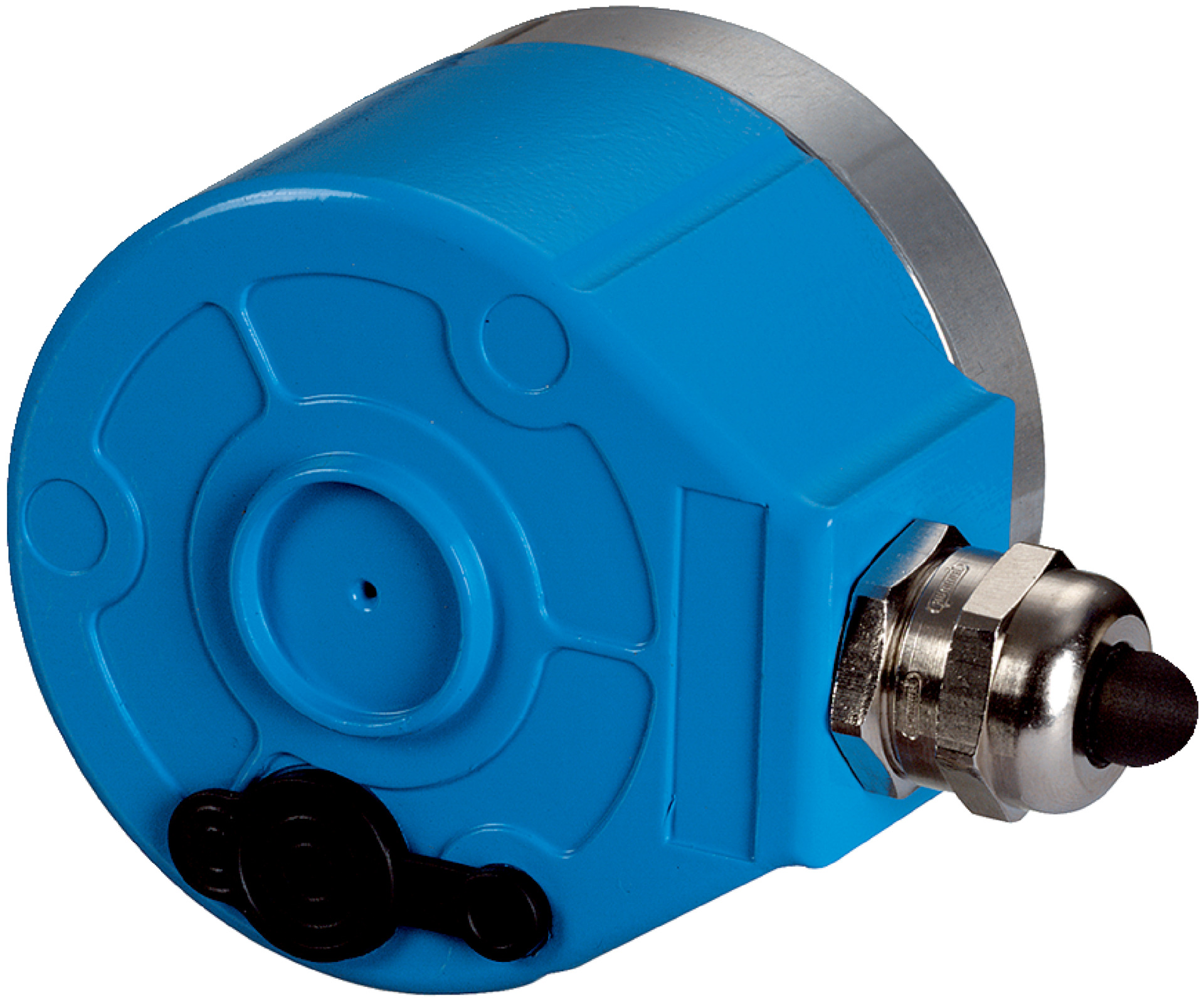

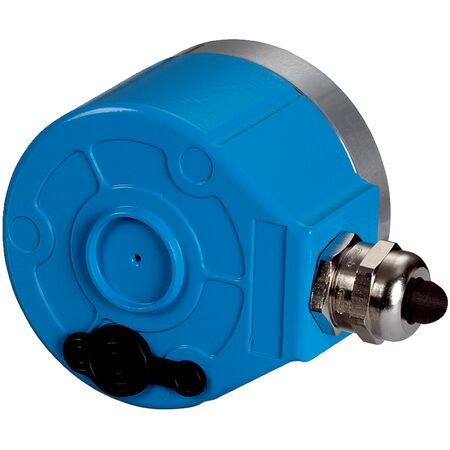

Rotary Encoder ARS60-H4L32768 | 32,768 Steps/Rev | IP66 Rated | High Mechanical Durability | by SICK
The Rotary Encoder ARS60-H4L32768 offers high resolution with 32,768 steps per revolution, making it ideal for industrial automation and precision measurement applications. With a robust aluminum die cast housing and an IP66 rated enclosure, it ensures durability and protection against dust and water. Designed for high accuracy and reliability, this encoder is perfect for robotics and motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,768 (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: 22-wire cable, radial, 3 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque of typically 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time of 80 ms
- Parallel data communication interface
- High resistance to shocks (50 g) and vibration (20 g)
