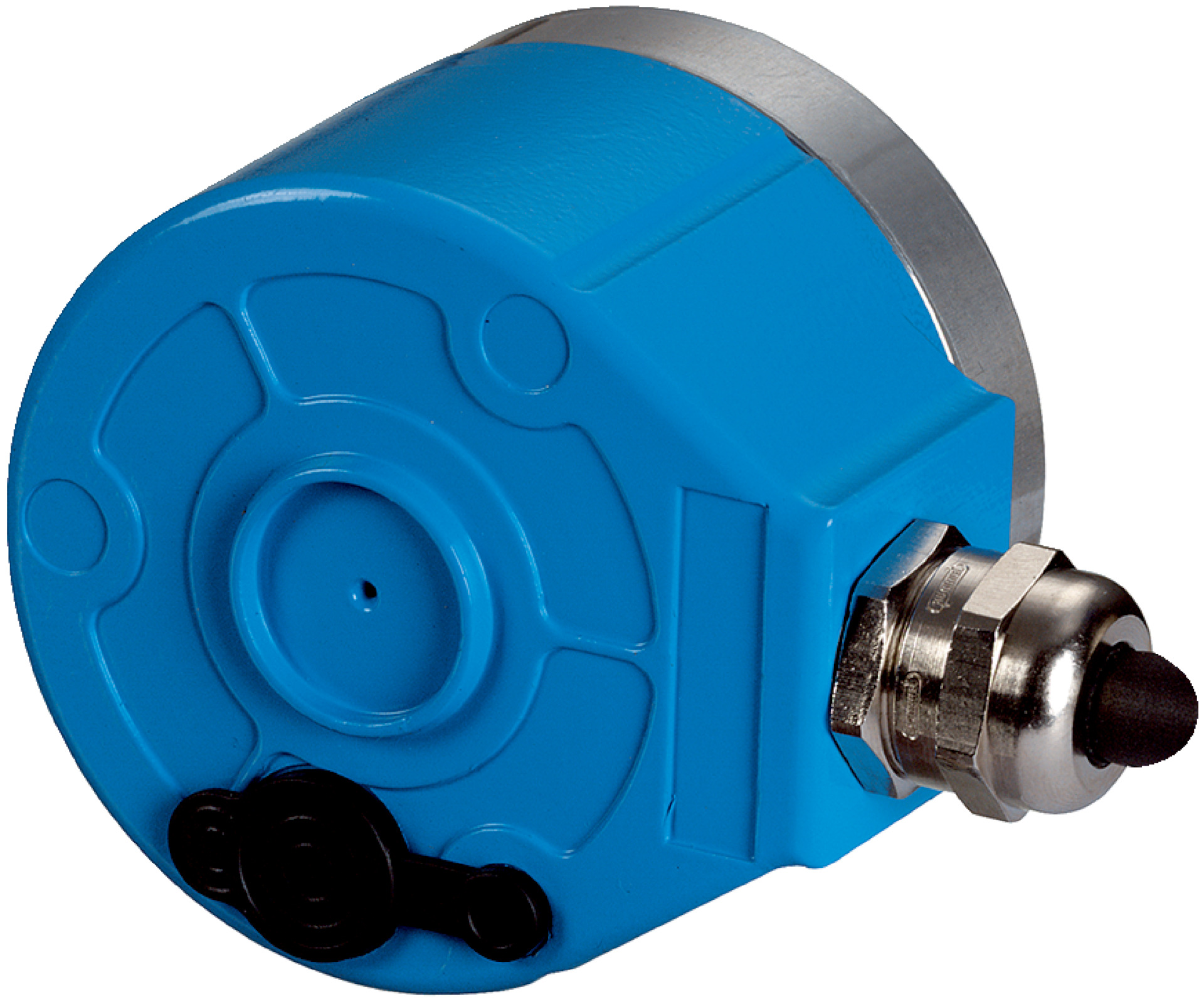

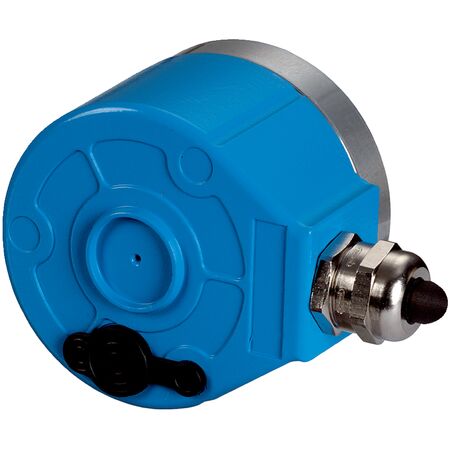

Rotary Encoder ARS60-H4M01000 | 1000 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
The ARS60-H4M01000 rotary encoder delivers high precision with 1,000 steps per revolution, making it ideal for industrial automation and robotics. With an IP66 rated enclosure, it ensures reliable performance in harsh environments, while its robust aluminum housing provides durability and longevity. Perfect for applications requiring precision measurement and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-H4M01000 | 1000 Steps/Rev | IP66 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1035647
Alternatively Known As: Rotary Encoder, Incremental Encoder, Industrial Encoder, Shaft Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 1,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: 22-wire cable, 5 m length
- Shaft diameter: 10 mm with flat
- Operating speed: Up to 6,000 min⁻¹ with shaft seal
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,000 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for efficient performance
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data communication interface
- Long bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder setup and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC (Electromagnetic Compatibility) standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ARS60-H4M01000 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
