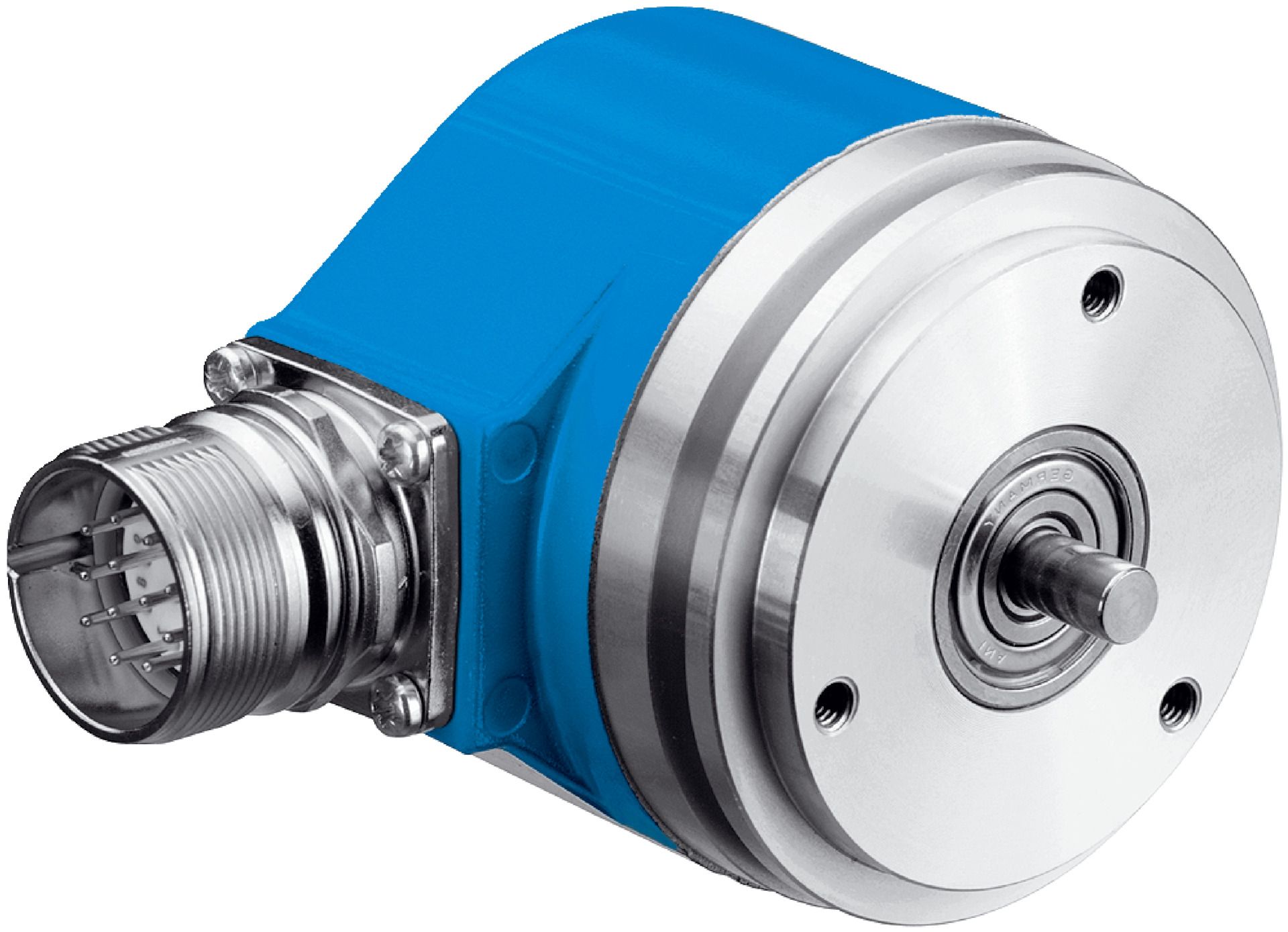

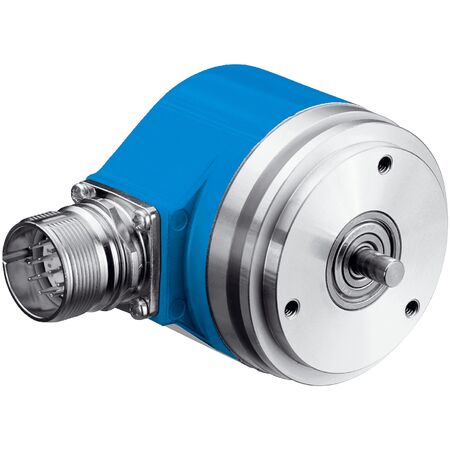

Rotary Encoder ARS60-J1A04096 | 4096 Steps/Rev | IP65 Rated | Low Start-Up Torque | by SICK

BRAND: SICK
SKU: 1034664
$2,228.00 List price: $2,800.40
+ −
30 Days Return Delivery Options
The Rotary Encoder ARS60-J1A04096 features a high resolution of 4,096 steps per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust aluminum housing and an IP65 rating, it withstands harsh environments while providing reliable performance. Designed for robotics and servo motor feedback, this encoder ensures long-lasting operation with a bearing lifetime of 3.6 x 10^9 revolutions.

Product Name/Title: Rotary Encoder ARS60-J1A04096 | 4096 Steps/Rev | IP65 Rated | Low Start-Up Torque | by SICK

Brand: SICK

SKU: 1034664

Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Encoder, Shaft Encoder, Industrial Encoder

Technical Specifications
  • Resolution: 4,096 steps per revolution (12 bit)
  • Measuring step deviation: 0.005°
  • Error limits: 0.035°
  • Repeatability standard deviation: 0.005°
  • Communication interface: Parallel data world, BCD code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Shaft diameter: 6 mm with flat
  • Shaft length: 10 mm
  • Start-up torque: Typically 0.25 Ncm
  • Operating torque: Typically 0.2 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Moment of inertia of rotor: 48 gcm²
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Operating temperature: -20°C to +85°C
  • Storage temperature: -40°C to +100°C
  • Enclosure rating: IP65
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 40mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 4,096 steps per revolution (12 bit)
  • Solid shaft with servo flange and 6 mm diameter
  • Robust aluminum die cast housing with IP65 rating
  • Low start-up torque of typically 0.25 Ncm
  • Operating temperature range from -20°C to +85°C
  • High resistance to shock (50 g) and vibration (20 g)
  • Parallel data communication interface with BCD code
  • Long bearing lifetime of 3.6 x 10^9 revolutions
  • Mean time to dangerous failure (MTTFD) of 300 years
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure optimal performance and safety.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Precision measurement and positioning
  • Machine tool and manufacturing equipment
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low operating current (typ. 90 mA)
  • Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-J1A04096 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
