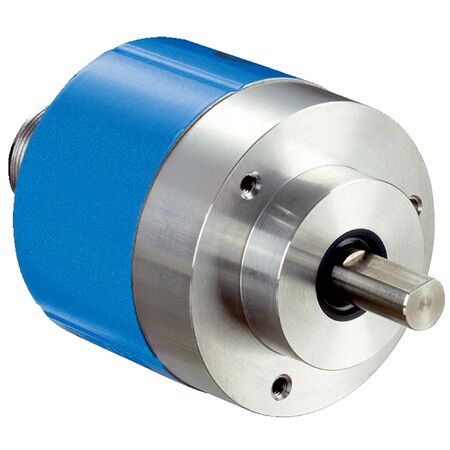

Rotary Encoder ARS60-J4B00720 | 720 Steps/Rev | IP65 Enclosure | Robust Aluminum Housing | by SICK
The Rotary Encoder ARS60-J4B00720 offers high precision with 720 steps per revolution, making it ideal for industrial automation and robotics applications. With an IP65 rated enclosure, it ensures protection against dust and water, while its robust aluminum housing provides durability in demanding environments. Designed for reliable position and speed feedback, this encoder is perfect for precision measurement in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Encoder ARS60-J4B00720 | 720 Steps/Rev | IP65 Enclosure | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1035299
Alternatively Known As: Rotary Encoder, Incremental Encoder, Position Encoder, Shaft Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 720 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: BCD
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 10 mm with flat
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 720 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low operating and start-up torque
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks and vibrations
- Parallel data communication interface with BCD code
- Fast initialization time of 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-J4B00720 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
