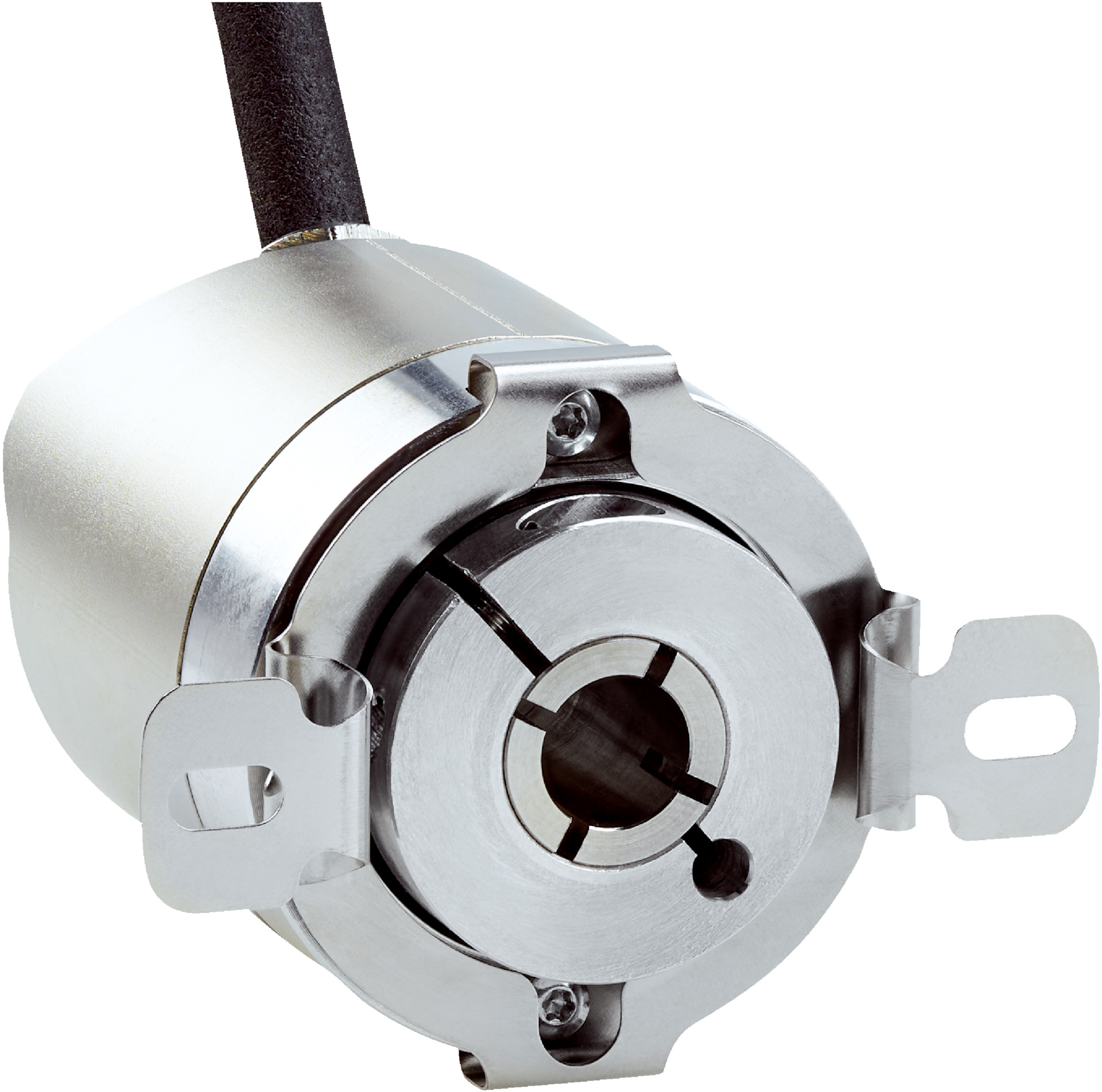

Rotary Encoder CANopen | High Resolution 16,384 Steps | IP66/IP67 Rated | by SICK
The Rotary Encoder CANopen is engineered for high precision with a maximum resolution of 16,384 steps per revolution and 4,096 revolutions. Ideal for industrial automation and robotics, it features a robust mechanical design with a stainless steel shaft and operates in extreme temperatures from -40°C to +85°C. With an IP66/IP67 rating, this encoder is built to withstand harsh environments while ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s (default 125 kbit/s)
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 5-wire cable, 1.5 m
- Mechanical design: Blind hollow shaft, 8 mm diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP66/IP67
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Wide operating temperature range from -40°C to +85°C
- IP66 and IP67 rated enclosure for harsh environments
- Low power consumption of ≤ 1.5 W
- Reverse polarity protection included
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary encoding
- Machine tools and manufacturing equipment
- Process control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

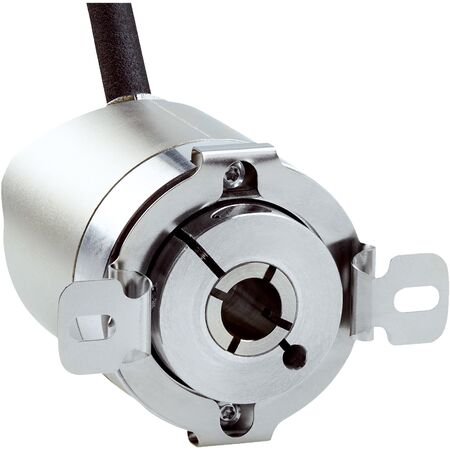

The SICK AHM36A-BBCK014x12 rotary encoder is available for immediate purchase, ideal for industrial automation and control applications requiring high precision and reliability.
