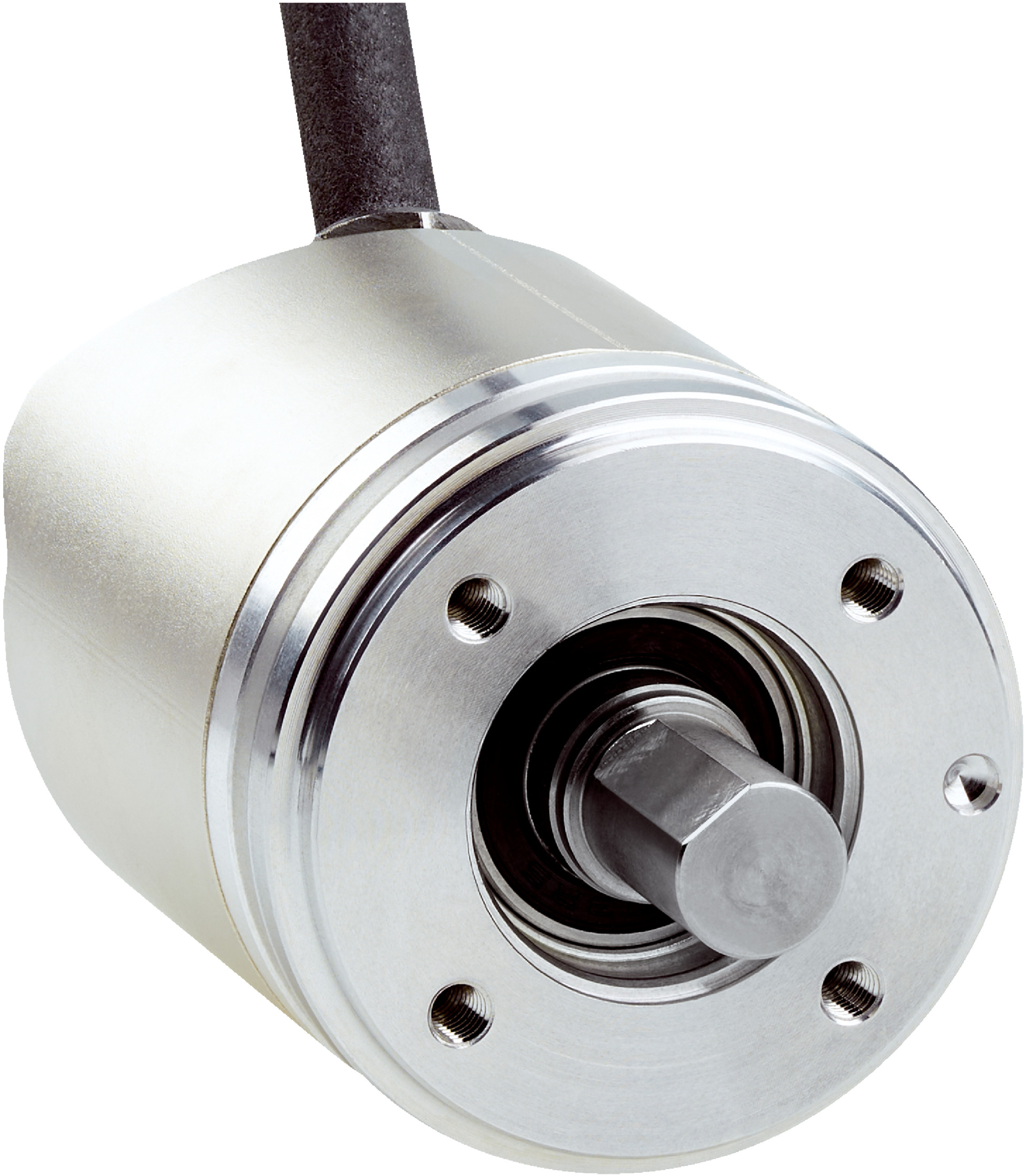

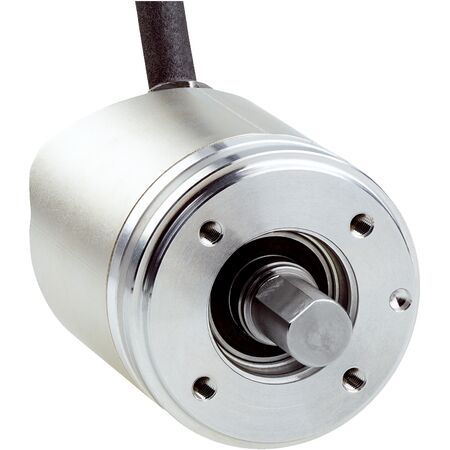

Rotary Encoder IO-Link | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The Rotary Encoder IO-Link offers high resolution with 16,384 steps per revolution, making it ideal for industrial automation and precise motion control applications. With an IP66 and IP67 rated enclosure, it withstands harsh environments while providing fast initialization and comprehensive diagnostics. Perfect for servo motor feedback systems and robotics, this encoder ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed, errors and warnings
- Connection type: 4-wire cable, 5 m length
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 10 mm with flat
- Weight: 0.12 kg
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Start-up and operating torque: < 1 Ncm at 20 °C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP66 and IP67
- Operating temperature range: -40 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Machine tool positioning
- Process control requiring high resolution and reliability
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36A-S2QM016384 rotary encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
