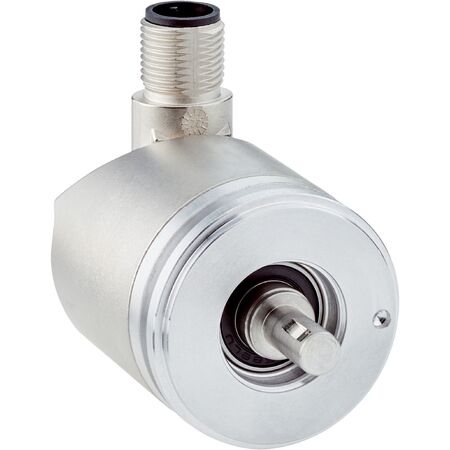

Rotary Encoder IO-Link | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The Rotary Encoder IO-Link is engineered for precise position and speed measurement in industrial automation. With a high resolution of 16,384 steps per revolution and robust IP66/IP67 rated enclosure, it excels in harsh environments. Ideal for machine control and monitoring systems, this encoder features low power consumption and smart sensor capabilities for enhanced diagnostics and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 s
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection type: Male connector, M12, 4-pin
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 12 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc
- Start up torque: < 1 Ncm at +20 °C
- Operating torque: < 1 Ncm at +20 °C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Enclosure rating: IP66, IP67
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40 °C to +85 °C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Smart sensor capabilities including enhanced sensing, diagnosis, and smart tasks
- High shock and vibration resistance (100 g shock, 20 g vibration)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration of the IO-Link interface and mechanical mounting.
Applications
- Industrial automation for precise position and speed measurement
- Length measurement and trigger applications
- Machine control and monitoring systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-SDQC000A30 rotary encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
