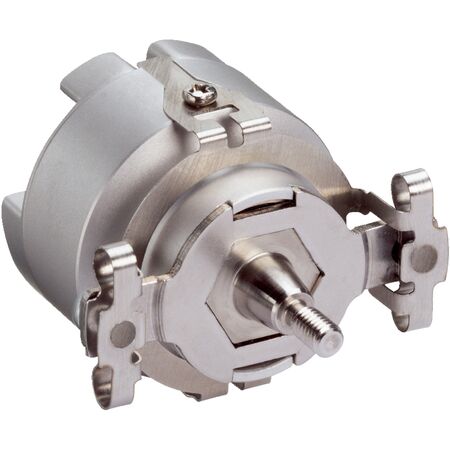

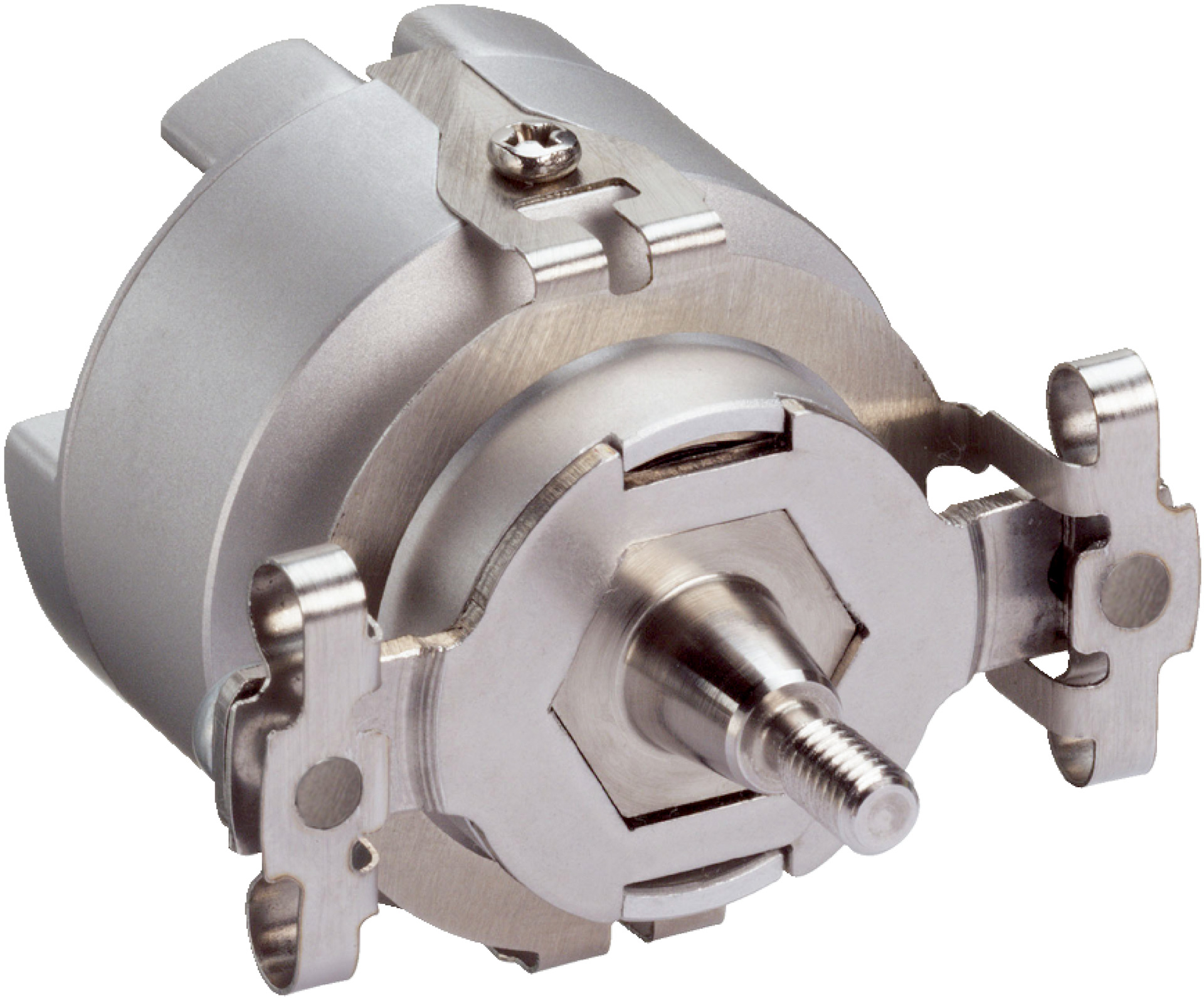

Product Name/Title: Rotary Encoder SKM36-HZA0-S04 | 16,777,216 Total Steps | 4,096 Absolute Revolutions | IP50 Enclosure | by SICK
Brand: SICK
SKU: 1054076
Alternatively Known As: Rotary Encoder, Absolute Encoder, HIPERFACE Encoder, Shaft Encoder, Stator Coupling Encoder
Technical Specifications
- Sine/cosine periods per revolution: 128
- Number of absolute ascertainable revolutions: 4,096
- Total number of steps: 16,777,216
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- Operating speed: ≤ 9,000 min⁻¹
- Available memory area: 1,792 Byte
- System accuracy: ±120″
- Type of code: Binary
- Communication interface: HIPERFACE®
- Connection type: Male connector, 8-pin, radial
- Supply voltage: 7 V DC to 12 V DC
- Recommended supply voltage: 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Shaft version: Tapered shaft
- Flange type: Spring mounting plate, stator coupling
- Moment of inertia of rotor: 4.5 gcm²
- Operating torque: 0.2 Ncm
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- Operating temperature range: –20 °C to +110 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 50 g, 10 Hz to 2,000 Hz
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50 with mating plug inserted
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Customized stator coupling with 37 mm hole circle diameter
- High resolution with 16,777,216 total steps
- Absolute position measurement with 4,096 ascertainable revolutions
- Operating speed up to 9,000 min⁻¹
- Binary code output with HIPERFACE® communication interface
- Tapered shaft with spring mounting plate stator coupling
- Robust design with IP50 enclosure rating
- Wide operating temperature range from –20 °C to +110 °C
- Low operating torque of 0.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise shaft position measurement
- Robotics requiring high accuracy rotary encoders
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High precision reduces waste and improves efficiency in automated processes
- Durable design extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SKM36-HZA0-S04 encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
