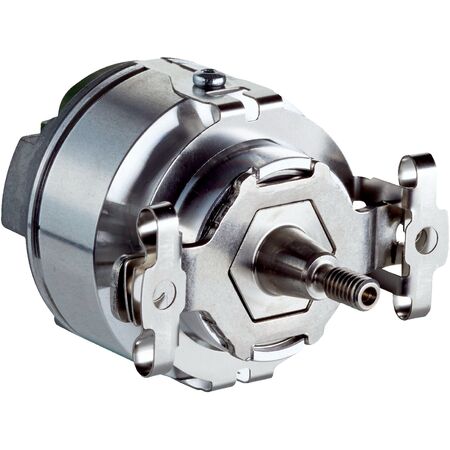

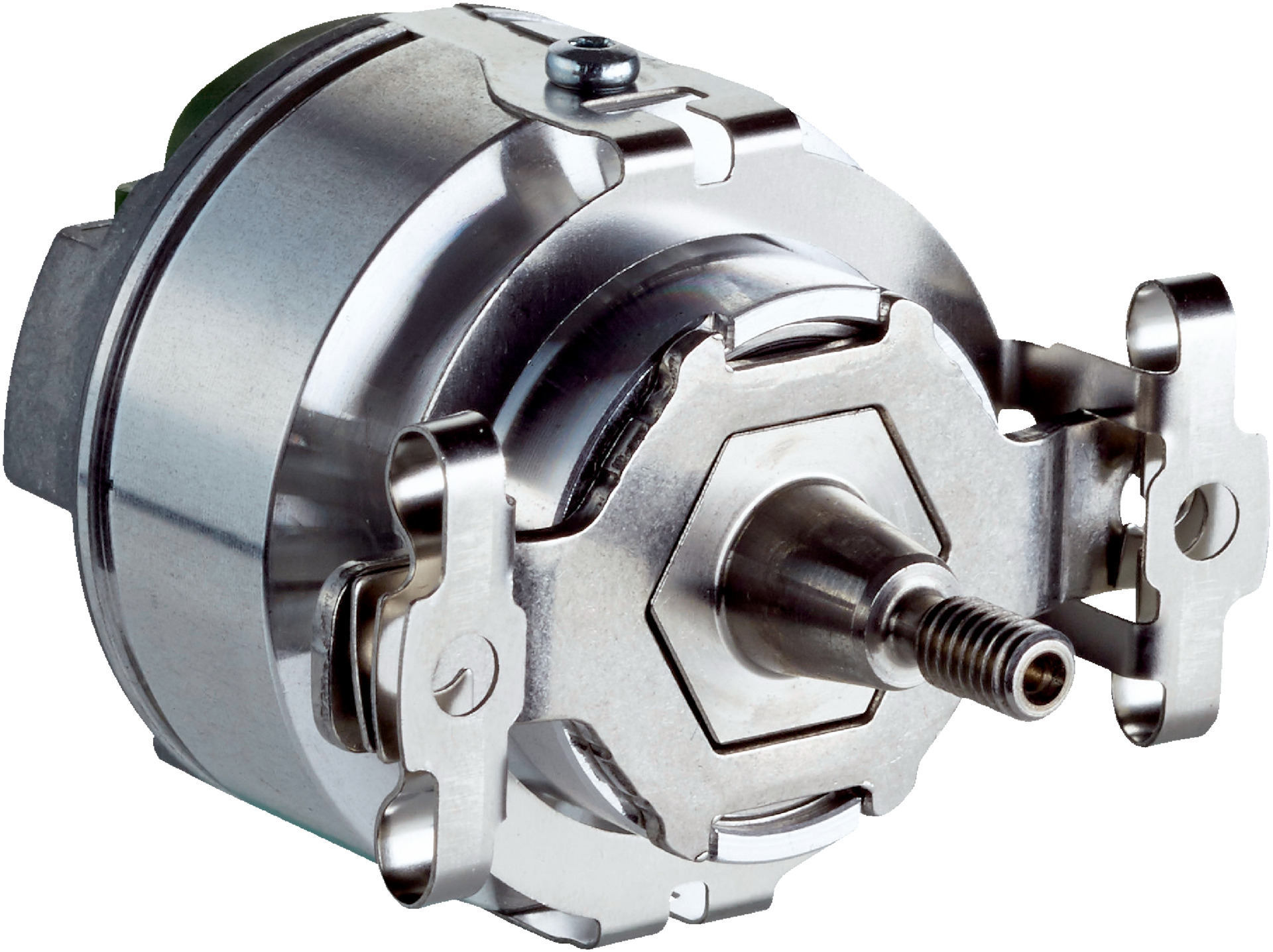

Rotary Encoder SKS36-HFA00S09 | 128 Sine/Cosine Periods | IP50 Rated | High Accuracy ±120″ | by SICK
The Rotary Encoder SKS36-HFA00S09 delivers exceptional performance with 128 sine/cosine periods per revolution and a high accuracy of ±120″. Designed for industrial automation and robotics, it features a durable ceramic ball bearing and operates at speeds up to 12,000 min⁻¹. With an IP50 enclosure rating, this encoder is perfect for precise position measurement in motion control systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sine/cosine periods per revolution: 128
- Total number of steps: 4,096
- Measuring step: 2.5″ with 12-bit interpolation
- Integral non-linearity: ±80″
- Differential non-linearity: ±40″
- Available memory area: 1,792 Byte
- Supply voltage: 7 V DC to 12 V DC, recommended 8 V DC
- Current consumption: 60 mA
- Output frequency for sine/cosine signals: ≤ 65 kHz
- Moment of inertia of rotor: 4.5 gcm²
- Angular acceleration: ≤ 500,000 rad/s²
- Start up torque: +0.3 Ncm
- Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Life of ball bearings: 3.6 x 10⁹ revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP50
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Ceramic ball bearing for enhanced durability
- High system accuracy of ±120″
- Operating speed up to 12,000 min⁻¹
- Binary code sequence with HIPERFACE® communication interface
- Spring mounting plate flange type with tapered shaft
- IP50 enclosure rating with mating plug inserted
- Operating temperature range from –20 °C to +110 °C
- Low operating torque of 0.2 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics requiring high accuracy rotary feedback
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Low power consumption with 60 mA current draw
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SKS36-HFA00S09 rotary encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
