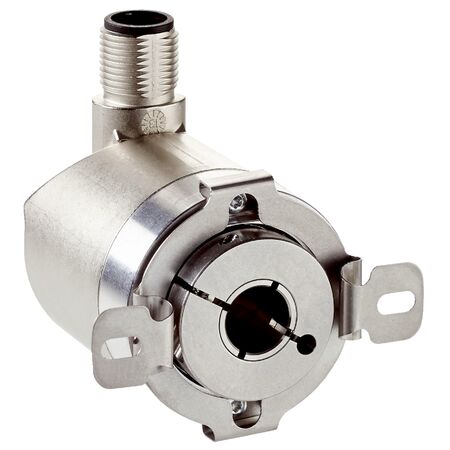

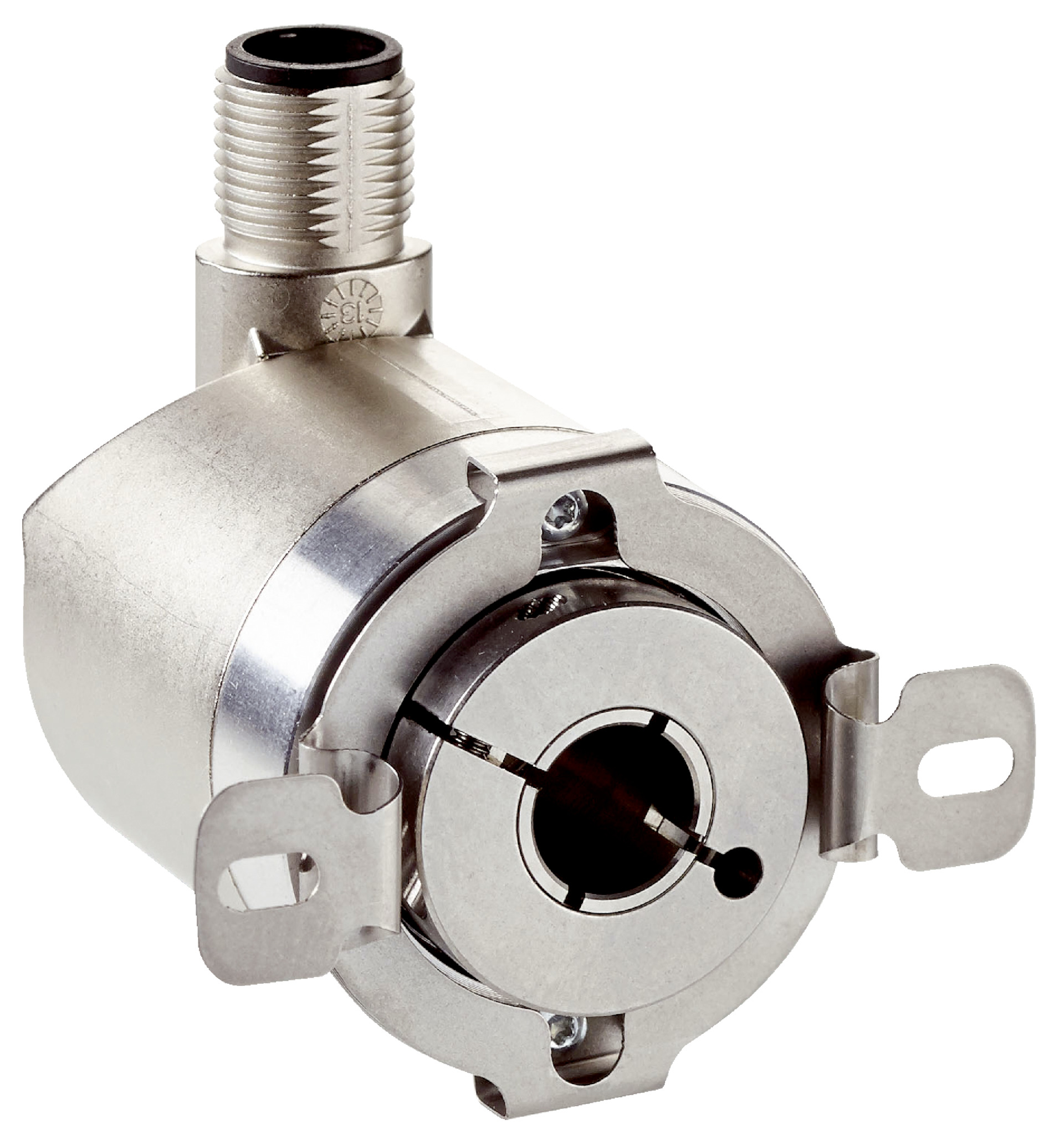

Rotary Encoder SSI AHS36B-BAAC003600 | 3600 Steps/Rev | IP65 Rated | by SICK
The Rotary Encoder SSI AHS36B-BAAC003600 offers high precision with 3,600 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust mechanical design featuring a stainless steel shaft and an IP65 rated enclosure, this encoder ensures reliable performance in demanding environments. Its low power consumption and fast initialization time enhance efficiency, making it a perfect choice for machine tools and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Steps per revolution: 3,600
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.25° at 20 °C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12, 8-pin connector
- Mechanical design: Blind hollow shaft with 6 mm diameter
- Shaft material: Stainless steel
- Housing material: Zinc with aluminum flange
- Operating temperature range: -20 °C to +70 °C
- Enclosure rating: IP65
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 3,600 steps per revolution
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W
- Reverse polarity protection
- Fast initialization time of 100 ms
- Communication via SSI interface with Gray code
- High reliability with MTTFD of 230 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with rotary encoders and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36B-BAAC003600 rotary encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
