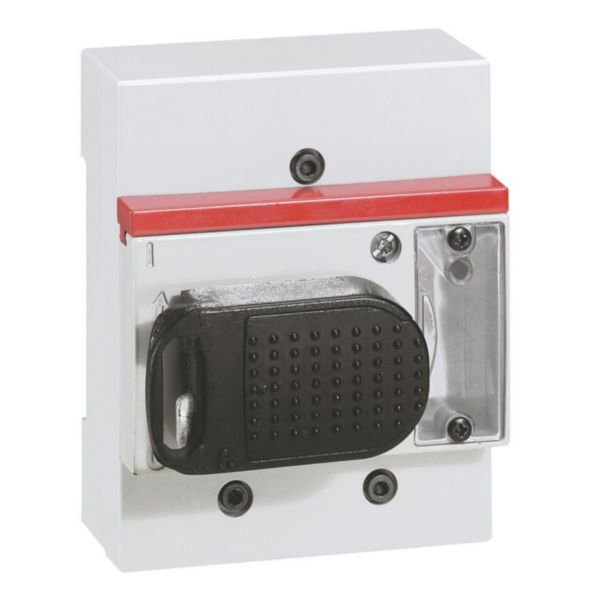

Rotary Handle for DRX 125 | Standard Grey | Direct Mount | MCCB Compatible | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 27176
$73.80 List price: $92.00
1 EA ($73.80 per EA)
+ −
30 Days Return Delivery Options
The Rotary Handle for DRX 125 is designed for seamless integration with thermal magnetic MCCBs, featuring a standard grey finish and direct mounting capability. Ideal for switching, control, and protection of low-voltage electrical lines, this handle ensures compliance with IEC 60947-2 and NEMA standards, making it a reliable choice for electricians and electrical installations.
Technical Specifications
  • Colour: Black/Grey
  • Suitable for emergency stop: No
  • With extension shaft: No
  • Suitable for power circuit breaker: Yes
  • Suitable for switch disconnector: Yes
  • Conforms to IEC 60947-2
  • Complies with NEMA standards
  • Includes M5 terminal for In ≤ 50 A and M8 terminal for In > 50 A
  • Includes fixing screws and insulating shields (2 for 3P, 3 for 4P)
  • Dimensions (H x L x W): 40mm x 100mm x 80mm
  • Weight: 0.3 kg
Key Features
  • Designed for DRX 125 thermal magnetic MCCBs
  • Standard grey rotary handle direct on DRX
  • Includes fixing screws and insulating shields
  • Conforms to IEC 60947-2 and complies with NEMA standards
  • Supplied with M5 terminal for In ≤ 50 A and M8 terminal for In > 50 A
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with MCCBs.
Applications
  • Switching, control, isolation, and protection of low-voltage electrical lines
  • Suitable for use with thermal magnetic MCCBs from 15 to 125 A
  • Compatible with power circuit breakers and switch disconnectors
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enables safe and efficient electrical circuit control reducing risk of electrical faults
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Rotary Handle for DRX 125 is available for immediate purchase, ideal for electrical switchboards and power cabinet applications.

Y1306C (Y1306C.pdf, 555 Kb) [Download]

LE04940AB (LE04940AB.pdf, 1,933 Kb) [Download]

ex223001_0147 (ex223001_0147.pdf, 105 Kb) [Download]

ex223001_0132 (ex223001_0132.pdf, 131 Kb) [Download]

ex223001_0136 (ex223001_0136.pdf, 66 Kb) [Download]

ex223001_0138 (ex223001_0138.pdf, 47 Kb) [Download]
