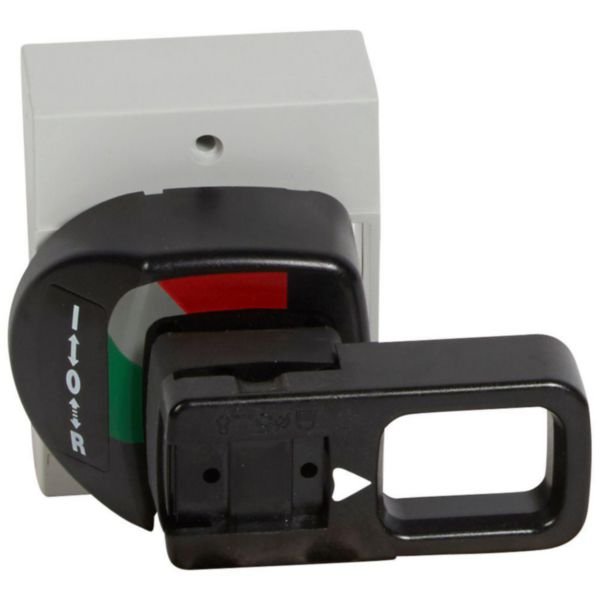

Rotary Handle for DRX 125 | Vari-Depth Design | Standard Grey | @Each of 1 | by Legrand
The Rotary Handle for DRX 125 is designed for seamless operation of thermal magnetic MCCBs from 15 to 125 A. This vari-depth handle includes essential mounting accessories and a door locking mechanism, making it ideal for switching and controlling low-voltage electrical lines. Built for safety and compliance with IEC 60947-2 and NEMA standards, it ensures reliable performance in electrical switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Handle for DRX 125 | Vari-Depth Design | Standard Grey | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027177
Alternatively Known As: Rotary switch handle, MCCB rotary handle, DRX 125 handle, circuit breaker rotary handle
Technical Specifications
- Compatible with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- Includes connecting rod, bracket, drilling template, mounting accessories, and door locking mechanism
- Color: Standard grey
- Terminals: M5 for In ≤ 50 A, M8 for In > 50 A
- Includes insulating shields (2 for 3P, 3 for 4P)
- Conforms to IEC 60947-2 and NEMA standards
- Suitable for power circuit breaker and switch disconnector
- Not suitable for emergency stop
- Includes extension shaft
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Vari-depth rotary handle including connecting rod, bracket, drilling template, mounting accessories, and door locking mechanism
- Standard grey color
- Supplied with M5 terminal for In ≤ 50 A and M8 terminal for In > 50 A
- Includes fixing screws and insulating shields (2 for 3P and 3 for 4P)
- Conforms to IEC 60947-2 and complies with NEMA standards
- Suitable for emergency stop: No
- With extension shaft: Yes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with MCCBs.
Applications
- Switching, control, isolation, and protection of low-voltage electrical lines
- Suitable for use with DRX 125 thermal magnetic MCCBs from 15 to 125 A
- Compatible with power circuit breakers and switch disconnectors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables safe and efficient operation of electrical protection devices, reducing risk of electrical faults and associated environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand Rotary Handle for DRX 125 vari-depth handle standard grey is available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
