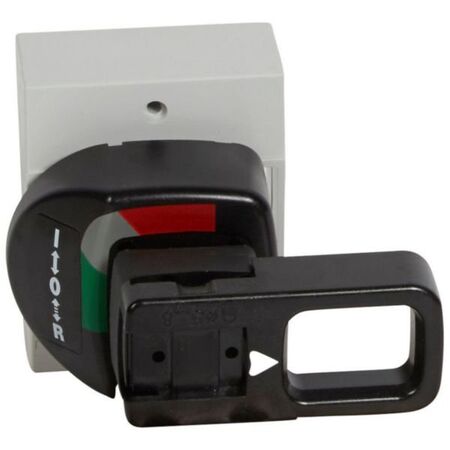

Rotary Handle for DRX 125 Vari-Depth Design Grey Legrand

BRAND: Legrand
SKU: 27177
$375.80 List price: $468.30
1 EA ($375.80 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Rotary Handle for DRX 125 is designed for seamless operation of thermal magnetic MCCBs from 15 to 125 A.
Technical Specifications
  • Compatible with DRX 125 thermal magnetic MCCBs from 15 to 125 A
  • Includes connecting rod, bracket, drilling template, mounting accessories, and door locking mechanism
  • Color: Standard grey
  • Terminals: M5 for In ≤ 50 A, M8 for In > 50 A
  • Includes insulating shields (2 for 3P, 3 for 4P)
  • Conforms to IEC 60947-2 and NEMA standards
  • Suitable for power circuit breaker and switch disconnector
  • Not suitable for emergency stop
  • Includes extension shaft
  • Dimensions (H x L x W): 50mm x 150mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Vari-depth rotary handle including connecting rod, bracket, drilling template, mounting accessories, and door locking mechanism
  • Standard grey color
  • Supplied with M5 terminal for In ≤ 50 A and M8 terminal for In > 50 A
  • Includes fixing screws and insulating shields (2 for 3P and 3 for 4P)
  • Conforms to IEC 60947-2 and complies with NEMA standards
  • Suitable for emergency stop: No
  • With extension shaft: Yes
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with MCCBs.
Applications
  • Switching, control, isolation, and protection of low-voltage electrical lines
  • Suitable for use with DRX 125 thermal magnetic MCCBs from 15 to 125 A
  • Compatible with power circuit breakers and switch disconnectors
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enables safe and efficient operation of electrical protection devices, reducing risk of electrical faults and associated environmental hazards
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.

Available Now

Legrand Rotary Handle for DRX 125 vari-depth handle standard grey is available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
