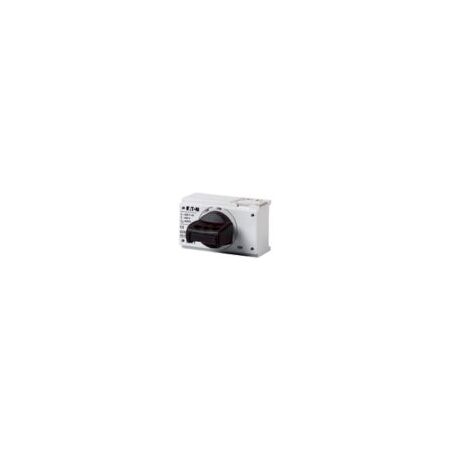

Rotary Handle for NZM2 Circuit Breaker | Lockable with Padlock | IP20 Protection | Black by Eaton
Rotary handle for NZM2 circuit breaker with lockable facility using up to 3 padlocks—ideal for enhancing safety in electrical installations. Built for industrial and commercial use, it features IP20 protection and a robust black design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Handle for NZM2 Circuit Breaker | Lockable with Padlock | IP20 Protection | Black by Eaton
Brand: Eaton
SKU: Y7-260127
Alternatively Known As: Rotary Handle for NZM2 Circuit Breaker, Lockable Circuit Breaker Handle, Eaton NZM Accessory Handle
Technical Specifications
- Product Name: Eaton Moeller series NZM operating element
- Activation type: Rotary handle
- Locking facility: Lockable on the 0 position using up to 3 padlocks
- Frame: NZM2
- Color: Black
- Fitted with: Padlock
- Type: Accessory Rotary handle on circuit-breaker
- Degree of protection / NEMA enclosure type: IP20, 4X, 12
- Mechanical function meets product standard requirements
- Corrosion resistance meets product standard requirements
- Verification of thermal stability and resistance to heat/fire meets product standard requirements
- Resistance to UV radiation meets product standard requirements
- Dimensions (H x L x W): 100mm x 85mm x 105mm
- Weight: 0.38 kg
Key Features
- Rotary handle with lockable facility on the 0 position using up to 3 padlocks
- Complete with rotary drive and can be combined with insulating surround MODAN
- Handle position detection by wire release can be retrofitted
- Enables operation of the switch with rotational movement and provides locking facilities
- Black color with padlock fitted
- Degree of protection: IP20, 4X, 12
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with switchgear.
Applications
- Used with NZM2(-4), PN2(-4), N(S)2(-4) power circuit breakers
- Suitable for power circuit breaker switch disconnector applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables secure operation and locking to prevent accidental switch operation, enhancing safety and reducing electrical hazards.
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton NZM2-XDV Rotary Handle is available now for immediate purchase. Ideal for use with NZM2 series molded case circuit breakers in industrial and commercial electrical installations.
