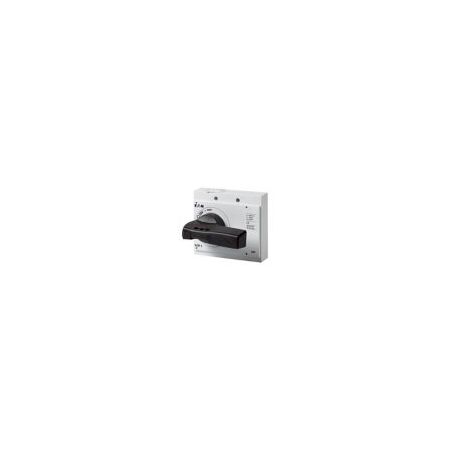

Rotary Handle for NZM3 Circuit Breaker | Lockable with Padlock | IP20 Protection | Black by Eaton
Enhance safety with the NZM3-XDV rotary handle, featuring a lockable design for up to 3 padlocks and IP20 protection. Ideal for industrial electrical switchgear, it ensures reliable operation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rotary Handle for NZM3 Circuit Breaker | Lockable with Padlock | IP20 Protection | Black by Eaton
Brand: Eaton
SKU: Y7-260129
Alternatively Known As: Rotary Handle for NZM3 Circuit Breaker, Lockable Circuit Breaker Handle, Eaton NZM3 Operating Element
Technical Specifications
- Product Length/Depth: 108 mm
- Product Height: 124 mm
- Product Width: 140 mm
- Product Weight: 0.881 kg
- Color: Black
- Fitted with: Padlock
- Frame: NZM3
- Activation type: Rotary handle
- Suitable for: Switch disconnector Power circuit breaker
- Locking facility: Lockable on the 0 position on the switch using up to 3 padlocks
- Type: Accessory Rotary handle on circuit-breaker
- Degree of protection / NEMA enclosure type: IP20 4X. 12
- Certifications: UL489 CE marking UL (Category Control Number DIHS) UL listed CSA (File No. 22086) CSA-C22.2 No. 5-09 UL (File No. E140305) CSA (Class No. 1437-01) IEC60947 CSA certified
- Dimensions (H x L x W): 124mm x 108mm x 140mm
- Weight: 0.9 kg
Key Features
- Lockable rotary handle with padlock facility for up to 3 padlocks
- Complete with rotary drive and compatible with insulating surround MODAN
- Handle position detection by wire release can be retrofitted
- Enables switch operation with rotational movement
- Provides locking facilities for safety
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with molded case circuit breakers and switchgear assembly to ensure compliance with safety standards.
Applications
- Industrial electrical switchgear
- Power circuit breaker operation
- Switch disconnector applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances safety and reliability of electrical systems, reducing risk of faults and associated environmental hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton Moeller NZM3-XDV Rotary Handle is available for immediate purchase, ideal for industrial and commercial electrical switchgear applications.
