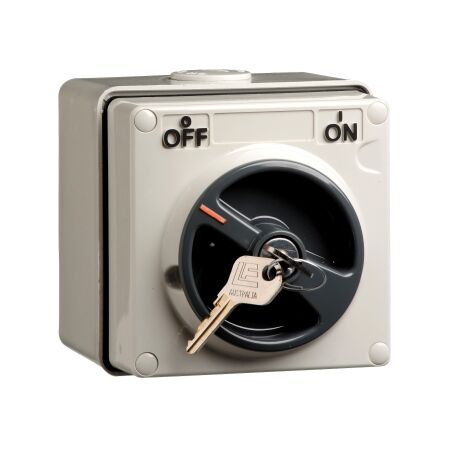

Rotary Key Lock Switch 1-Pole | 250VAC 20A | IP66 Rated | Grey by Clipsal
Rotary key lock switch with 250VAC and 20A rating—ideal for industrial and commercial control applications. Built for secure operation, with IP66 protection against dust and water ingress.
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Switch, 1 Pole, 250VAC, 20A, Common Key Lock, On/Off Locking Position - Grey
Brand: Clipsal
SKU: 56K2SW120CK-GY
Alternatively Known As: Clipsal 56 Series Key Lock Switch, Clipsal 56 Series Rotary Switch
- Rated operational voltage: 250 V AC 50 Hz
- Rated current: 20 A
- Control type: Rotary knob
- Device mounting: Surface
- Material: Polycarbonate (PC)
- Breaking capacity: 20 kA
- Rated impulse withstand voltage: 4 kV
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 112mm x 101mm
- Weight: 0.6 kg
- 1-pole switch with a common key lock for secure operation.
- IP66 rated for protection against dust and water ingress.
- Rated for 250VAC and 20A, suitable for heavy-duty applications.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control applications in various sectors
- Commercial: Small commercial and utility installations
- Complies with AS/NZS 3133 for electrical installations.
- Compliant with RoHS directives, reducing harmful substances in the environment.
1 year warranty against manufacturing defects.
The Clipsal 56 Series Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring secure control.
