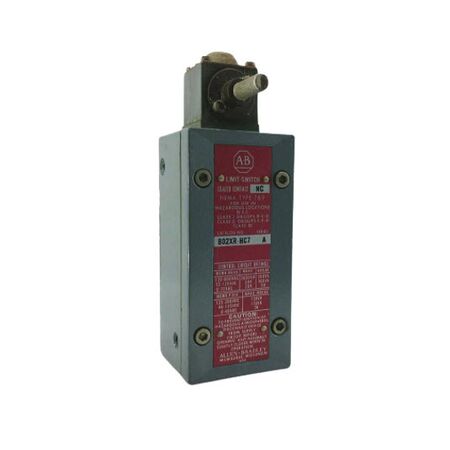

Rotary Lever Arm Limit Switch | NEMA 7 & 9 Rated | Metal Construction | @Each by Allen-Bradley
The Rotary Lever Arm Limit Switch is designed for hazardous locations, featuring NEMA 7 & 9 ratings for safety and reliability. With a durable metal construction and a rotary lever arm with spring return, it ensures precise position detection in industrial automation systems. Ideal for environments requiring sealed limit switches, this switch operates in both clockwise and counterclockwise directions, making it versatile for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: 802XRHC7
- Type: Full switch (head and body)
- Operation: Rotary lever arm, spring return, snap acting
- Circuits: 2 circuits, 1 normally open (NO)
- Torque: 4.5 lb-in
- Conduit Entry: 1/2 inch NPT
- Operation Direction: Clockwise and counterclockwise
- Enclosure Rating: NEMA 7 & 9 for hazardous locations
- Material: Metal
- Dimensions (H x L x W): 120mm x 60mm x 80mm
- Weight: 0.5 kg
Key Features
- Sealed for hazardous locations (NEMA 7 & 9 rated)
- Rotary lever arm with spring return and snap acting mechanism
- Two circuits with 1 normally open contact
- Conduit entry: 1/2 inch NPT
- Low angle operation capability
- Metal construction for durability
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous location equipment to ensure compliance with safety standards.
Applications
- Industrial automation control systems
- Hazardous location environments requiring sealed limit switches
- Machinery requiring rotary lever arm position detection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Sealed design prevents contamination, reducing environmental hazards
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802XRHC7 Rotary Lever Arm Limit Switch is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for hazardous location industrial applications.
