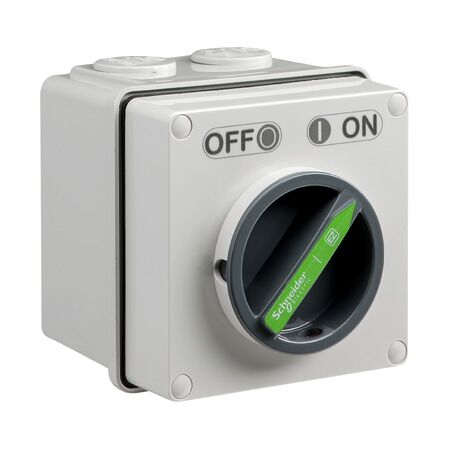

Rotary Switch 1P 20A 250V IP66 Rated Isolation Clipsal

BRAND: Clipsal
SKU: SCHEY56SW120
$37.80 List price: $47.20
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Rotary Switch Rated Isolation Suitable features 250V AC 50Hz, 20A and 2.5kV. IP66 rated for protection against dust and water. Ideal for small commercial.
Technical Specifications
  • Rated operational voltage: 250 V AC 50 Hz
  • Rated operational current: 20 A (AC-21A) at 250 V AC
  • 20 A (AC-23A) at 250 V AC
  • Screw terminals for cables 1-16 mm²
  • Rated impulse withstand voltage: 2.5 kV
  • Rated short-circuit making capacity: 1 kA at 250 V AC
  • Rated short-time withstand current: 1.5 kA at 250 V for 1 s
  • Breaking capacity: 0.2 kA at 250 V (AC-21A)
  • 0.2 kA at 250 V (AC-23A)
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 101mm x 101mm x 101mm
  • Weight: 0.471 kg
Key Features
  • Rotary knob control type
  • IP66 rated for protection against dust and water
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial
  • Industry
  • Utility
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
  • Compliant with RoHS directives and mercury-free.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 Switch 1P 20A 250V is available now for immediate purchase. Ideal for small commercial and industrial applications.

EY56SW120 (EY56SW120, 213 Kb) [Download]
