Trade Discount 33%

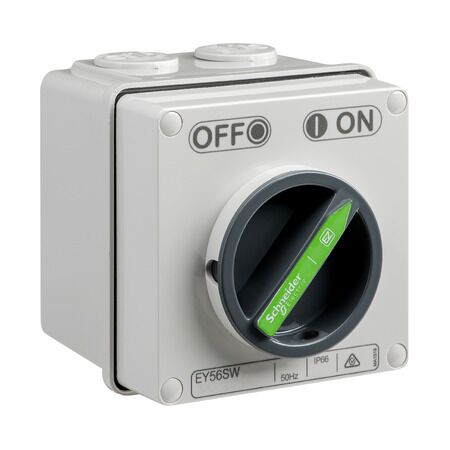

Rotary Switch 1P 32A 250V | IP66 Rated | Isolation Ready by Clipsal
Rotary switch with 1P 32A 250V capacity and IP66 rating—ideal for industrial and small commercial applications. Built for durability, with isolation capability and rotary knob control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Easy56, Switch, 1P, 32A, 250V
Brand: Clipsal
SKU: EY56SW132
Alternatively Known As: Easy56 Switch, Clipsal Rotary Switch, 32A Switch
Technical Specifications
- Rated operational voltage: 250 V AC 50 Hz
- Rated operational current: 32 A (AC-21A) at 250 V AC
- Rated operational current: 32 A (AC-23A) at 250 V AC
- Screw terminals for cables 1-16 mm²
- Rated impulse withstand voltage: 2.5 kV
- Rated short-circuit making capacity: 1 kA at 250 V AC
- Rated short-time withstand current: 1.5 kA at 250 V for 1 second
- Breaking capacity: 0.2 kA at 250 V (AC-21A)
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
Key Features
- Rotary knob control type
- IP66 rated for protection against dust and water
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Utility and small commercial applications
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529
Environmental Benefits
- Compliant with RoHS directives and mercury-free
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Easy56 Switch 1P 32A 250V is available now for immediate purchase. Ideal for industrial and small commercial applications.
