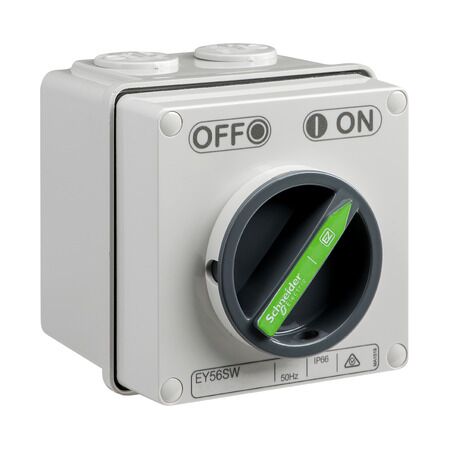

Rotary Switch 1P 32A 250V IP66 Rated Isolation Ready Clipsal

BRAND: Clipsal
SKU: SCHEY56SW132
$46.00 List price: $57.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Rotary Switch Rated Isolation Ready features 250V AC 50Hz, 32A and 2.5kV. IP66 rated for protection against dust and water.
Technical Specifications
  • Rated operational voltage: 250 V AC 50 Hz
  • Rated operational current: 32 A (AC-21A) at 250 V AC
  • Rated operational current: 32 A (AC-23A) at 250 V AC
  • Screw terminals for cables 1-16 mm²
  • Rated impulse withstand voltage: 2.5 kV
  • Rated short-circuit making capacity: 1 kA at 250 V AC
  • Rated short-time withstand current: 1.5 kA at 250 V for 1 second
  • Breaking capacity: 0.2 kA at 250 V (AC-21A)
  • Dimensions (H x L x W): 101mm x 101mm x 101mm
  • Weight: 0.471 kg
Key Features
  • Rotary knob control type
  • IP66 rated for protection against dust and water
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Utility and small commercial applications
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529
Environmental Benefits
  • Compliant with RoHS directives and mercury-free
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 Switch 1P 32A 250V is available now for immediate purchase. Ideal for industrial and small commercial applications.

EY56SW132 (EY56SW132, 216 Kb) [Download]
