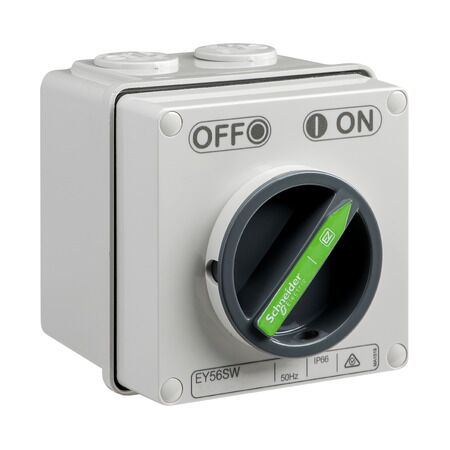

Product Name/Title: Easy56, Switch, 3P, 10A, 500V
Brand: Clipsal
SKU: EY56SW310
Alternatively Known As: Easy56 Switch, Clipsal Rotary Switch, 3 Pole Switch
- Rated operational voltage: 500V AC 50Hz
- Rated operational current: 10A (AC-21A and AC-23A)
- Control type: Rotary knob
- Connections: Screw terminals for cables 1-16 mm²
- Rated impulse withstand voltage: 2.5 kV
- Breaking capacity: 0.2 kA at 500V
- Suitability for isolation: Yes
- Dimensions (H x L x W): 101mm x 101mm x 101mm
- Weight: 0.471 kg
- Rotary knob control type for easy operation.
- IP66 rated for protection against dust and water.
- Rated operational voltage of 500V AC and current of 10A.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Suitable for small commercial and utility applications.
- Complies with AS/NZS 3133 and AS 60529 for safety and performance.
- Compliant with RoHS directives and free from mercury.
Standard warranty applies.
The Clipsal Easy56 3P Switch 10A 500V is available now for immediate purchase. Ideal for industrial and commercial applications.
