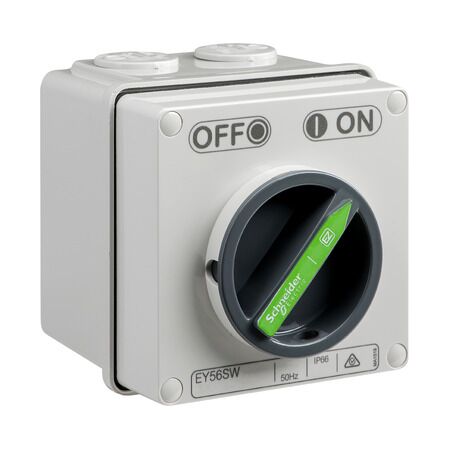

Rotary Switch 3P 10A 500V IP66 Rated Clipsal

BRAND: Clipsal
SKU: SCHEY56SW310
$52.60 List price: $65.50
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Rotary Switch Rated features 500V AC 50Hz, 10A and Rotary knob. IP66 rated for protection against dust and water.
Technical Specifications
  • Rated operational voltage: 500V AC 50Hz
  • Rated operational current: 10A (AC-21A and AC-23A)
  • Control type: Rotary knob
  • Connections: Screw terminals for cables 1-16 mm²
  • Rated impulse withstand voltage: 2.5 kV
  • Breaking capacity: 0.2 kA at 500V
  • Suitability for isolation: Yes
  • Dimensions (H x L x W): 101mm x 101mm x 101mm
  • Weight: 0.471 kg
Key Features
  • Rotary knob control type for easy operation.
  • IP66 rated for protection against dust and water.
  • Rated operational voltage of 500V AC and current of 10A.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for small commercial and utility applications.
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives and free from mercury.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Easy56 3P Switch 10A 500V is available now for immediate purchase. Ideal for industrial and commercial applications.

EY56SW310 (EY56SW310, 216 Kb) [Download]
